GNSS 2000-FME

Active Receiving Antenna for the GPS, GLONASS, BEIDOU and GALILEO

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GNSS 2000-FME

Quickly identify the correct ordering code.

GNSS 2000-FME
Electrical
Model GNSS 2000-FME
Environmental
Operating temperature range -50 °C to +70 °C
Ingress Protection IP69
Impact Protection IK10
Mechanical
Compliance ECE R118.02 approved cable
Connection(s) FME male or TNC female, see ordering designations
Materials Cu-nite brass, seawater resistant
Lexan
Installation Torque 8.5 ±1 Nm
Colour Black or white, see ordering designations
Historic Brand Amphenol Procom
Dimensions 55 mm dia.
Height 16 mm / 0.63 in.
Outer height:
26.5 mm / 1.04 in. total (FME)
38 mm / 1.50 in. total (TNC)
Weight Approx. 0.12 kg / 0.26 lb.
Mounting 14 mm / 0.55 in. dia. hole
Mounting Plate Thickness 0.7 – 4.5 mm / 0.03 – 0.18 in.
  • Flat-pack GNSS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-hand circular polarization (RHCP).
  • Available in black or white, see model survey.
  • 3 V – 15 V supply voltage.
  • DC supply via RF-connector.
  • EMC tested acc. to EN 301 489-1.
  • Provided with FME-male or TNC-female connector.
  • Wide range of FME-accessories available.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

GNSS 2000-FME-B

 112000099 Black, 1xGNSS w. FME(m)

GNSS 2000-FME-W

 112000100 White, 1xGNSS w. FME(m)

GNSS 2000-TNC-B

 112000101 Black, 1xGNSS w. TNC(f)

GNSS 2000-TNC-W

 112000102 White, 1xGNSS w. TNC(f)

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

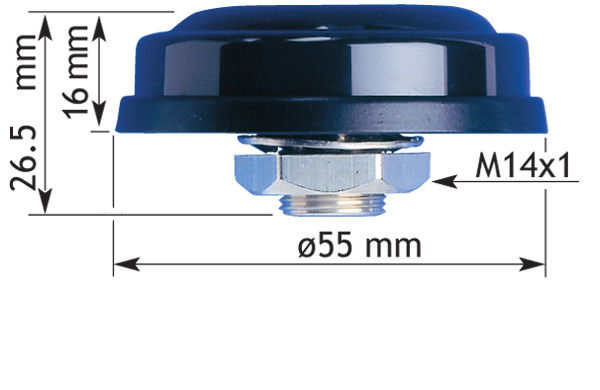

FME-Version

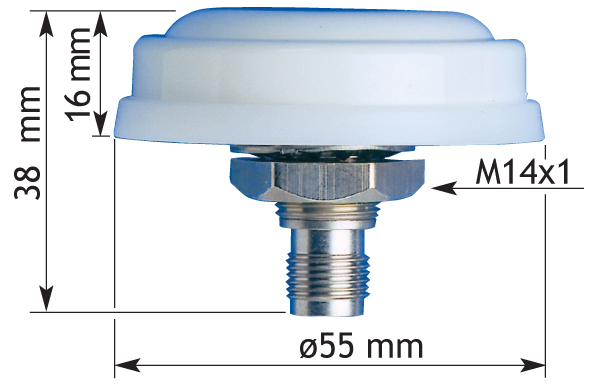

TNC-Version

Mounting

The gasket should be entirely supported by the mounting plane.

Do not use sealer on rubber gasket or other places.

Accessories

Stainless steel angle bracket for fixation of GPS 2000 FME… antennas. (To be ordered separately: MB 2000 clamp). Not recommended for GPS 2000 FME…-P0.15 types.

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GNSS 2000 FME is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
