GNSS 2000 QM

Active Receiving Antenna for the GPS, GLOMASS, BEIDOU and GALILEO

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

Awaiting product image

Quickly identify the correct ordering code.

GNSS 2000 QM
Electrical
Model GNSS 2000 QM
Environmental
Operating temperature range -50 °C to +70 °C
Ingress Protection IP69
Impact Protection IK10
Mechanical
Compliance ECE R118.02 approved cable
Connection(s) 0.3 m RG 316 permanently attached cable with Different connector available, see nomenclature.
Materials Cu-nite brass, seawater resistant
Lexan
Installation Torque 8.5 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Dimensions 55 mm dia.
Height 27 mm / 1.22 in. total for P0.15 models
Weight Approx. 0.12 kg / 0.26 lb.
Mounting 10 – 16 mm / 0.40 – 0.63 in. dia. hole
Mounting Plate Thickness 0.7 – 4.5 mm / 0.03 – 0.18 in.
  • Flat-pack GNSS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-hand circular polarization (RHCP).
  • 3 V – 15 V supply voltage.
  • DC supply via RF-connector.
  • EMC tested acc. to EN 301 489-1.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

GNSS 2000 QM-S

 112000115 GNSS 2000 QM-S

GNSS 2000 QM-F

 112000116 GNSS 2000 QM-F

GNSS 2000 QM-FC

 112000117 GNSS 2000 QM-FC

GNSS 2000 QM-P5-S

 112000118 GNSS 2000 QM-P5-S

GNSS 2000 QM-P5-F

 112000119 GNSS 2000 QM-P5-F

GNSS 2000 QM-P5-FC

 112000120 GNSS 2000 QM-P5-FC

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Mounting Details

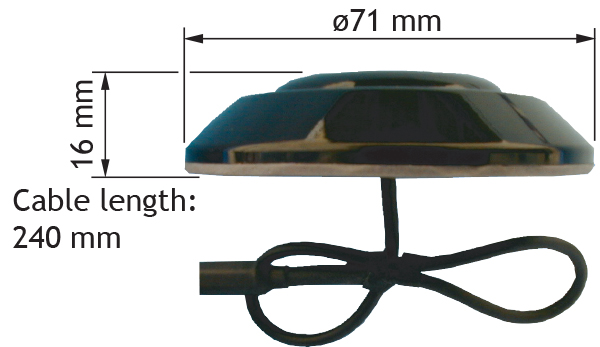

GNSS 2000 QM dimension GB

1. Before Installation
  • Environmental and car temperature must be above 15 ºC at installation, and installation surface must be dry and clean.

Nomenclature
Model NameCable lengthConnectors
GNSS 2000 QM Blank (approx. 0.3 m / 1 ft. cable length)
-P5 (5 m / 16.4 ft. cable length)		 -S (SMA-M)
-FME (FME-M)
-FAKRA (on request)
2. Installation

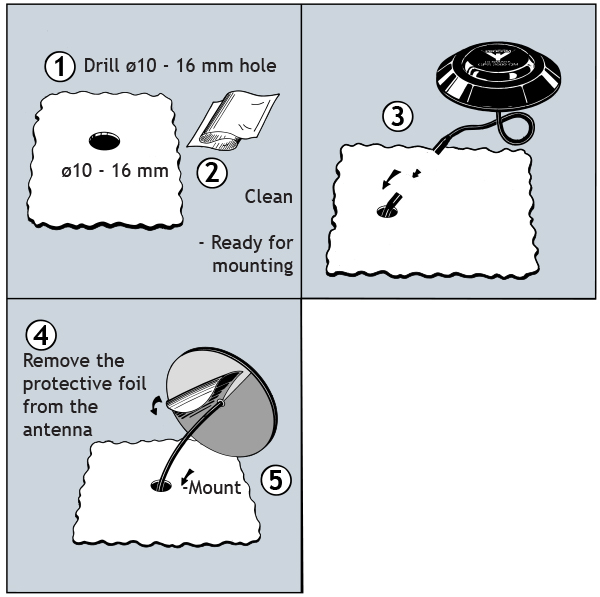

GNSS 2000 QM install GB

Do not use sealer on rubber gasket or other places.

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GNSS 2000 QM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GNSS 2000 QM.pdf
