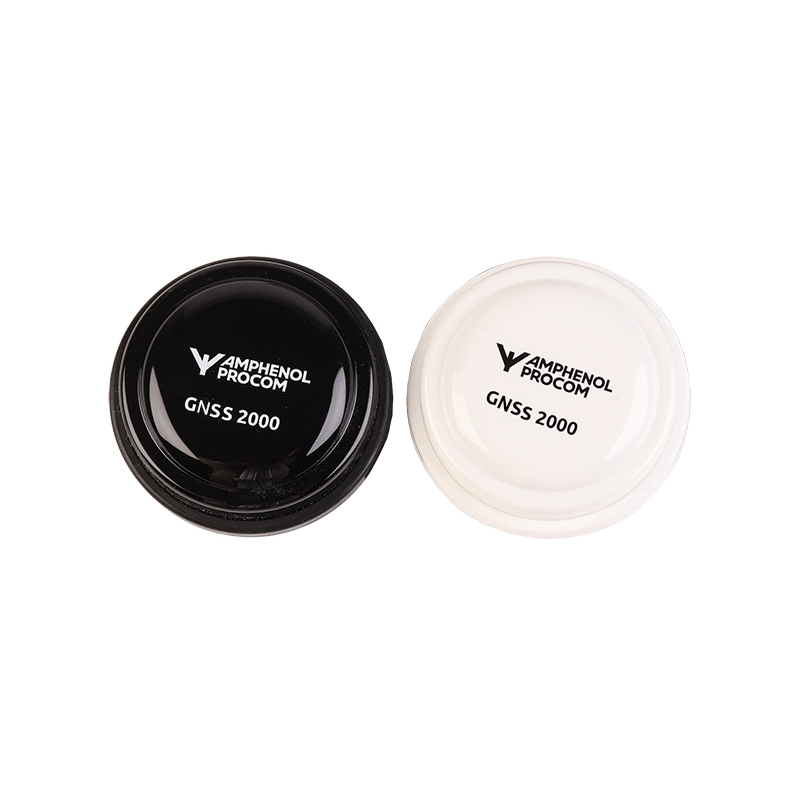

GNSS 2000

Active Receiving Antenna for the GPS, GLONASS, BEIDOU and GALILEO

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GNSS 2000

Quickly identify the correct ordering code.

GNSS 2000
Electrical
Model GNSS 2000
Environmental
Operating temperature range -50 °C to +70 °C
Ingress Protection IP69
Impact Protection IK10
Mechanical
Compliance ECE R118.02 approved cable
Connection(s) 0.3 m RG 316 permanently attached cable with Different connector available, see nomenclature.
Materials Cu-nite brass, seawater resistant
Lexan
Installation Torque 8.5 ±1 Nm
Colour Black or white, see ordering designations
Dimensions 55 mm dia.
Height 27 mm / 1.22 in. total for P0.15 models
Weight Approx. 0.12 kg / 0.26 lb.
Mounting 14 mm / 0.55 in. dia. hole
Mounting Plate Thickness 0.7 – 4.5 mm / 0.03 – 0.18 in.
  • Flat-pack GNSS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-hand circular polarization (RHCP).
  • Available in black or white, see model survey.
  • 3 V – 15 V supply voltage.
  • DC supply via RF-connector.
  • EMC tested acc. to EN 301 489-1.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

GNSS 2000-B-S

 112000103 Black, 1xGNSS w. 0.3m SMA(m)

GNSS 2000-W-S

 112000104 White, 1xGNSS w. 0.3m SMA(m)

GNSS 2000-B-F

 112000105 Black, 1xGNSS w. 0.3m FME(m)

GNSS 2000-W-F

 112000106 White, 1xGNSS w. 0.3m FME(m)

GNSS 2000-B-FC

 Contact_122 Black, 1xGNSS w. FAKRA C(f)

GNSS 2000-W-FC

 Contact_123 White, 1xGNSS w. FAKRA C(f)

GNSS 2000-B-P5-S

 112000109 Black, 1xGNSS w. 0.3m SMA(m), 5m AP195 Extension cable

GNSS 2000-W-P5-S

 112000110 White, 1xGNSS w. 0.3m SMA(m), 5m AP195 Extension cable

GNSS 2000-B-P5-F

 112000111 Black, 1xGNSS w. 0.3m FME(m), 5m AP195 Extension cable

GNSS 2000-W-P5-F

 112000112 White, 1xGNSS w. 0.3m FME(m), 5m AP195 Extension cable

GNSS 2000-B-P5-FC

 Contact_124 Black, 1xGNSS w. 0,3m FAKRA C(f), 5m AP195 Extension cable

GNSS 2000-W-P5-FC

 Contact_125 White, 1xGNSS w. 0,3m FAKRA C(f), 5m AP195 Extension cable

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

GNSS 2000 model

GNSS 2000 BLUE

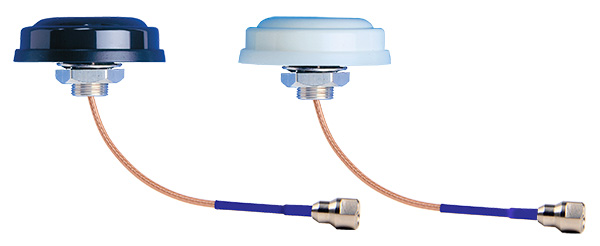

Models with permanently attached cable

GNSS 2000 BLUE MÅL

Mounting

The gasket should be entirely supported by the mounting plane.

Do not use sealer on rubber gasket or other places.

Nomenclature
Model NameCover colorCable lengthConnectors
GNSS 2000 -W (White)
-B (Black) 		Blank (approx. 0.3 m / 1 ft. cable length)
-P5 (5 m / 16.4 ft. cable length)		 -S (SMA-M)
-FME (FME-M)
-FAKRA (on request)
Accessories

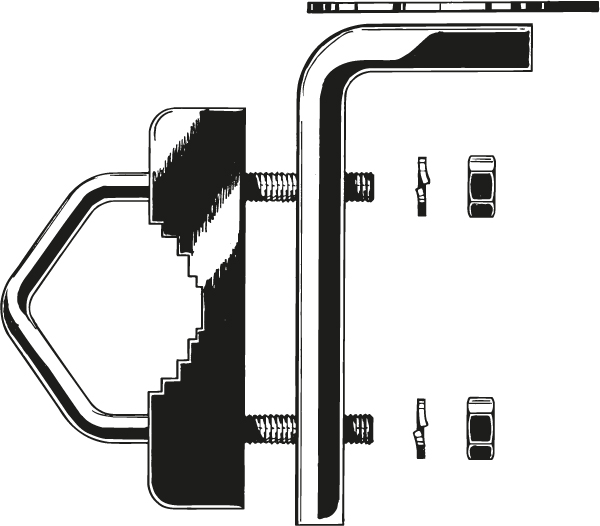

Stainless steel angle bracket for fixation of GNSS 2000… antennas. (To be ordered separately: MB 2000 clamp). Not recommended for GNSS 2000…-P0.15 types.

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GNSS 2000 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GNSS 2000.pdf
