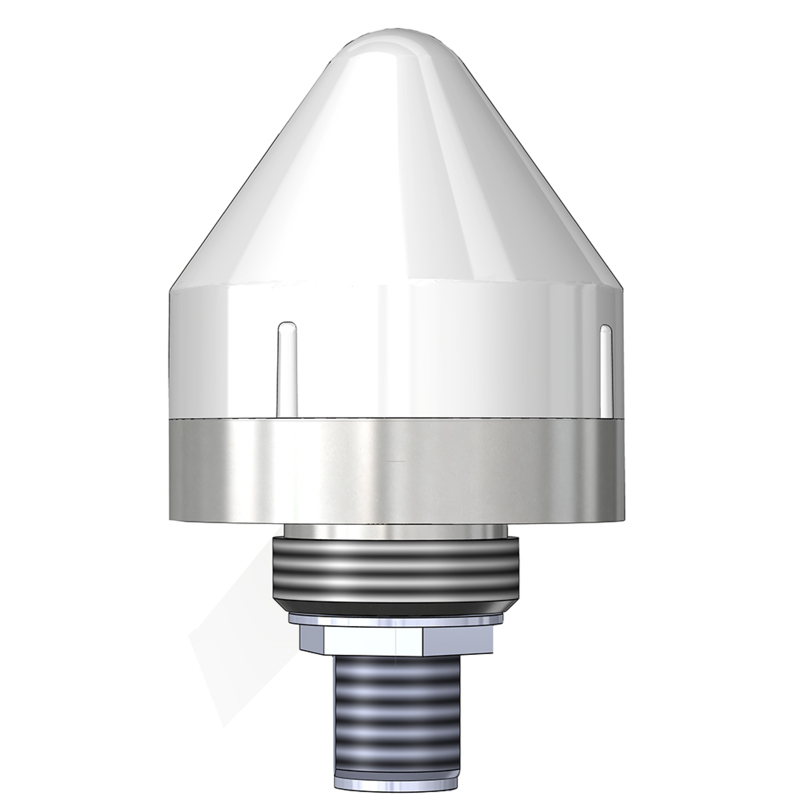

GNSS 2020

Active Receiving Antenna for the GPS, GLONASS, BEIDOU and GALILEO

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GNSS 2020

Quickly identify the correct ordering code.

GNSS 2020
Electrical
EMC Full protection (EN 301 489-1)
Power Supply 3 – 15 V DC
Model GNSS 2020
Frequency 1559 – 1610 MHz
Antenna Type Patch Antenna
Polarisation RHCP
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain 31 dBic (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP67
Mechanical
Insulation Connector ground terminal galvanically insulated from the mounting hardware
Antenna Colour White (RAL 9010)
Wind Area 0.0045 sq. m / 0.05 sq. ft.
Connection(s) N(f)
Materials Antenna dome : Weather-resistant low-loss plastic
Historic Brand Amphenol Procom
Height Approx. 84 mm / 3.3 in.
Wind Load Approx. 3.7 N @ 160 km/h / 99.42 mph.
Diameter 50 mm / 1.97 in.
Weight Approx. 0.25 kg / 0.55 lb.
Mounting Vertical on pipe mast ø 25 – 33 mm / 1.00 – 1.30 in.
on a mounting bracket 35 – 55 mm / 1.38 – 2.17 in.
  • Full hemispherical coverage for the GNSS.
  • Built-in high gain, low noise amplifier.
  • Input filter for thorough RF-overload protection.
  • Right-hand circular polarization (RHCP).
  • 3 V – 15 V supply voltage.
  • DC supply via RF-connector.
  • Total design carried out to make the antenna withstand tough environments.
  • Comprehensive range of accessory mounting brackets available.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

GNSS 2020

 112000093 Bracket w. clamps

GNSS 2020-1"

 112000094 1″ Mount

Login required

You need to be logged in into your account to view downloadable documents.

Dimensions

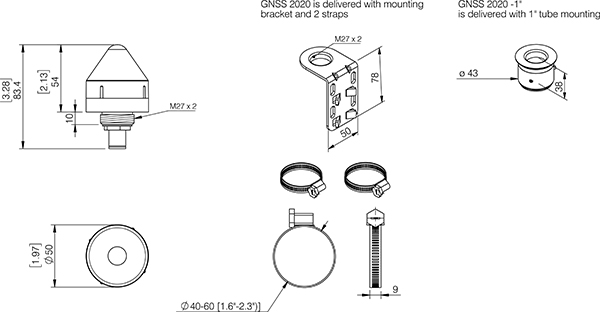

GNSS 2020 Dimensions

Mounting Details

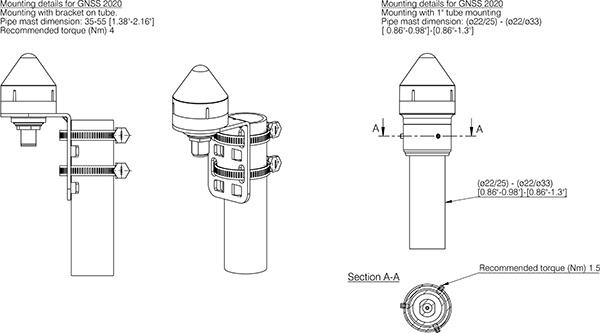

GNSS 2020 mounting details
