colinear, 3 dBd Ground-Plane Base Station and Marine Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GP 450-3/...

Quickly identify the correct ordering code.

GP 450-3/…
Electrical
Model GP 450-3/…
Frequency Tunable by cutting within :
l : 380 – 410 MHz
h : 406 – 470 MHz
Antenna Type Collinear ground-plane antenna
Max. Input Power 250 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
Bandwidth 10 MHz @ VSWR < 1.5
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Wind Area 0.0131 sq. m / 0.14 sq. ft
Connection(s) N(f)
Materials Bright polished stainless steel.
Bright chromed brass. Weather- and shockproof plastics
Colour Metallic Silver
Historic Brand Amphenol Procom
Height Approx. 730 mm / 28.74 in.
Wind Load 17 N (160 km/h)
Dia. At Top End 2 mm / 0.08 in.
Weight Approx. 0.78 kg / 1.72 lb.
Dia. At Bottom End 3 mm / 0.12 in.
Mounting On 27 mm / 1.06 in. dia. mast tube
  • The high gain of this antenna combined with its low height makes it the right choice for a wide variety of purposes.
  • The antenna is delivered in two models tunable by cutting within 380…410 MHz (l-version) and 406…470 MHz (h-version), respectively.
  • The GP 450-3/… is especially suitable as a marine antenna in connection with 450 MHz cellular radio telephone systems making it possible to extend the normally land-based cellular system for maritime mobile service as well.
  • The compactness of the GP 450-3/… also makes it highly qualified as a base station antenna.
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel to or in the neighbourhood of other metal parts such as masts, supporting wires etc., otherwise the VSWR and the radiation pattern may be influenced.
  • The antenna is easily field-tuned following the instructions below, or it can be ordered factory-tuned for CELLULAR or customer-specified frequencies. See ordering information below.
  • Materials used are 18/8 stainless steel, UV-stabilized plastic and triple-plated chromed brass.
  • PLEASE NOTE: The GP 450-3/… can also be delivered factory tuned to a specific frequency or cellular network, such as TETRA. In this case, please add frequency or name of the network to the antenna model, e.g. GP 450-3/390 MHz.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

GP 450-3/l

 100000134 Tunable within 380 – 410 MHz

GP 450-3/h

 100000135 Tunable within 406 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

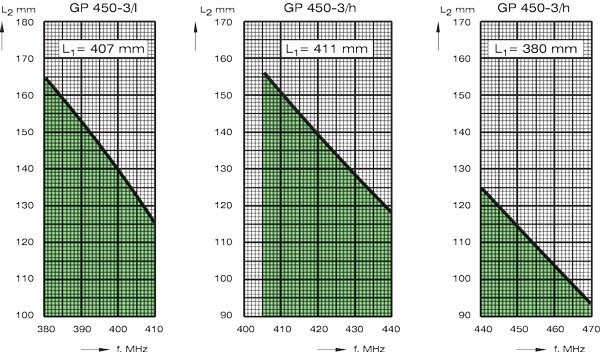

Cutting Diagram
