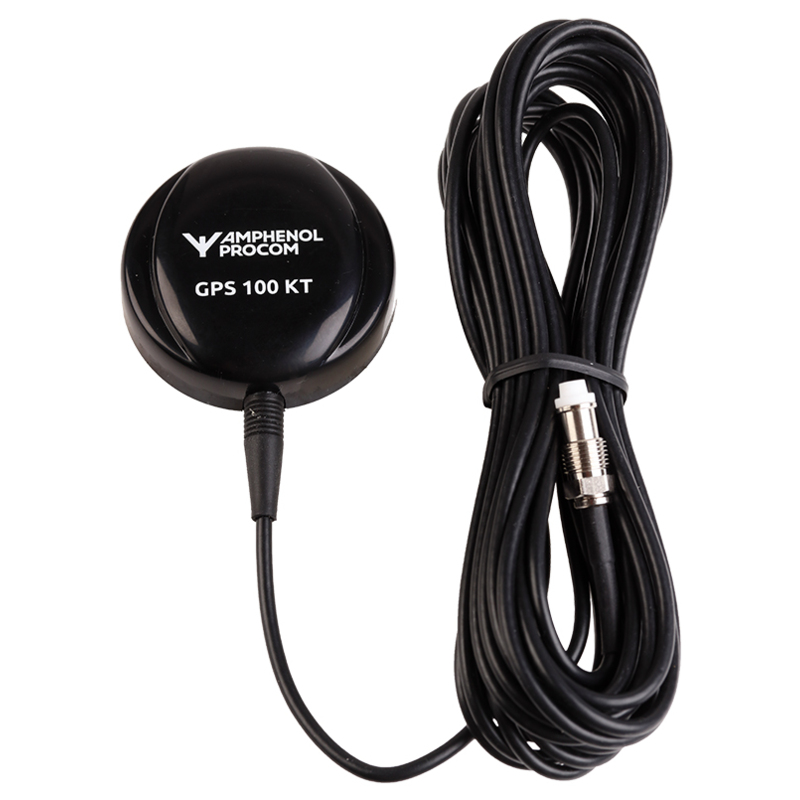

GPS 100 KT-FME

Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Landmobile and Maritime Use

Find Out More
Data Sheet
CE Certification

Other Files

GPS 100 KT-FME
Electrical
Model GPS 100 KT-FME
Frequency 1575 MHz
Antenna Type Active patch antenna
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain 27 dBi (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 45 dB down @ ± 45 MHz
Environmental
Operating temperature range -35 °C to +75 °C
Mechanical
Antenna Colour Black
Connection(s) FME(f)
Materials Aluminium and ABS
Cable 5 m RG 174
Historic Brand Amphenol Procom
Dimensions Approx. 50 mm dia. / 2.0 in. dia.
Height Approx. 15 mm / 0.59 in.
Weight Approx. 0.13 kg / 0.29 lb.
  • Flat-pack GPS-antenna for temporary or fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-hand circular polarization (RHCP).
  • Magnet mount – ideal for mounting on e.g. roof of car or vessel.
  • 3 V – 5 V supply voltage.
  • DC supply via RF-connector.
  • Permanently attached 5 m RG 174 coaxial cable terminated with FME (female) connector.
  • Wide range of FME-accessories available.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Landmobile and Maritime Use 112000022

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Dimensions

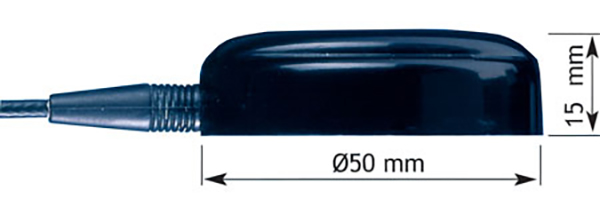

GPS 100 KT FME dim

Do not use sealer on rubber gasket or other places.

Vertical Radiation Pattern

GPS C udstraaling

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-100 KT-FME is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS100KT.pdf
