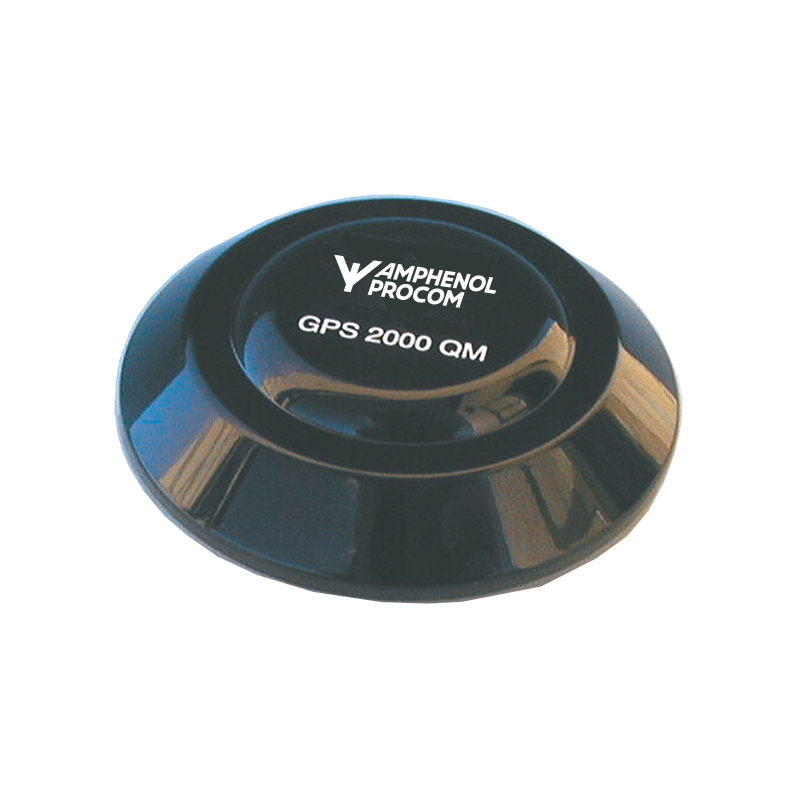

GPS 2000 QM

Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Landmobile Use

Find Out More
Data Sheet
CE Certification

Other Files

GPS 2000 QM
Electrical
Model GPS 2000 QM
Frequency 1575 MHz
Antenna Type Active patch antenna
Polarisation Circular
Impedance 50 Ω
Coverage Hemispherical
Axial Gain 28 dBi (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 45 dB down @ ± 45 MHz
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Compliance ECE R118.02 approved cable
Connection(s) FME(f)
Materials Cu-nite brass
Seawater resistant
Lexan
Colour Black
Historic Brand Amphenol Procom
Dimensions ø71 mm / 2.80 in.
Height Approx. 16 mm / 0.63 in.
Weight Approx. 0.09 kg / 0.20 lb.
Mounting 10 mm dia. hole
  • Flat-pack GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circular Polarisation (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • EMC tested to IEC 801 and IEC 255.
  • Provided with FME-female connector.
  • Wide range of FME-accessories available.
  • Double-adhesion procedure ensures fast and reliable fixing.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Landmobile Use 112000037

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Mounting Details

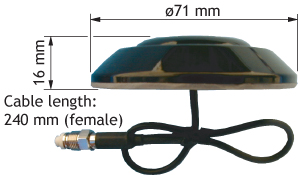

GPS-2000-qm-fri-maal-GB

1. Before Installation
  • Environmental and car temperature must be above 15 ºC at installation, and installation surface must be dry and clean.
2. Installation

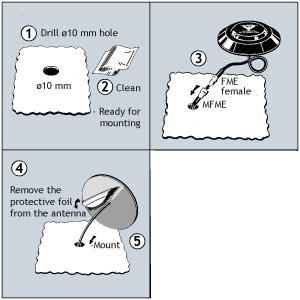

GPS-2000-qm-instal-GB
