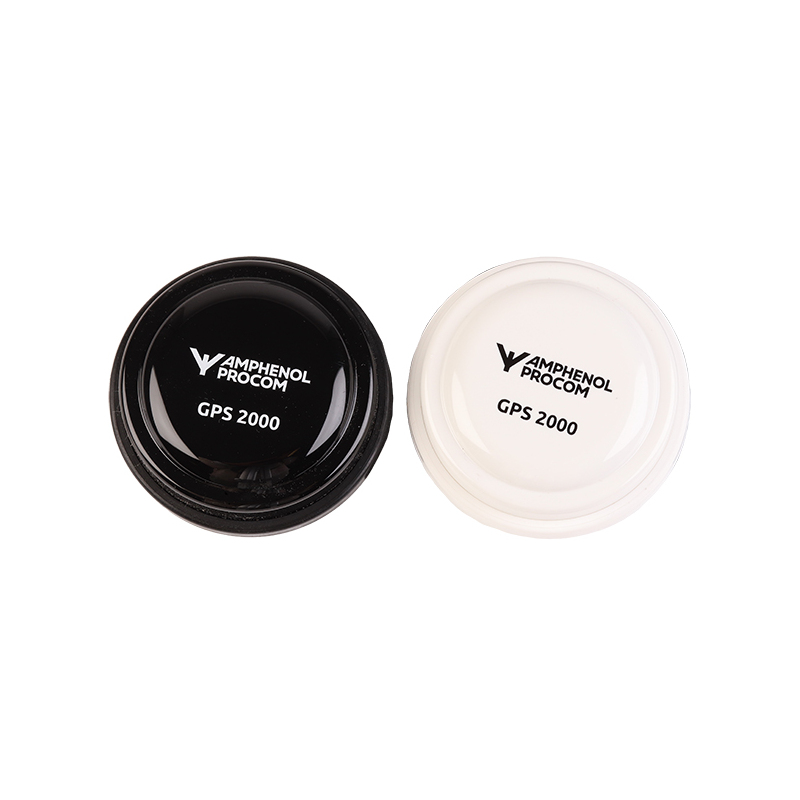

GPS 2000 – Discontinued and replaced by the GNSS 2000

Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System for Maritime and Landmobile Use

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GPS 2000 - Discontinued and replaced by the GNSS 2000

Quickly identify the correct ordering code.

GPS 2000 – Discontinued and replaced by the GNSS 2000
Electrical
Model GPS 2000
Frequency 1575 MHz
Antenna Type Active patch antenna
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain 28 dBi (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 45 dB down @ ±45 MHz
Environmental
Operating temperature range -50 °C to +70 °C
Mechanical
Compliance ECE R118.02 approved cable
Connection(s) FME male, TNC female or models with 0.15 m RG 316 permanently attached cable with FME (male) connector, see ordering designations
Materials Cu-nite brass, seawater resistant
Lexan
Installation Torque 8.5 ±1 Nm
Colour Black or white, see ordering designations
Historic Brand Amphenol Procom
Dimensions 55 mm dia.
Height 16 mm / 0.63 in.
Outer height:
26.5 mm / 1.04 in. total (FME)
38 mm / 1.50 in. total (TNC)
27 mm / 1.22 in. total for P0.15 models
Weight Approx. 0.12 kg / 0.26 lb.
Mounting 14 mm / 0.55 in. dia. hole
Mounting Plate Thickness 0.7 – 4.5 mm / 0.03 – 0.18 in.
  • Flat-pack GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-hand circular polarization (RHCP).
  • Available in black or white, see model survey.
  • 5 V or 3 V supply voltage (12 V available on request).
  • DC supply via RF-connector.
  • EMC tested to IEC 801 and IEC 255.
  • Provided with FME-male, TNC-female connector, or models with permanently attached 0.15 m cable with FME-male connector, see model survey.
  • ECE R118.02 approved cable.
  • Wide range of FME-accessories available.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

GPS 2000B-FME-5V

 112000026 Black

GPS 2000B-FME-3V

 112000029 Black

GPS 2000W-FME-5V

 112000024 White

GPS 2000W-FME-3V

 112000023 White

GPS 2000B-TNC-5V

 112000028 Black

GPS 2000B-TNC-3V

 112000032 Black

GPS 2000W-TNC-5V

 112000027 White

GPS 2000W-TNC-3V

 112000019 White

GPS 2000B-P0.15-5V

 112000072 Black

GPS 2000B-P0.15-3V

 112000074 Black

GPS 2000W-P0.15-5V

 112000071 White

GPS 2000W-P0.15-3V

 112000073 White

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

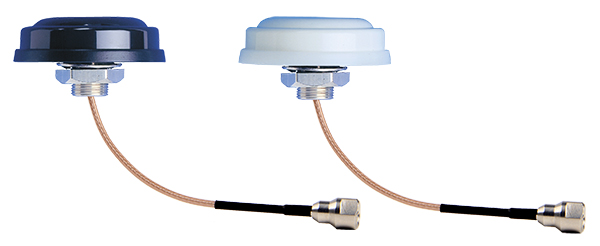

GPS 2000B-P0.15 and GPS 2000W-P0.15

GPS 2000B P015 GPS 2000W P015

FME-Version

TNC-Version

Models with permanently atteched cable

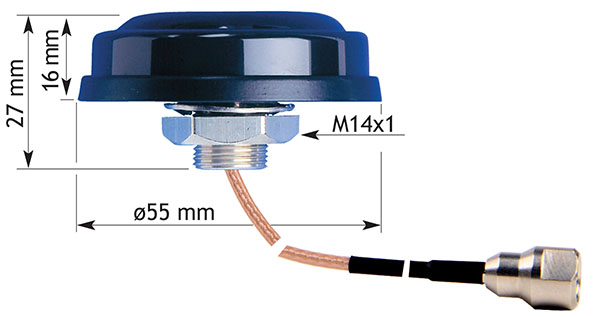

GPS 2000B P0.15 Dimension

Mounting

The gasket should be entirely supported by the mounting plane.

Do not use sealer on rubber gasket or other places.

Accessories

Stainless steel angle bracket for fixation of GPS 2000… antennas. (To be ordered separately: MB 2000 clamp). Not recommended for GPS 2000…-P0.15 types.

Typical response curves

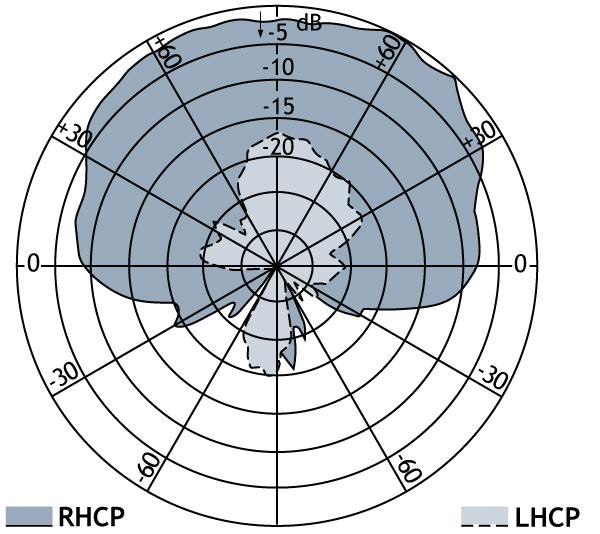

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS 2000 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
