Active Receiving Antenna for the 1575 MHz NAVSTAR GPS Satellite Navigational System

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GPS 4/...

Quickly identify the correct ordering code.

GPS 4/…
Electrical
EMC Full protection (IEC 801, IEC 255)
Model GPS 4/…
Frequency 1575 MHz
Antenna Type Quadrifilar helix active antenna
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain > 32 dBi
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 20 dB down @ ±100 MHz
Environmental
Operating temperature range -50 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56 (IP66 on request)
Mechanical
Insulation Connector ground terminal galvanically insulated from the mounting hardware
Antenna Colour Marine white or black
Wind Area 0.0072 sq. m / 0.08 sq. ft
Connection(s) FME(m) (pin) – (can be supplied with TNC(f) upon request)
Materials Antenna dome: Weather-resistant low-loss plastic
Historic Brand Amphenol Procom
Suggested Cable < 10 m: RG 58
10 – 30 m: RG 213
Height Approx. 230 mm / 9.06 in.
Wind Load Approx. 9.6 N @ 150 km/h
Diameter 33 mm / 1.30 in.
Weight Approx. 0.15 kg / 0.33 lb.
Mounting Vertical on 1″ water pipe or on PROCOM 1″ mounting brackets (see accessories)
  • Full hemispherical coverage due to quadrifilar helix antenna element.
  • Built-in high gain, low noise amplifier.
  • Input filter for thorough RF-overload protection.
  • Right-hand circular polarization (RHCP).
  • High rejection of cross-polarized reflections prevents fading caused by multipath propagation.
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • EMC tested to IEC 801 and IEC 255.
  • Total design carried out to make the antenna withstand tough environments.
  • Comprehensive range of accessory mounting brackets available.
  • Colour opportunities:
  • White (Standard)
  • Black

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

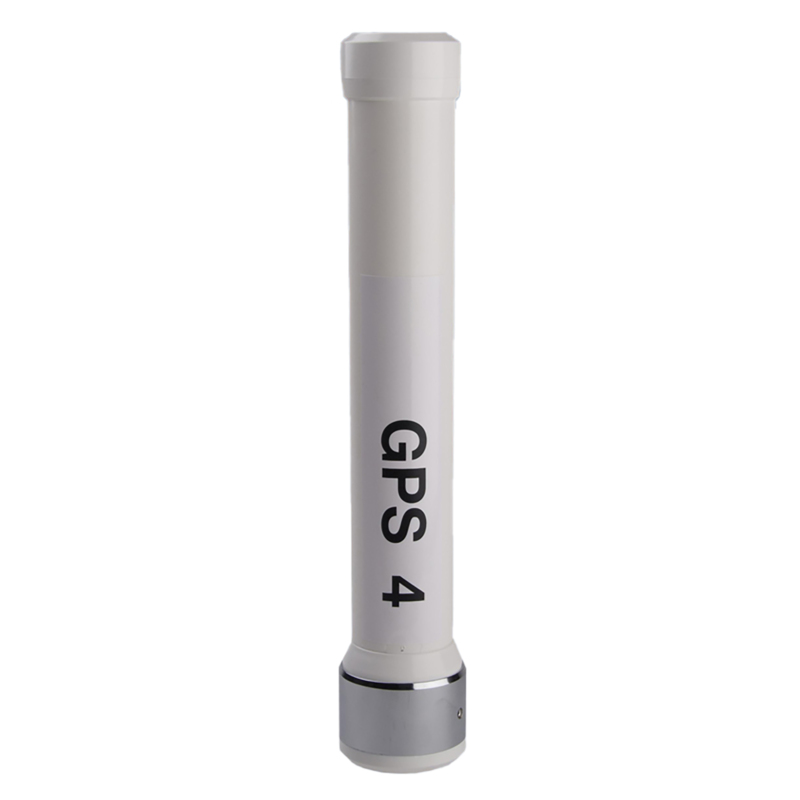

GPS 4

 112000017 5 V DC (4.5 – 5.5 V)

GPS 4/3 V

 112000015 3 V DC (3 – 3.5 V)

GPS 4/12 V

 112000016 SUPPLY VOLTAGE: 12 V DC (9 – 15 V)

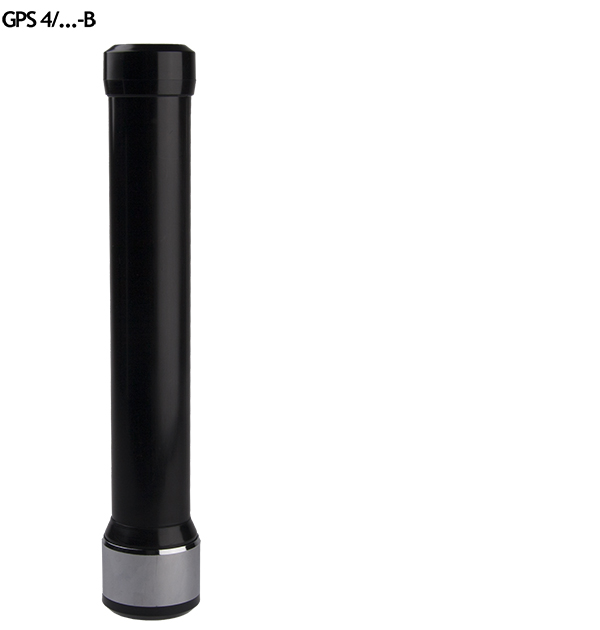

GPS 4-B

 112000065 5 V DC (4.5 – 5.5 V)

GPS 4/3 V-B

 112000067 3 V DC (3 – 3.5 V)

GPS 4/12 V-B

 112000069 SUPPLY VOLTAGE: 12 V DC (9 – 15 V)

GPS 4/5 V-TNC

 112000014 5 V DC (4.5 – 5.5 V)

GPS 4/3 V-TNC

 112000010 3 V DC (3 – 3.5 V)

GPS 4/12 V-TNC

 112000012 SUPPLY VOLTAGE: 12 V DC (9 – 15 V)

Login required

You need to be logged in into your account to view downloadable documents.

Colour opportunities

FME-System Accessories
FME-CABLES
TYPE PRODUCT NO.
1 m FME(f) 130000437
2 m FME(f) 130000447
3 m FME(f) 130000457
4 m FME(f) 130000466
5 m FME(f) 130000474
6 m FME(f) 130000483
4 m FME-white(f) 110000064
6 m FME-white(f) 110000066
12 m FME-white(f) 110000068
18 m FME-white(f) 110000069
FME-CONNECTORS
TYPE PRODUCT NO.
FME(f)-FME(f) 130000583
FME(m)-P(m)
(Prolongation)		 130000565
FME(m)-N(m) 130000571
FME(m)-FSMA
(Female-SMA)		 130000578
FME(m)-BNC(m) 130000566
FME(m)-TNC(m) 130000569
FME(m)-UHF(m) 130000572
FME(m)-MUHF(m)
(Mini-UHF)		 130000573
FME(m)-EMUHF(m)
(Elbow-MUHF)		 130000582

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.

Accessories (to be ordered separately)

Bjaelke YA acc samlet GB

Typical response curves

GPS-4-resp-kurve2-GB

GPS-4-resp-kurve1-GB

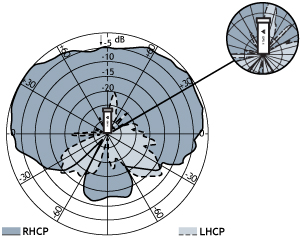

Vertical Radiation Pattern
