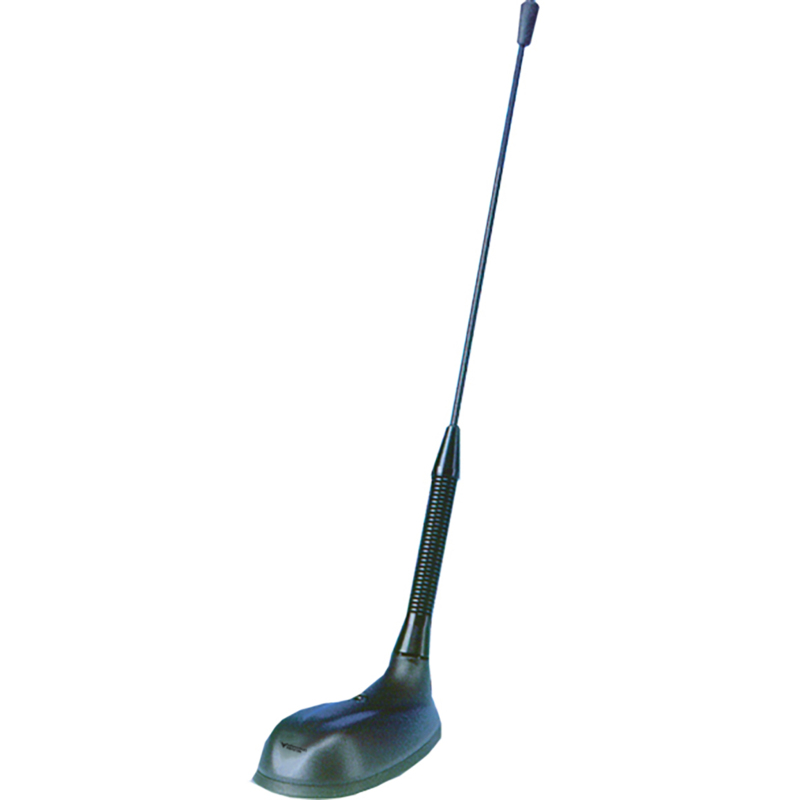

GPS Antenna with Whip with Shock Spring for the 160 MHz and 450 MHz Bands
Find Out MoreOther Files
| Electrical | |
| Model | GPS-C 2/70/FQ/FQ |
|---|---|
| Frequency | 160 MHz band: freq. to be stated within: 144…175 MHz 450 MHz band: freq. to be stated within: 380…470 MHz |
| Antenna Type | Mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Bandwidth | 160 MHz : 8 MHz @ VSWR ≤ 2.0 450 MHz : 15 MHz @ VSWR ≤ 2.0 |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip : Polyethylene covered copper thread / glass fibre Black-chromed brass Spring : Black-chromed stainless steel |
|---|---|
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 350 mm / 13.78 in. |
| Weight | Approx. 0.05 kg / 0.11 lb. |
| Mounting | On the GPS-Combi mount |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| GPS Antenna with Whip with Shock Spring for the 160 MHz and 450 MHz Bands | 132000085 |
You need to be logged in into your account to view downloadable documents.
Do not use sealer on rubber gasket or other places.
Hereby Amphenol Procom declare that the product type GPS-C 2/70/FQ/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:
https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf
