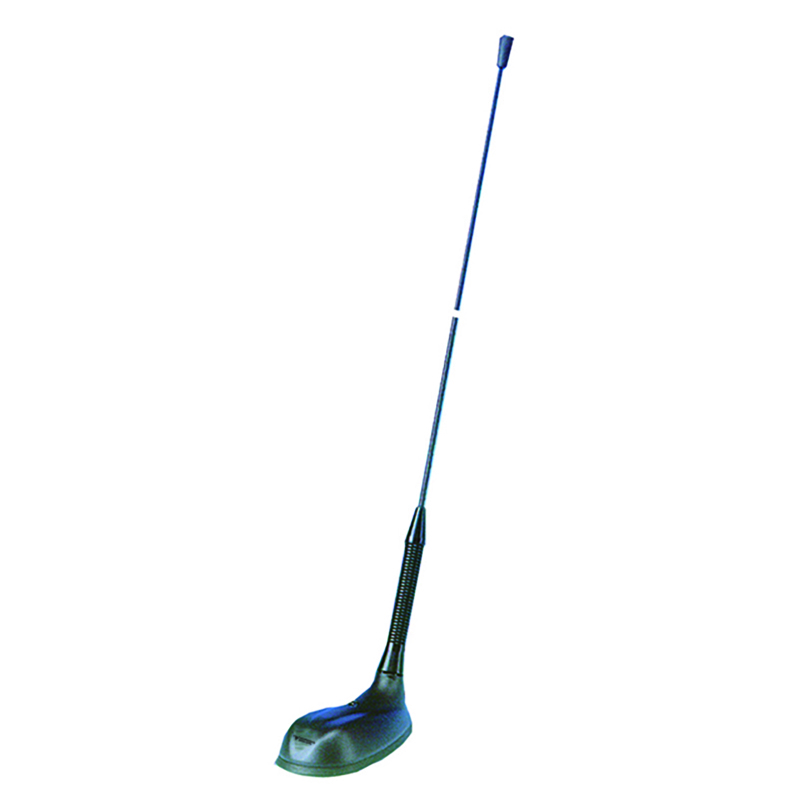

GPS-C 2R/70/FM

GPS Antenna with Whip with Shock Spring for the 160 MHz, 450 MHz and FM Bands

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C 2R/70/FM
Electrical
Model GPS-C 2R/70/FM
Frequency 2 m: 145 MHz
70 cm: 435 MHz
FM band: 88-108 MHz
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1 @ f. res.
Bandwidth 2 m: 20 MHz
70 cm: 40 MHz @ VSWR ≤ 2.0
Mechanical
Materials Whip: Black-chromed, conical stainless steel
Black-chromed brass
Mount: Weather- and shockproof plastics
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height 492 mm / 19.37 in.
Weight 0.05 kg / 0.11 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Black-chromed, conical stainless steel whip.
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • When ordering the antenna, please state the centre frequency on each band.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with Whip with Shock Spring for the 160 MHz, 450 MHz and FM Bands 132000061

Login required

You need to be logged in into your account to view downloadable documents.

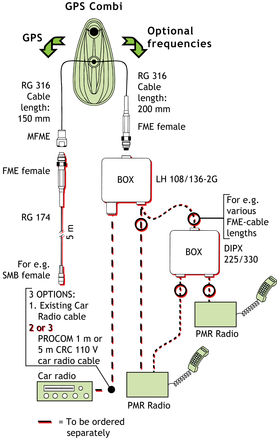

Connection Diagram

Mounting Instructions

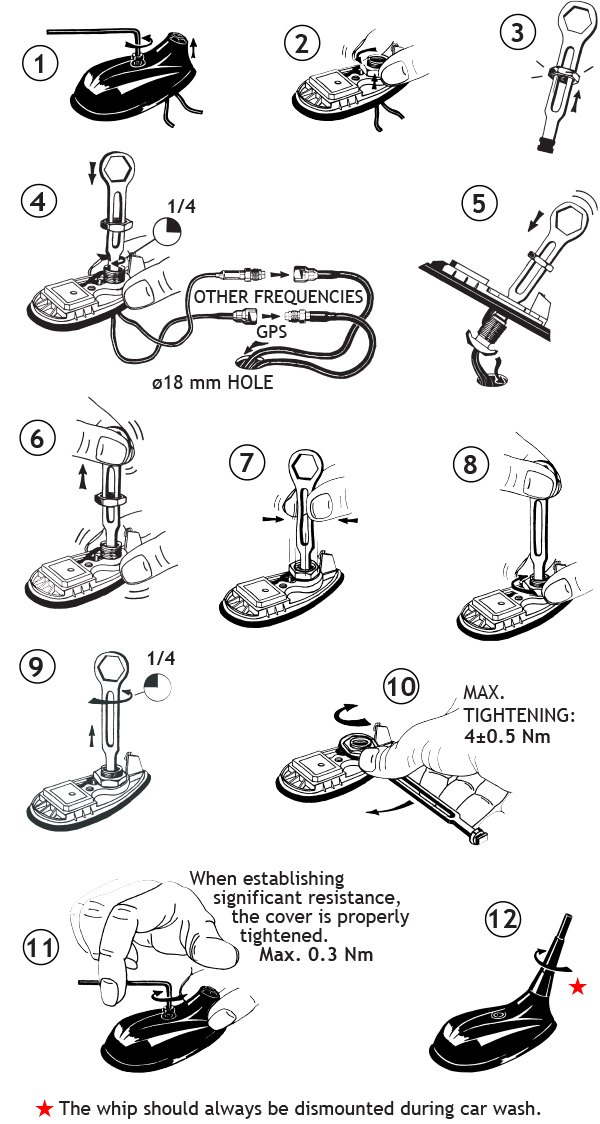

GPS C mounting instructions GB
