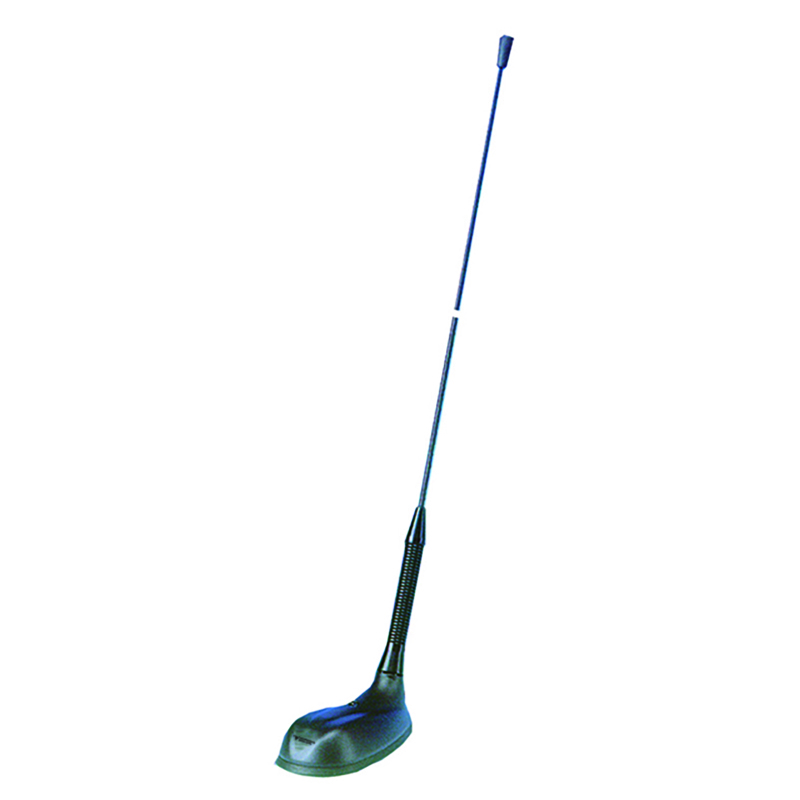

GPS-C 2R/FM/FQ

GPS Antenna with a ¼ λ Whip with Shock Spring for the 160 MHz and FM Bands

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C 2R/FM/FQ
Electrical
Model GPS-C 2R/FM/FQ
Frequency Tunable by cutting within : 144 – 175 MHz
also receives FM band (88 – 108 MHz)
Antenna Type Mobile antenna
Max. Input Power 30 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1 @ f.res.
Bandwidth 2 m : ≥ 20 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed, concial stainless steel
Black-chromed brass
Spring : Black-chromed, stainless steel
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 450 mm / 17.72 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Black-chromed, conical stainless steel whip.
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with a ¼ λ Whip with Shock Spring for the 160 MHz and FM Bands 132000062

Login required

You need to be logged in into your account to view downloadable documents.

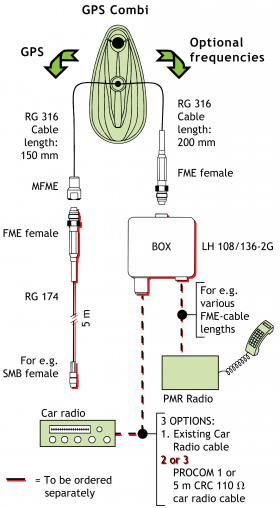

Connection Diagram

Mounting Instructions

GPS C mounting instructions GB

Do not use sealer on rubber gasket or other places

Cable Mounting

Tuning

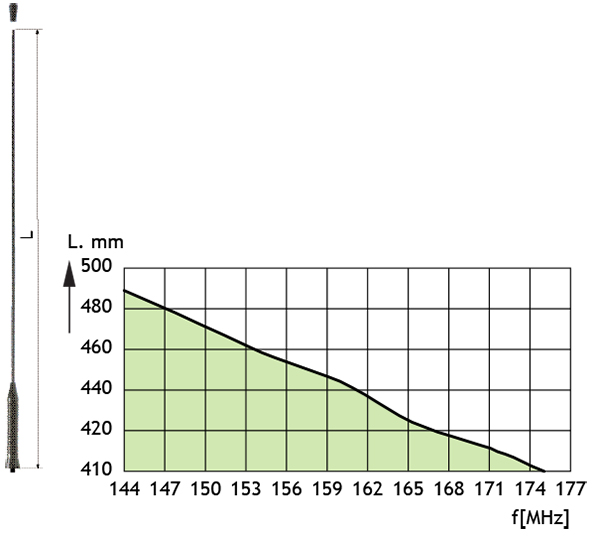

The antenna should always be tuned using an VSWR-meter. The cutting diagram below serves as a guide for this procedure.

GPS C 2R!FM!FQ Dimension VSWR

Typical response curves

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C 2R/FM/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf
