GPS-C 900/1800/UMTS/WIFI

GPS Antenna with a ¼ λ Mobile Antenna for the 900 MHz, 1800 MHz, UMTS and WIFI Bands

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C 900/1800/UMTS/WIFI
Electrical
Model GPS-C 900/1800/UMTS/WIFI
Frequency 880 – 960 MHz (EGSM)
1710 – 1880 MHz (DCS)
1900 – 2200 MHz (UMTS)
2400 – 2700 MHz (WIFI)
Antenna Type Multiband antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.5:1 @ f.res.
Bandwidth 900 MHz : ≥ 80 MHz @ VSWR ≤ 2.0:1
1700 – 2700 MHz : ≥ 1000 MHz @ VSWR ≤ 2.5:1
Gain (EIA RS-329-1) 0 dB (on all bands)
Mechanical
Materials Black-chromed brass, Black POM
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 71 mm / 2.80 in. (whip)
Weight Approx. 0.02 kg / 0.04 lb. (whip)
Mounting On the GPS-WIFI Combi Mount (whip)
  • External antenna whip mounted on the GPS-Combi mount.
  • Multiband antenna covering EGSM-900, DCS-1800, UMTS and WIFI.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular polarization (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with a ¼ λ Mobile Antenna for the 900 MHz, 1800 MHz, UMTS and WIFI Bands 132000146

Login required

You need to be logged in into your account to view downloadable documents.

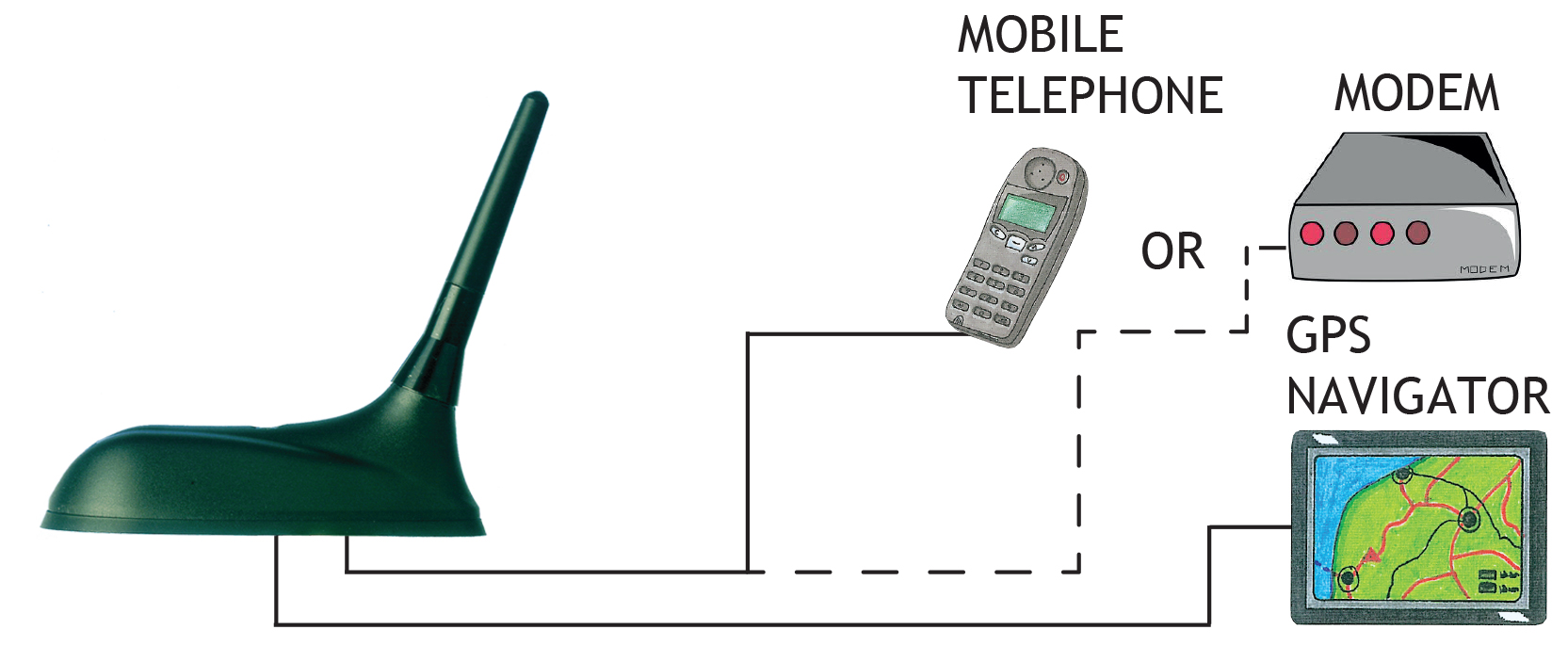

Connection Diagram

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

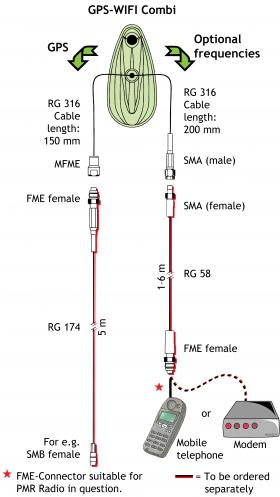

Cable Mounting

Typical response curves

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C 900/1800/UMTS/WIFI is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-1.pdf
