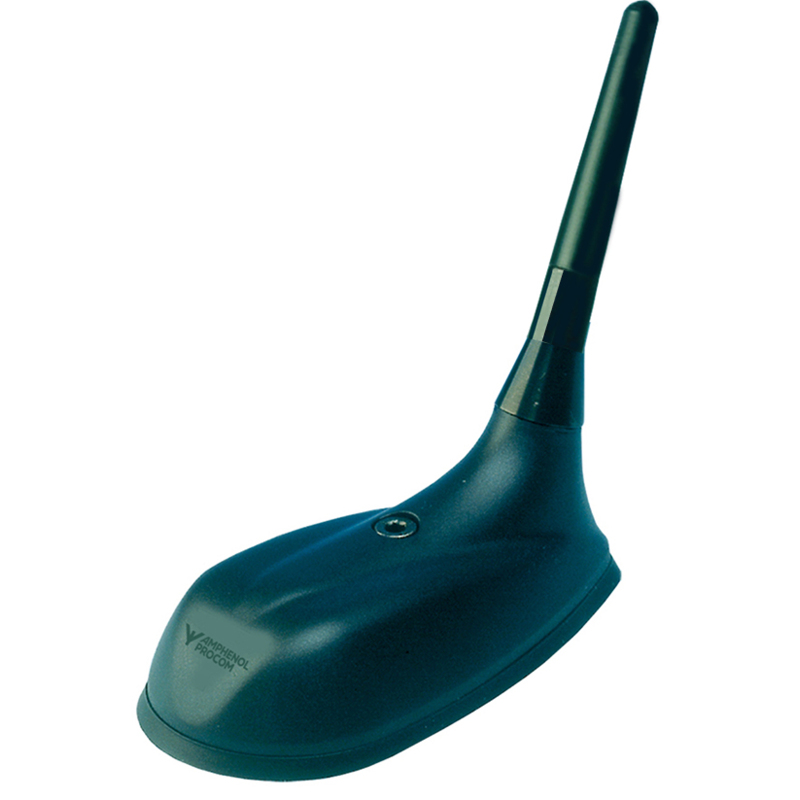

GPS Antenna with a ¼ λ Mobile Antenna for the 900 MHz, 1800 MHz and UMTS Bands
Find Out MoreOther Files
| Electrical | |
| Model | GPS-C 900/1800/UMTS |
|---|---|
| Frequency | 880 – 960 MHz (EGSM) 1710 – 1880 MHz (DCS) 1900 – 2200 MHz (UMTS) |
| Antenna Type | Triple-frequency antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | < 1.5:1 @ f.res |
| Bandwidth | 900 MHz : ≥ 80 MHz @ VSWR ≤ 1.6:1 1800 MHz : ≥ 170 MHz @ VSWR ≤ 2.25:1 |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Black-chromed brass, Black POM |
|---|---|
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 67 mm / 2.64 in. |
| Weight | Approx. 0.016 kg / 0.04 lb. |

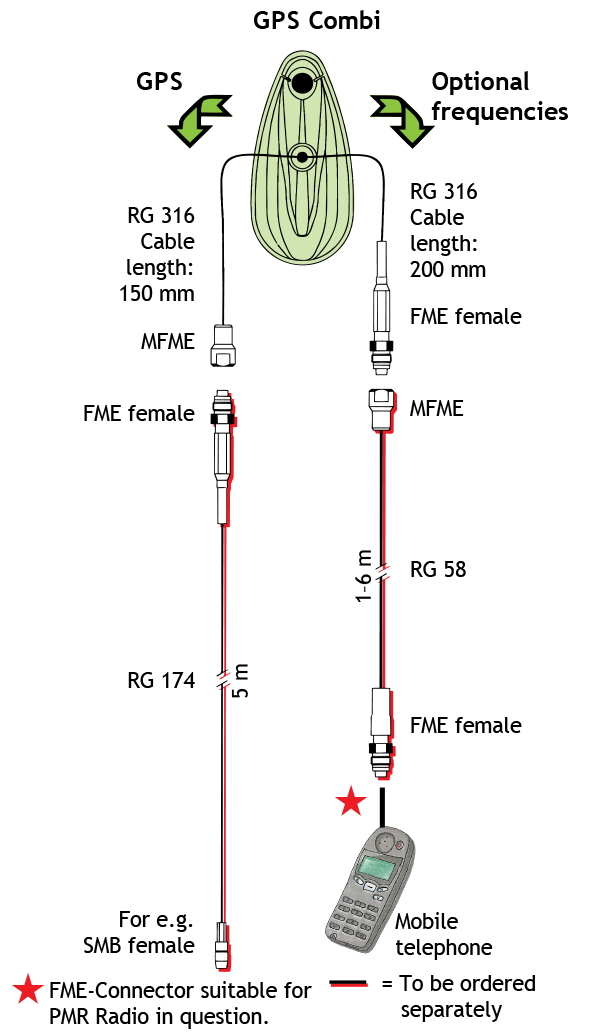

| Mounting | On the GPS-Combi mount |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| GPS Antenna with a ¼ λ Mobile Antenna for the 900 MHz, 1800 MHz and UMTS Bands | 132000046 |
You need to be logged in into your account to view downloadable documents.
Do not use sealer on rubber gasket or other places.
Hereby Amphenol Procom declare that the product type GPS-C 900/1800/UMTS is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:
