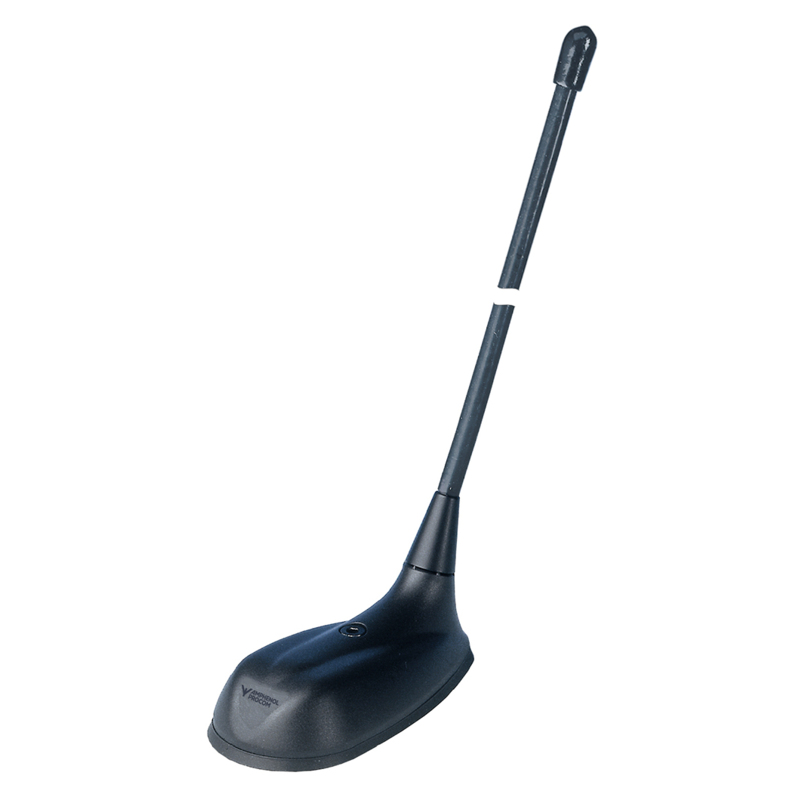

GPS-C FLEX/70/GSM/…

Unity Gain ¼ λ Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GPS-C FLEX/70/GSM/...

Quickly identify the correct ordering code.

GPS-C FLEX/70/GSM/…
Electrical
Model GPS-C FLEX/70/GSM/…
Frequency /s: 380 – 420 MHz
/l: 410 – 450 MHz
/h: 430 – 470 MHz
Also useable for the GSM Band (890 – 960 MHz)
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.7:1 @ f. res.
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.5
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Silicone tube over flexible bowden wire
Chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 140 mm / 5.51 in.
Weight Approx. 0.025 kg / 0.06 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

GPS-C FLEX/70/GSM/s

 132000068 380 – 420 MHz Max. Roof thickness 2.5 mm

GPS-C FLEX/70/GSM/l

 132000069 410 – 450 MHz Max. Roof thickness 2.5 mm

GPS-C FLEX/70/GSM/h

 132000070 430 – 470 MHz Max. Roof thickness 2.5 mm

Login required

You need to be logged in into your account to view downloadable documents.

Connection Diagram

GPS C FLEX70GSM Connection GB

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

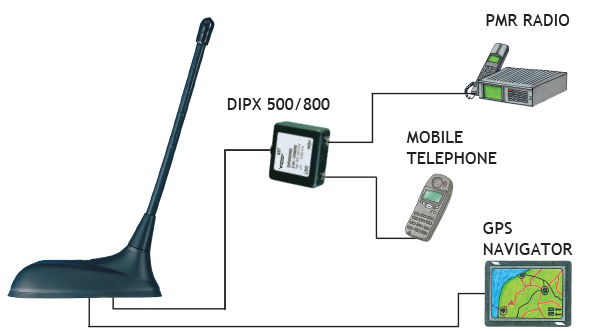

Cable Mounting

GPS C FLEX70GSM Combi GB

Typical Response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C FLEX/70/GSM/… is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-1.pdf
