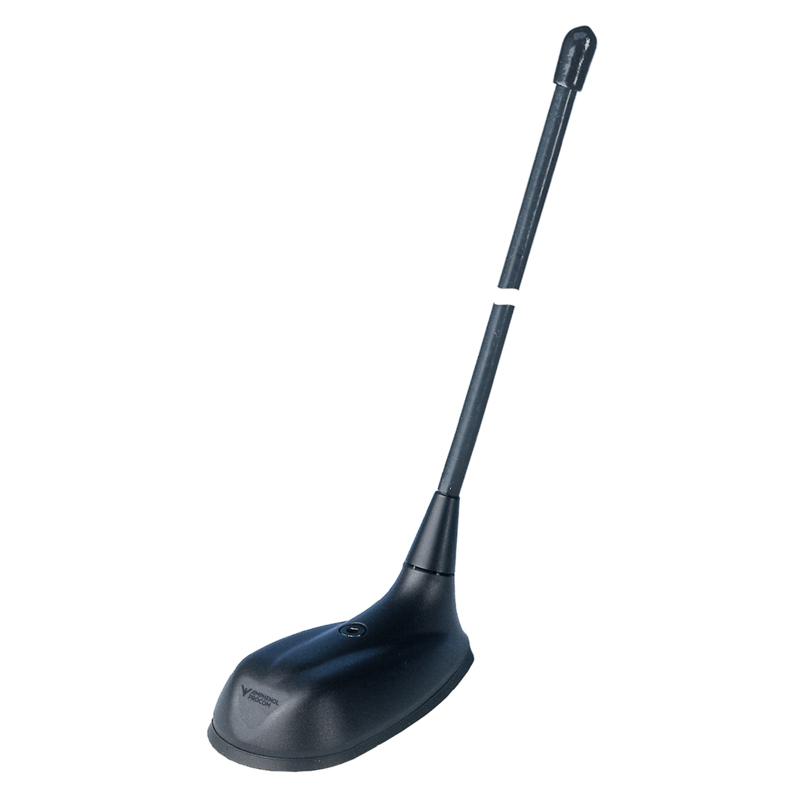

GPS-C FLEX/TETRA/GSM

Unity Gain ¼ λ Mobile Antenna for the TETRA and EGSM Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GPS-C FLEX/TETRA/GSM

Quickly identify the correct ordering code.

GPS-C FLEX/TETRA/GSM
Electrical
Model GPS-C FLEX/TETRA/GSM
Frequency 380 – 430 MHz (TETRA)
880 – 960 MHz (EGSM)
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (acc. to EIA RS-329-1)
for the TETRA band
VSWR ≤ 1.7:1 @ f. res.
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.5
Mechanical
Materials Silicone tube over flexible bowden wire
Chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 140 mm / 5.51 in.
Weight Approx. 0.025 kg / 0.06 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • When ordering the antenna, please state the centre frequency on each band.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

GPS-C FLEX/TETRA/GSM

 132000066 Max. Roof thickness 2.5 mm

GPS-C FLEX/TETRA/GSM/7 mm

 132000169 Roof thickness : 3.5 – 7.5 mm

Login required

You need to be logged in into your account to view downloadable documents.

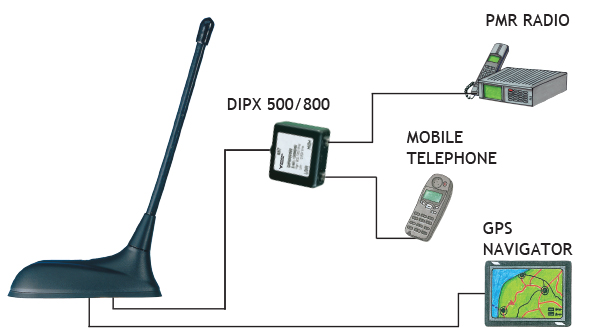

Connection Diagram

Mounting Instruction

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

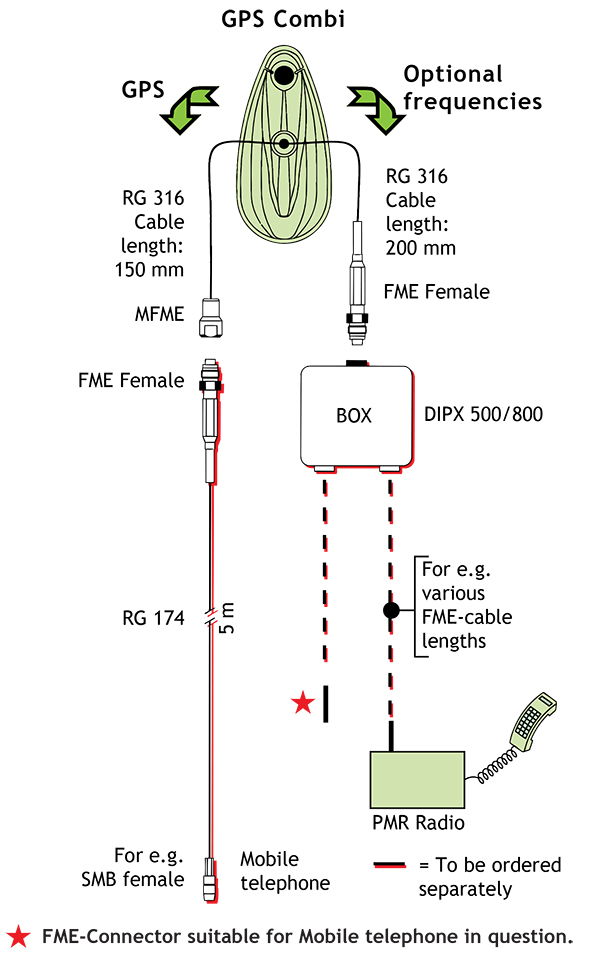

Cable Mounting

GPS C FLEX70GSM Combi GB

Typical response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

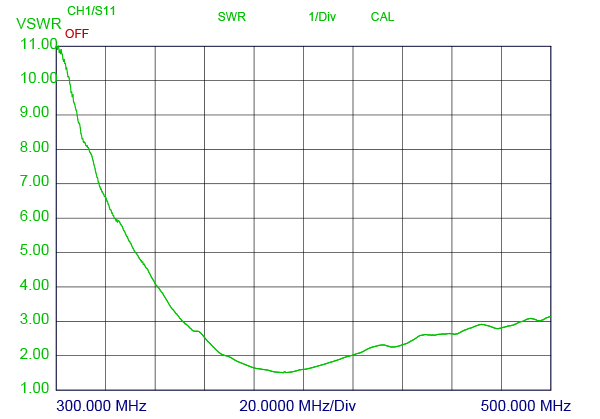

Typical VSWR curve

GPS C FLEX!TETRA!GSM VSWR

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C FLEX/TETRA/GSM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-1.pdf
