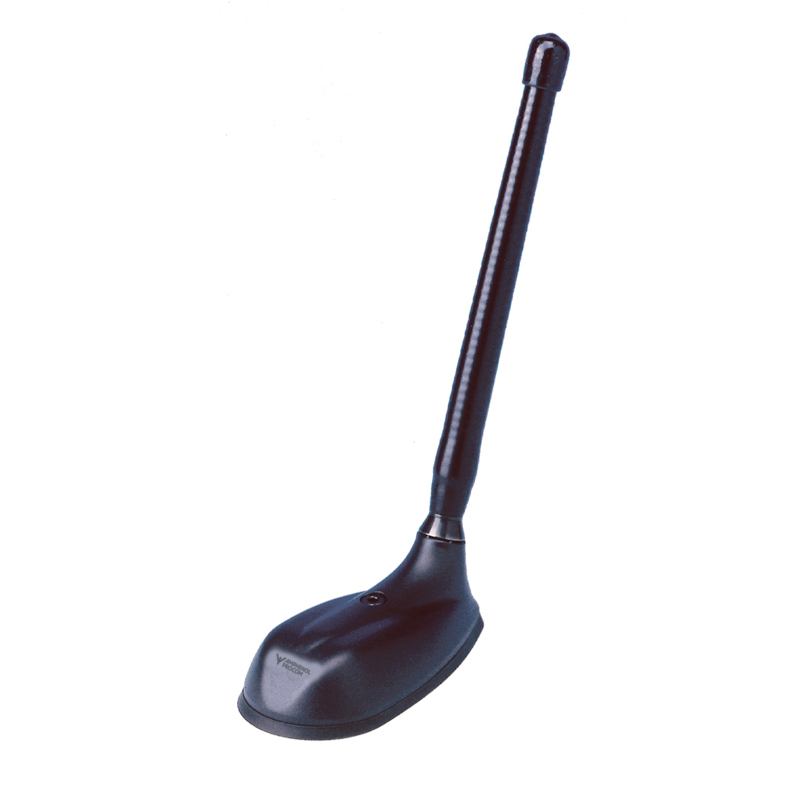

GPS-C HX 2/FQ

GPS Antenna with a ¼ λ Helical Antenna for the 160 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C HX 2/FQ
Electrical
Model GPS-C HX2/FQ
Frequency Tunable by cutting within : 144 – 175 MHz
Antenna Type Shortened ¼ λ helical antenna
Max. Input Power 10 W
Polarisation Vertical
Impedance 50 Ω
Gain (EIA RS-329-1) -3 dB
Mechanical
Materials Steel helix moulded in flexible
thermoplastic rubber
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 130 mm / 5.12 in.
Weight Approx. 0.034 kg / 0.07 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Flexible, conical steel helix moulded in flexible thermoplastic rubber.
  • Reduced-size ¼ λ helical antenna whip.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with a ¼ λ Helical Antenna for the 160 MHz Band 132000049

Login required

You need to be logged in into your account to view downloadable documents.

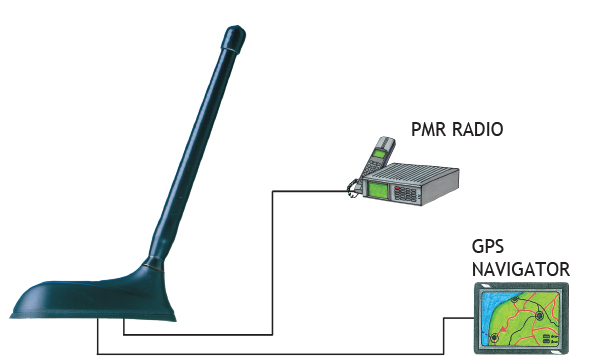

Connection Diagram

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

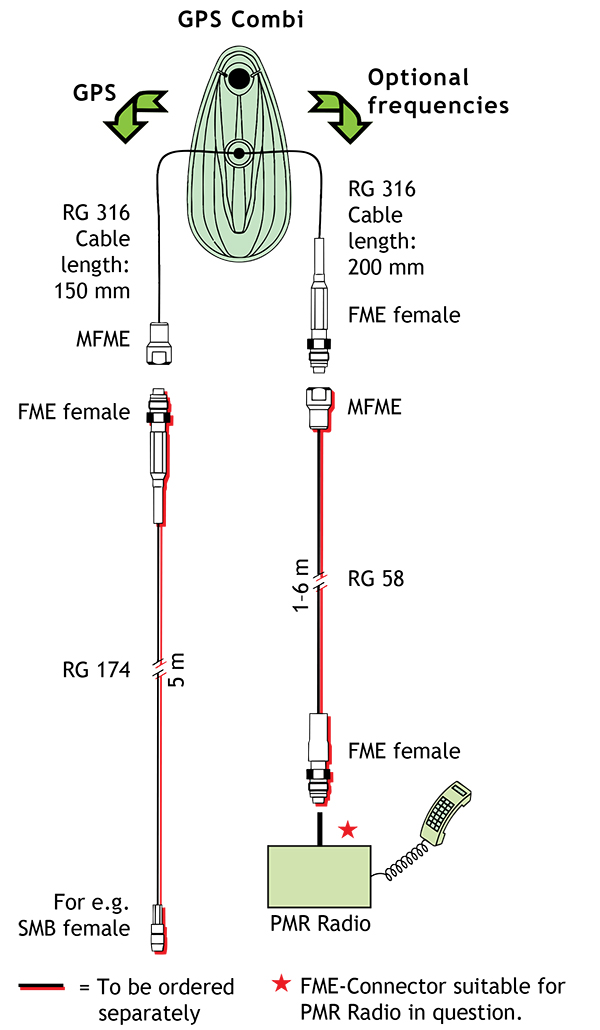

Cable Mounting

GPS C HX 2Combi GB

Typical response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C HX 2/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-1.pdf
