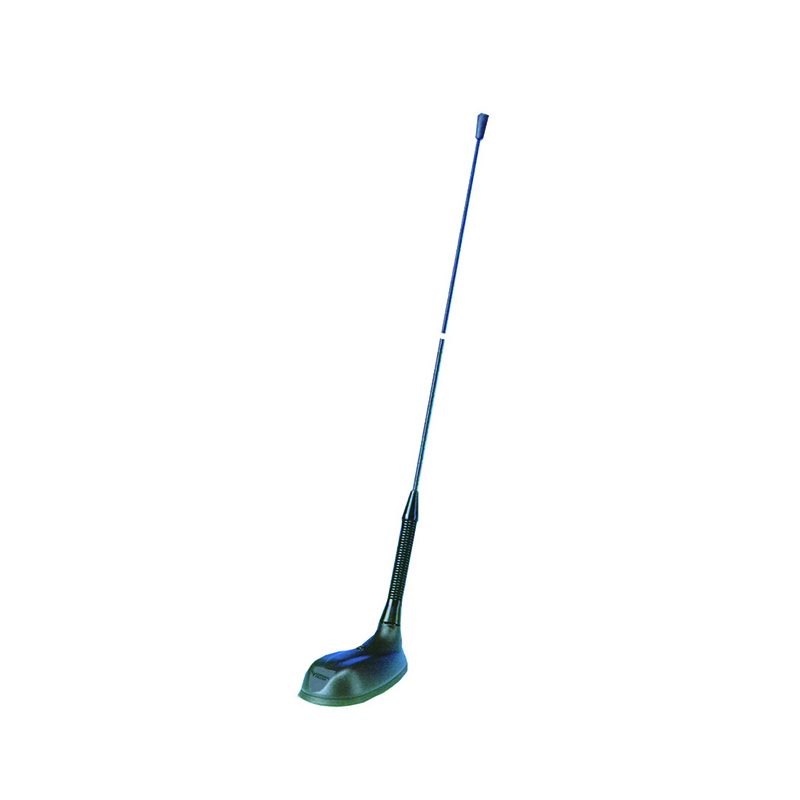

GPS-C MC-TETRA/FM

GPS Antenna with Whip with Shock Spring for the FM Band and TETRA Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GPS-C MC-TETRA/FM

Quickly identify the correct ordering code.

GPS-C MC-TETRA/FM
Electrical
Model GPS-C MC-TETRA/FM
Frequency FM band : 88 – 108 MHz,
TETRA band : 380 – 400 MHz
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1 @ f.res.
Bandwidth TETRA band : ≥ 20 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) FM band : Approx. -3 dB (acc. to¼ λ whip on a motorbike)
TETRA band : Approx. 0 dB (acc. to¼ λ whip on a motorbike)
Mechanical
Materials Whip : Polyethylene-covered copper thread / glass fibre
Black-chromed brass
Spring : Black-chromed stainless steel
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 550 mm / 21.65 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • When ordering the antenna, please state the centre frequency on each band

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

GPS-C MC-TETRA/FM

 132000150 GPS-C MC-TETRA/FM

GPS-C MC-TETRA/FM-21-23 mm

 132000151 GPS-C MC-TETRA/FM-21-23 mm

Login required

You need to be logged in into your account to view downloadable documents.

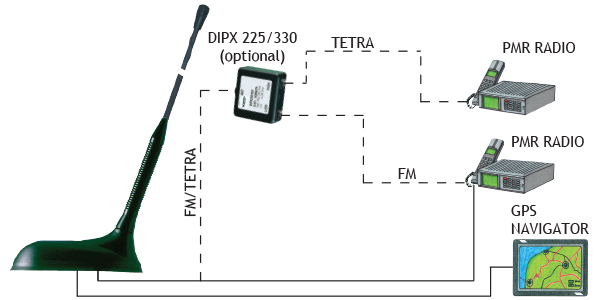

Connection Diagram

Mounting Instructions

GPS C mounting instructions GB

Do not use sealer on rubber gasket or other places.

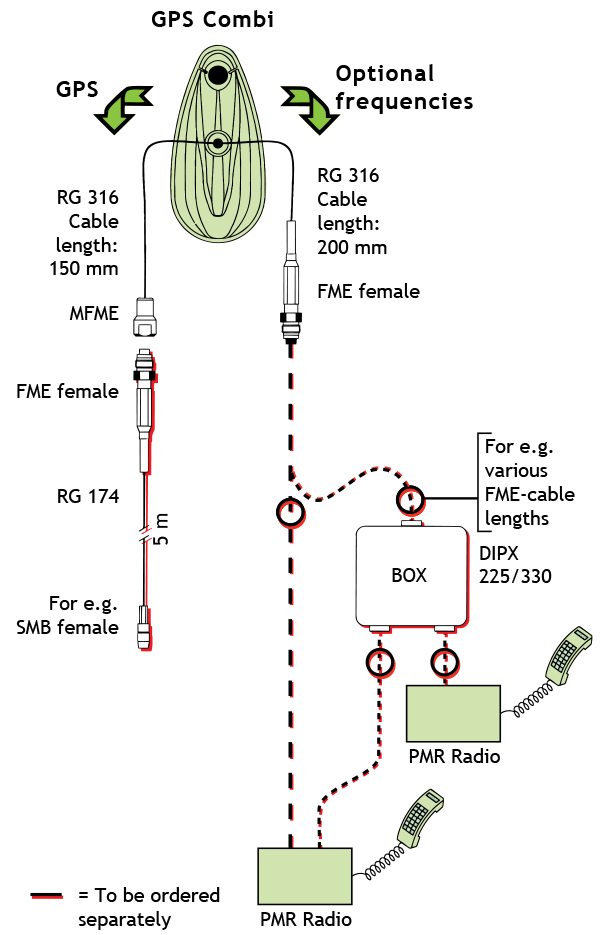

Cable Mounting

GPS Combi dia MC TETRAFM Cable mounting GB

Typical Response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C MC-TETRA/FM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-1.pdf
