GPS-C MU 3/TETRA/l

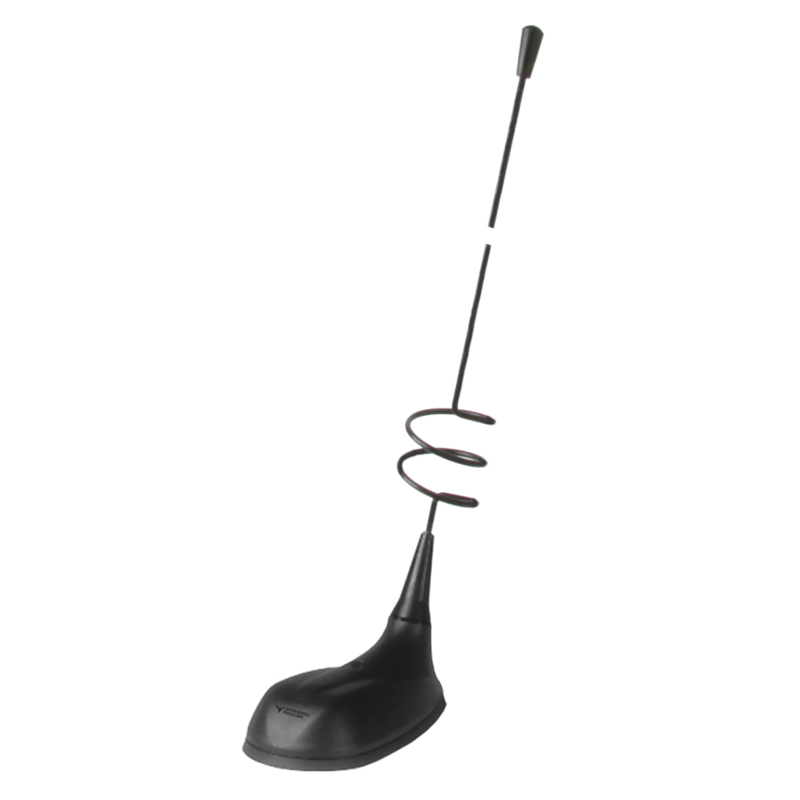

GPS Antenna with 3 dB Whip for the TETRA Band

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C MU 3/TETRA/l
Electrical
Model GPS-C MU 3/TETRA/l
Frequency 380 – 400 MHz
Antenna Type 5/8 λ mobile whip antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.5:1 @ f.res.
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Gain (EIA RS-329-1) 3 dB
Mechanical
Materials Whip : Black-chromed, conical stainless steel
Spring : Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 450 mm / 17.72 in.
Weight Approx. 0.06 kg / 0.13 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Black-chromed, stainless steel whip.
  • 3 dB Gain for the TETRA Band.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular Polarization (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with 3 dB Whip for the TETRA Band 132000130

Login required

You need to be logged in into your account to view downloadable documents.

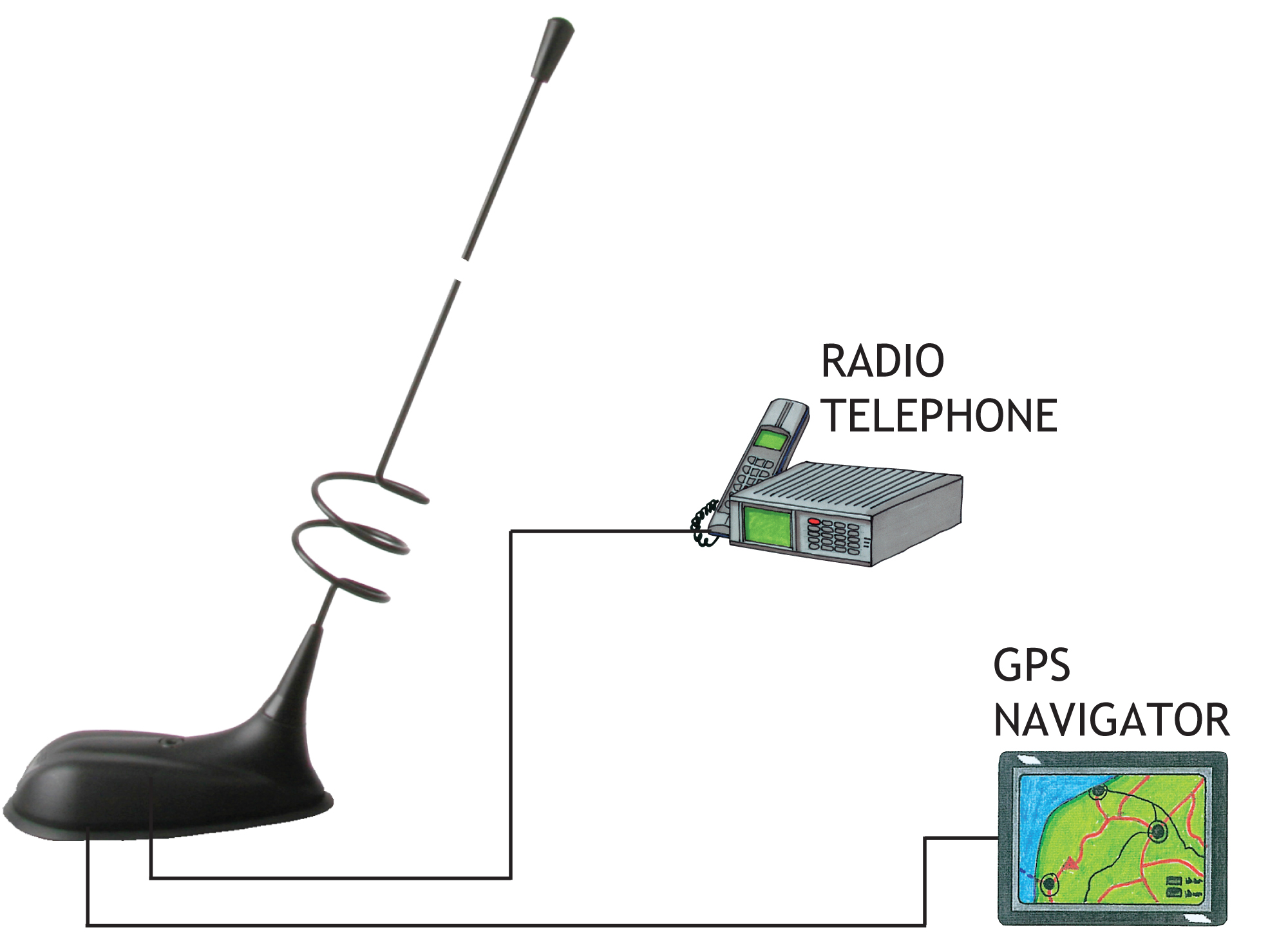

Connection Diagram

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

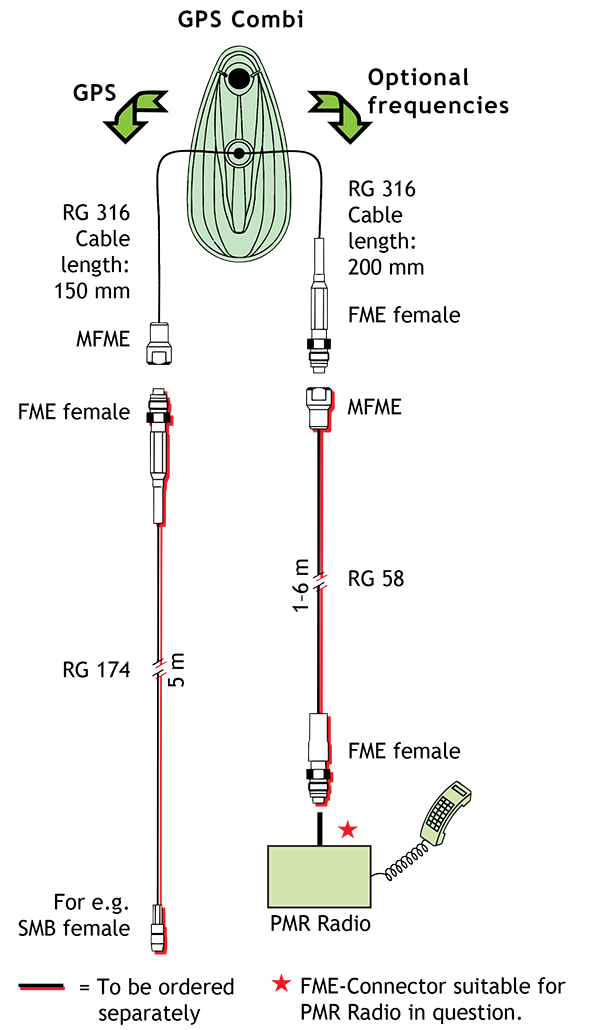

Cable Mounting

GPS C MU 3 TETRA l GB

Typical Response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C MU 3/TETRA/l is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf
