| Electrical | |

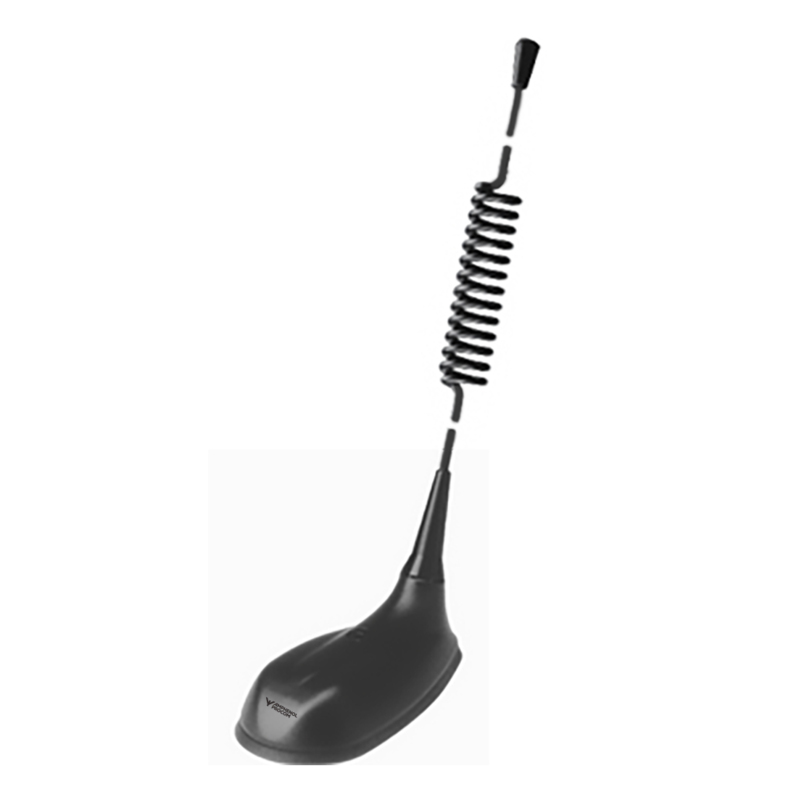

| Model | GPS-C MU 4/FM/… |
|---|---|
| Frequency | Models within 380 – 470 MHz Also receiving FM-radio (88 – 108 MHz) |
| Antenna Type | Collinear mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | < 1.3:1 @ f.res. for the 450 MHz band |
| Bandwidth | > 30 MHz @ VSWR < 2.5 |
| Gain (EIA RS-329-1) | 4 dB (acc. to EIA RS-329-1) for the 450 MHz band |
| Mechanical | |
| Materials | Black-chromium-plated stainless steel |
|---|---|
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 590 mm / 23.23 in. |
| Max. Roof Thickness | 2.5 mm / 0.10 in. |
| Weight | Approx. 0.065 kg / 0.14 lb. |

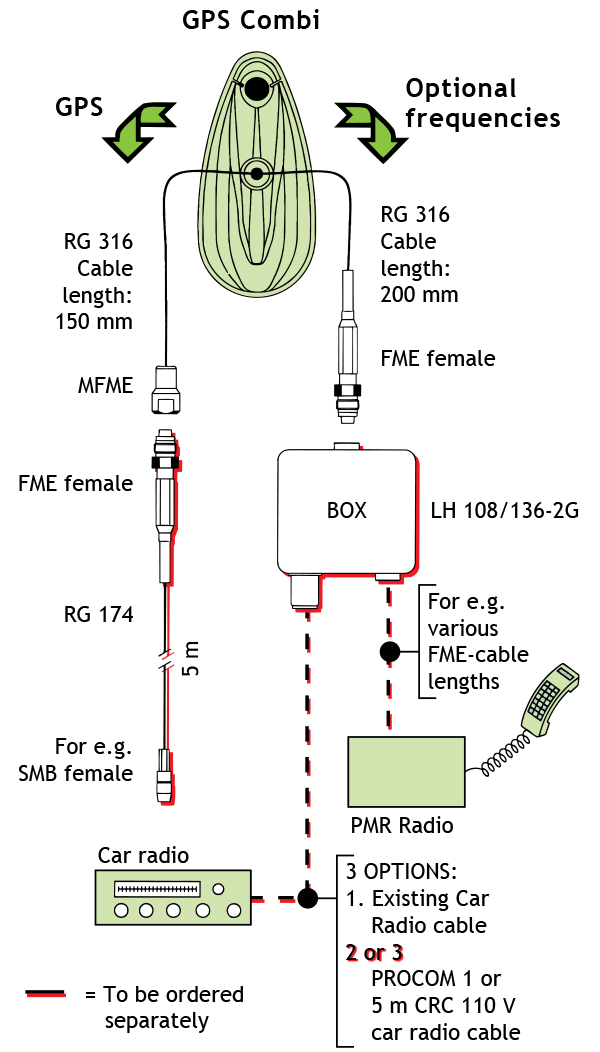

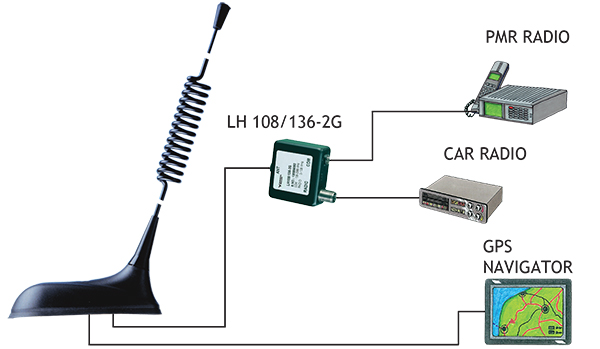

| Mounting | On the GPS-Combi mount |
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|
GPS-C MU 4/FM/s |
132000055 | 380 – 410 MHz | |
|
GPS-C MU 4/FM/f |
132000052 | 406 – 430 MHz | |
|
GPS-C MU 4/FM/l |
132000101 | 420 – 450 MHz | |
|
GPS-C MU 4/FM/h |
132000053 | 440 – 470 MHz |
You need to be logged in into your account to view downloadable documents.
Do not use sealer on rubber gasket or other places.
Hereby Amphenol Procom declare that the product type GPS-C MU 4/FM/… is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:
https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf
