GPS-C R/DAB/FM

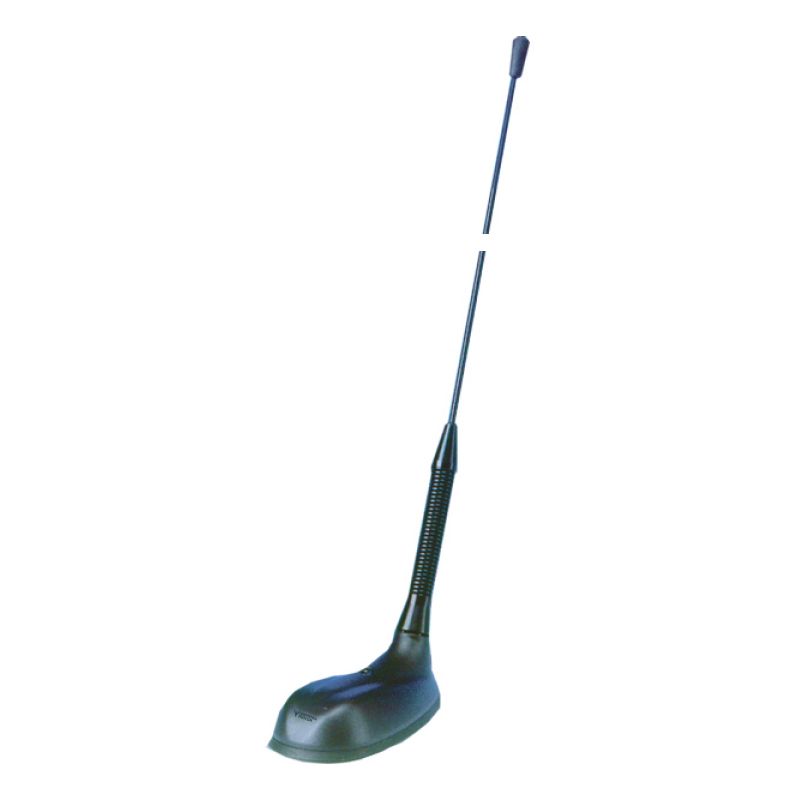

GPS Antenna with a ¼ λ Whip with Shock Spring for the DAB and FM Bands

Find Out More
Data Sheet
CE Certification

Other Files

GPS-C R/DAB/FM
Electrical
Model GPS-C R/DAB/FM
Frequency DAB-Band : (223 – 240 MHz)
also receives FM band : (88 – 108 MHz)
Antenna Type Mobile antenna
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1 @ f.res.
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed, conical stainless steel
Black-chromed brass
Mount : Weather- and shockproof plastics
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 290 mm / 11.42 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Black-chromed, conical stainless steel whip.
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • When ordering the antenna, please state the centre frequency on each band.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with a ¼ λ Whip with Shock Spring for the DAB and FM Bands 132000058

Login required

You need to be logged in into your account to view downloadable documents.

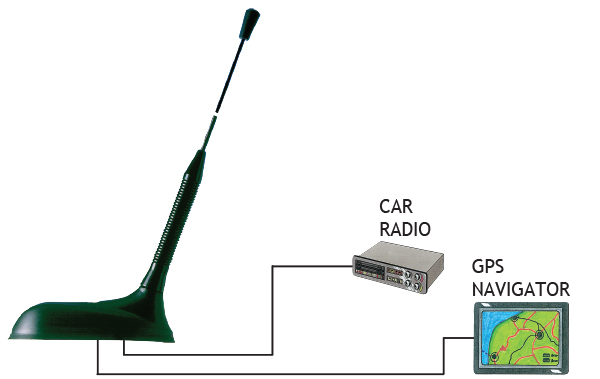

Connection Diagram

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

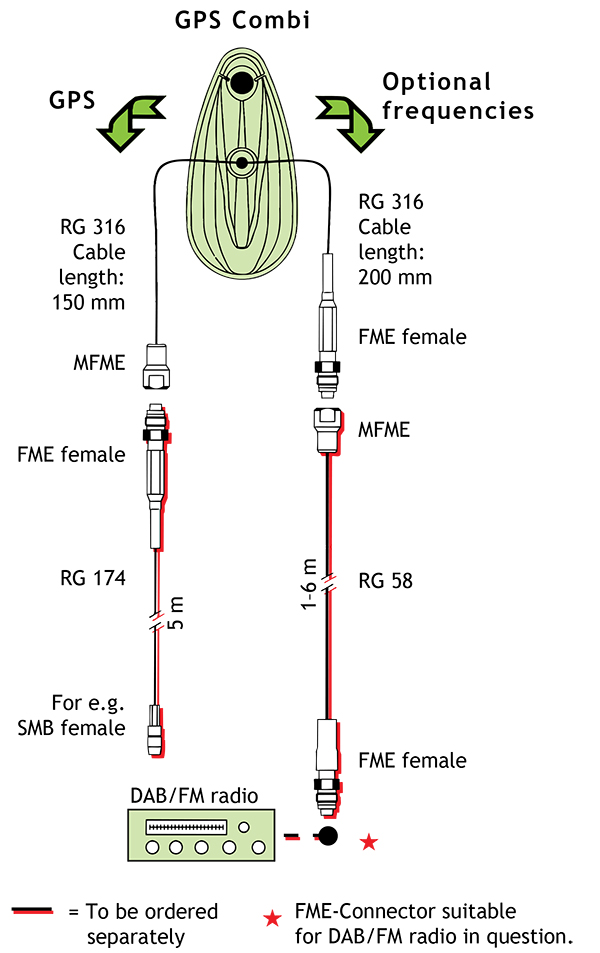

Cable Mounting
