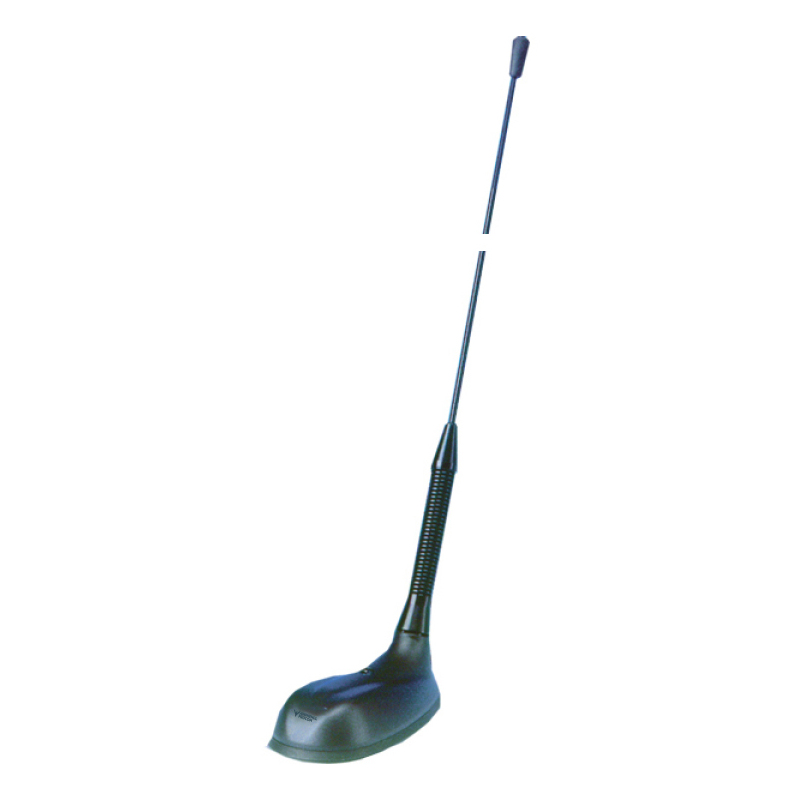

GPS-C R/FM
Electrical
Model GPS-C R/FM
Frequency FM band (88 – 108 MHz)
Antenna Type Mobile antenna
Polarisation Vertical
Impedance 50 Ω
Mechanical
Materials Whip : Black-chromed, concial stainless steel
Spring : Black-chromed brass
Black-chromed stainless steel
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the GPS-Combi mount
  • External antenna whip mounted on the GPS-Combi mount.
  • Black-chromed, conical stainless steel whip.
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circularly Polarized antenna (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS Antenna with a ¼ λ Whip with a Shock Spring for the FM Band 132000057

Login required

You need to be logged in into your account to view downloadable documents.

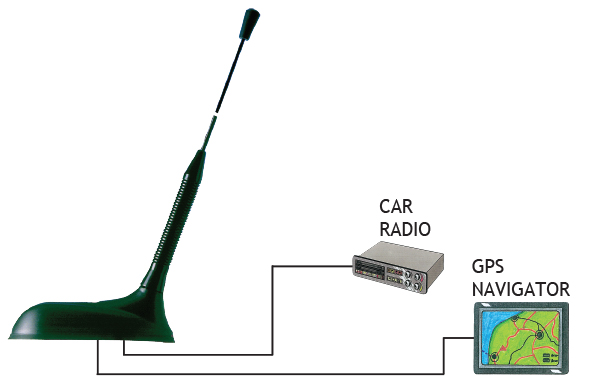

Connection Diagram

Mounting Instructions

GPS C mounting instructions GB

Do not use sealer on rubber gasket or other places.

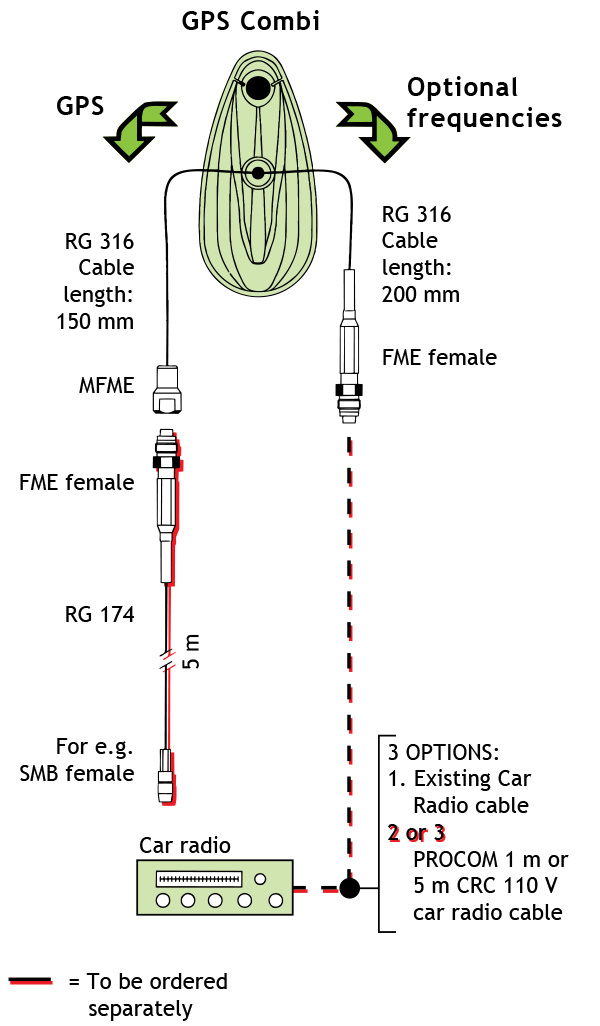

Cable Mounting

GPS Combi diaRFM GB

Typical Response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C R/FM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf
