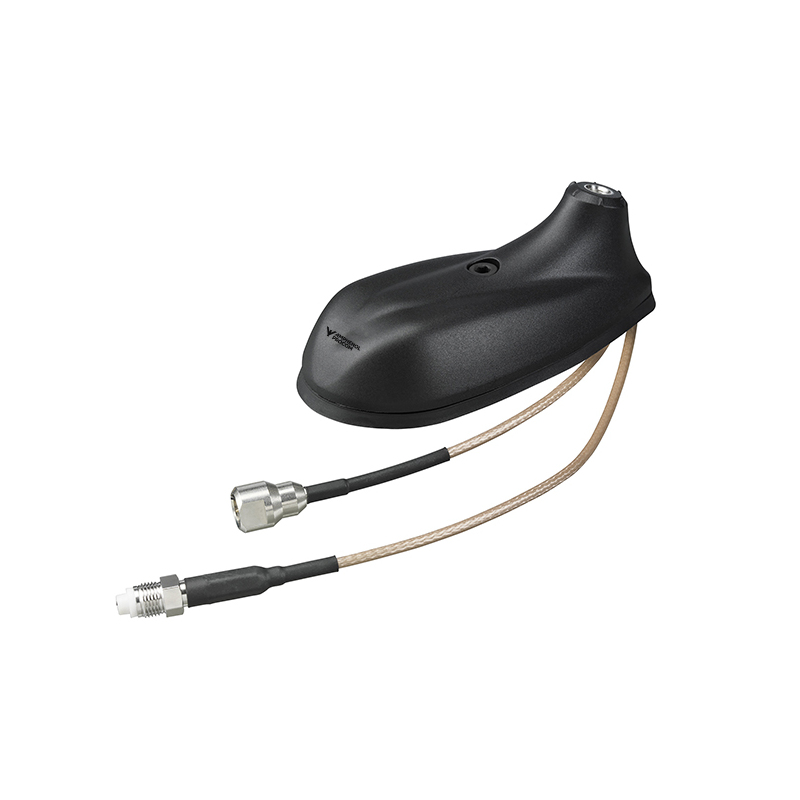

GPS-COMBI MOUNT 3.5-7.5 mm

GPS mount for GPS Antennas for Other Frequencies

Find Out More
Data Sheet
CE Certification

Other Files

GPS-COMBI MOUNT 3.5-7.5 mm
Electrical
Model GPS-COMBI MOUNT 3.5-7.5 mm
Antenna Type Active patch antenna
Polarisation Circular
Impedance 50 Ω
Coverage Hemispherical
Gain 28 dBic in axial direction (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 45 dB down @ ± 45 MHz
Mechanical
Compliance ECE R118.02 approved cable
Historic Brand Amphenol Procom
  • GPS-antenna for fixed installations.
  • Special mount for roof thickness 3.5 – 7.5 mm.
  • External antenna whip mounted on the GPS-Combi mount.
  • Full hemispherical coverage.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circular Polarisation (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • Tools for mounting included.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS mount for GPS Antennas for Other Frequencies 132000006

Login required

You need to be logged in into your account to view downloadable documents.

Applicable to all GPS-C whip models

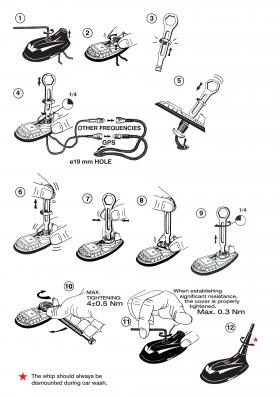

Mounting Instructions

 Do not use sealer on rubber gasket or other places.

Tools

GPS combi mount tools

Typical response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-Combi Mount 3.5-7.5 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-COMBI-MOUNT.pdf
