GPS-COMBI MOUNT

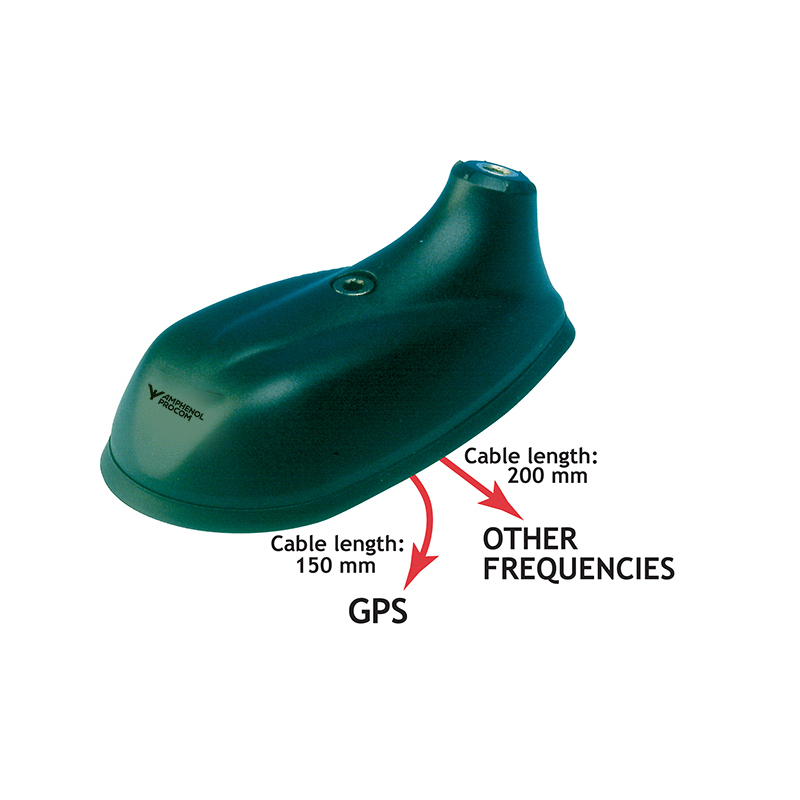

GPS mount for GPS Antennas for Other Frequencies

Find Out More
Data Sheet
CE Certification

Other Files

GPS-COMBI MOUNT
Electrical
Model GPS-COMBI MOUNT
Frequency 1575 MHz
Antenna Type Active patch antenna
Polarisation Circular
Impedance 50 Ω
Coverage Hemispherical
Gain 28 dBic in axial direction (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Selectivity > 45 dB down @ ± 45 MHz
Mechanical
Compliance ECE R118.02 approved cable
Historic Brand Amphenol Procom
  • GPS-antenna for fixed installations.
  • External antenna whip mounted on the GPS-Combi mount.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular Polarization (RHCP).
  • 5 V supply voltage (3 V respectively 12 V available on request).
  • DC supply via RF-connector.
  • Tools for mounting included.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GPS mount for GPS Antennas for Other Frequencies 132000003

Login required

You need to be logged in into your account to view downloadable documents.

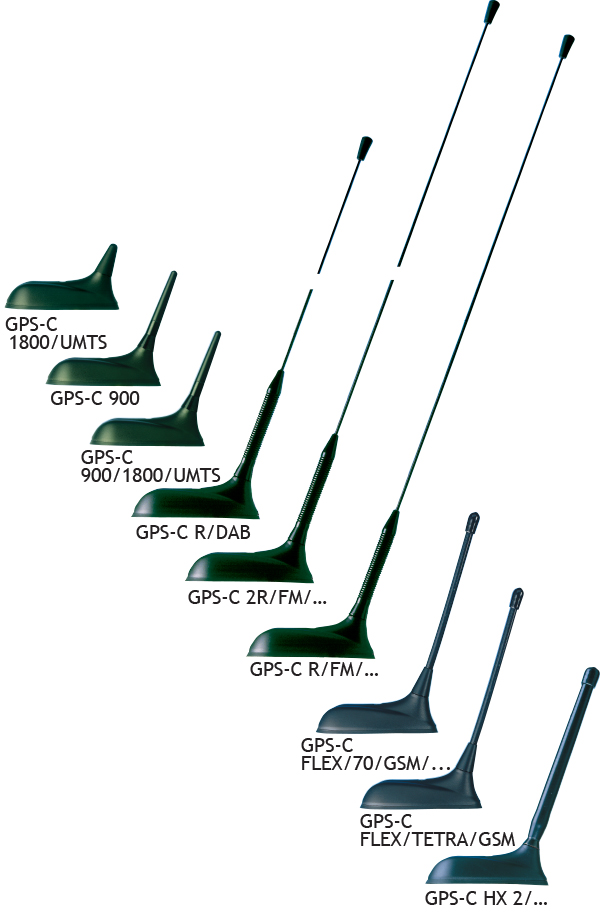

Whip examples

See back of this page for complete application survey of Procom’s wide range of GPS-C models.

Tool

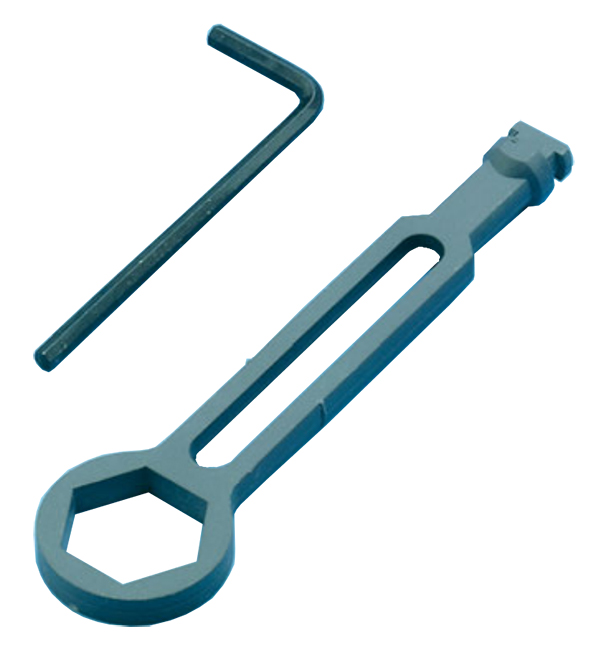

GPS combi mount tools

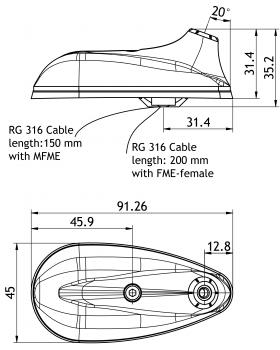

Mounting Details

Mounting Instructions

GPS C mounting instructions GB

 Do not use sealer on rubber gasket or other places.
Installation

The various GPS-Combimodels can be connected to the following devices:

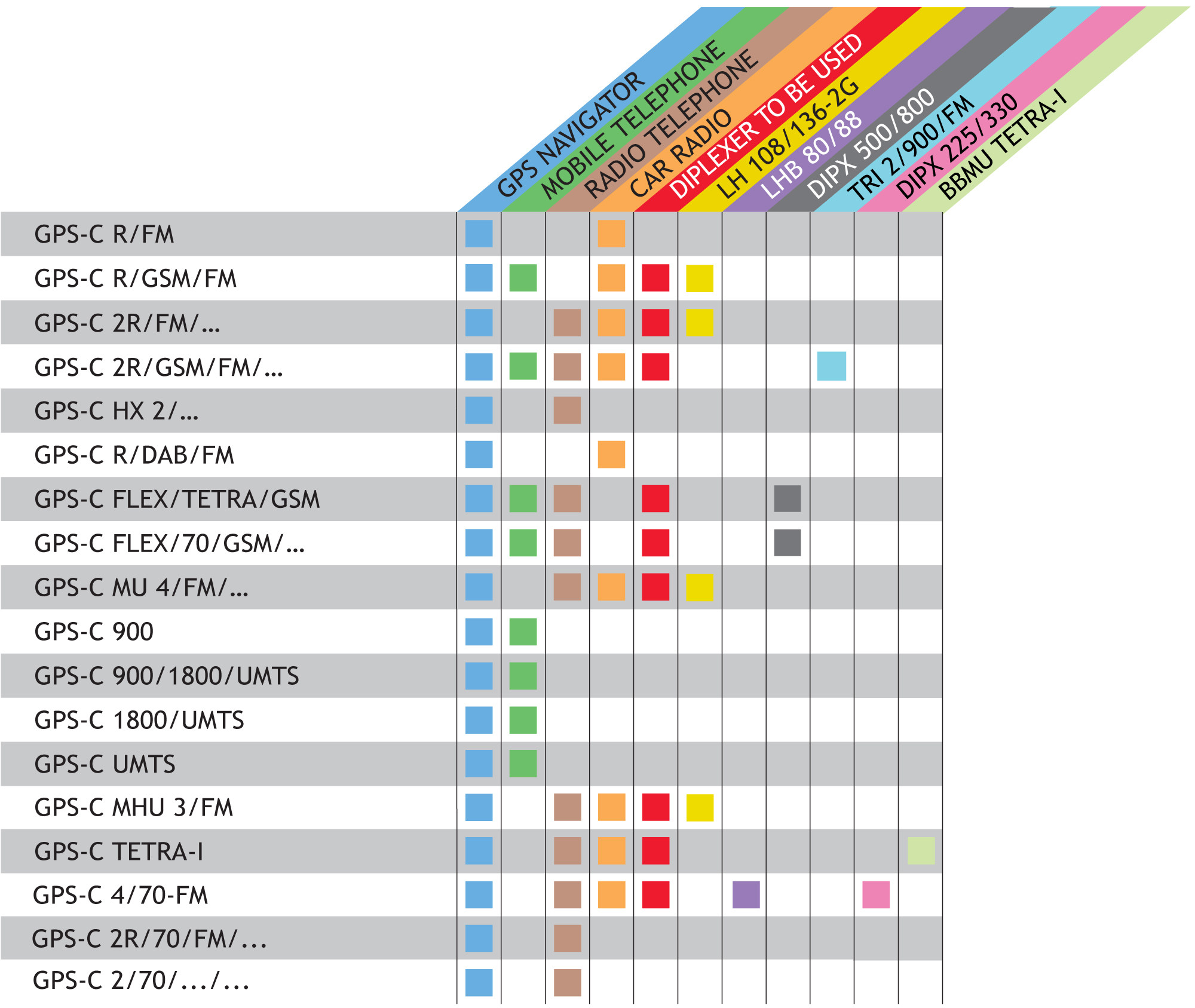

gps combi mount skema

Typical Response Cures



Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-Combi Mount is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-COMBI-MOUNT.pdf
