GPS/Iridium-FME

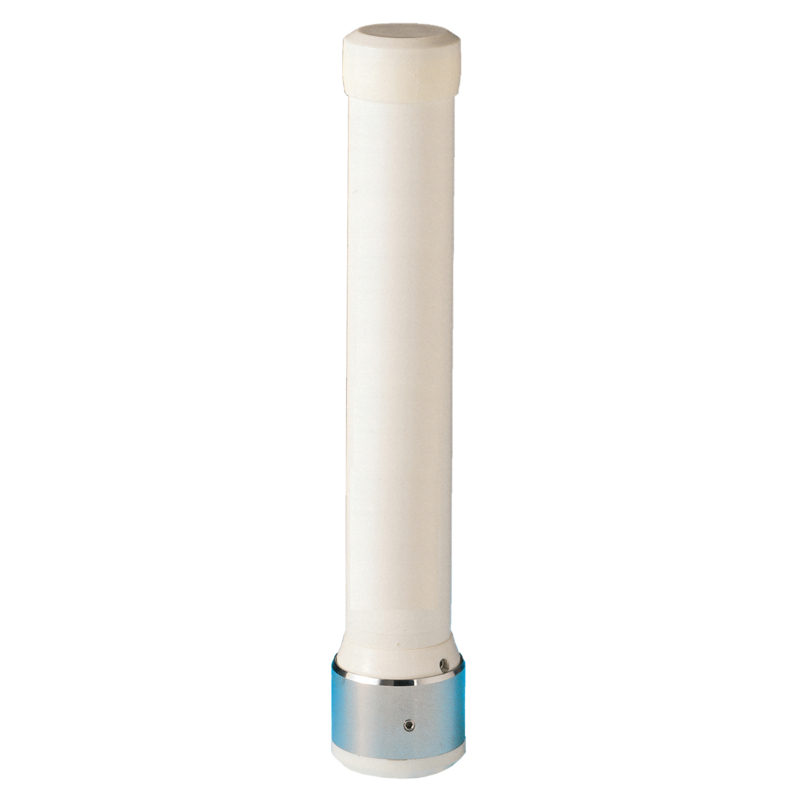

Lightweight Circularly Polarized Quadrifilar Helix for Mast Mounting

Find Out More
Data Sheet
CE Certification

Other Files

GPS/Iridium-FME
Electrical
Model GPS/Iridium-FME
Frequency 1570 – 1650 MHz
Antenna Type Quadrifilar helix antenna
Max. Input Power 2 W
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Gain 2 dBic (0 dBd)
VSWR < 2.0:1
Bandwidth 75 MHz
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Mechanical
Wind Area 0.0072 sq. m / 0.08 sq. ft
Connection(s) FME(m)
Materials Shroud : Weather resistant low loss plastic
Colour Marine white
Historic Brand Amphenol Procom
Height Approx. 23 mm / 0.91 in.
Wind Load 9.6 N (160 km/h)
Diameter Approx. 33 mm / 1.30 in.
Weight Approx. 0.14 kg / 0.31 lb.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Passive quadrifilar helix antenna for fixed installation.
  • Covering GPS and Iridium band: 1575 and 1616 – 1626.5 MHz.
  • Right-hand circularly polarized antenna (RHCP).
  • The circularly polarized antenna minimizes the fading effect often encountered in environments with reflecting obstacles.
  • Suitable for mounting on 1” threaded water pipe.
  • Comprehensive range of accessory mounting brackets available
  • to make the perfect installation for your specific needs.

ACCESSORIES (to be ordered separately)

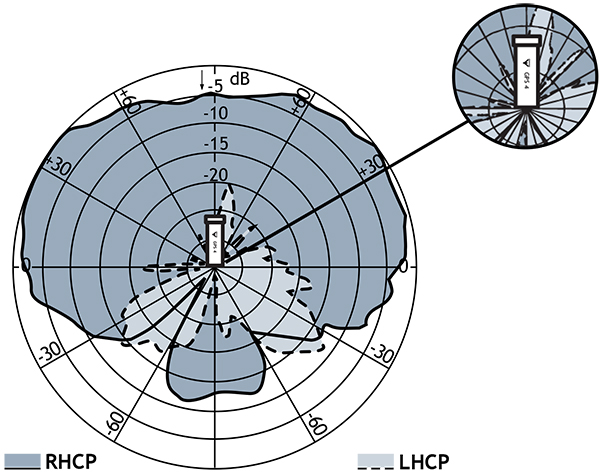

VERTICAL RADIATION PATTERN
