Miniature Receiver Multicoupler series for the VHF and low UHF band 30 – 960 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

HPRS

Quickly identify the correct ordering code.

HPRS
Electrical
Power Supply 10.2 to 13.8 V / max. 450 mA
Model HPRS
Gain (Input To All Outputs) Gain adjustment -5 dB to +3 dB
Frequency 30 – 960 MHz
Noise Figure < 3.5 dB @ 400 MHz
Output 3. Order Intercept point (OIP3) > +33 dBm @ 12.0 V and max. gain
Impedance 50 Ω
P1dB > +20 dBm @ 12.0 V and max. gain
Output 2. Order Intercept point (OIP2) > +65 dBm @ 12.0 V and max. gain
Isolation between outputs 30 – 100 MHz > 17 dB
100 – 500 MHz > 20 dB
500 – 960 MHz > 18 dB
Output-Input Isolation > 23 dB
Input VSWR < 2.5:1 typ. < 2.0:1
Input-Output Isolation > 23 dB
Output VSWR < 2.0:1 typ. < 1.5:1
No. of channels 2 or 4
Environmental
Operating temperature range -30 °C to +50 °C
Ingress Protection IP31
Mechanical
Connection(s) N(f), (BNC(f) or TNC(f)
Historic Brand Amphenol Procom
Dimensions Approx. 129 x 152 x 35 mm /
5.08 x 5.98 x 1.38 in.
(incl. connectors and flanges)
Weight Approx. 0.36 kg / 0.79 lb.
Mounting 5 mm / 0.20 in. dia. (four holes)
  • Active wideband receiver multicoupler for the VHF band and the low part of the UHF band with one input and two or four outputs.
  • For use where a number of receivers have to share the same antenna.
  • Wide frequency range. Covers 30 – 960 MHz.
  • Other versions available:
  • HPRS-S : 10 kHz – 108 MHz
  • HPRS-U : 690 MHz – 2.7 GHz
  • High-dynamic range amplifier built in to compensate for loss in the multicoupler network.
  • High OIP2 and OIP3.
  • Low amplifier noise figure.
  • High isolation between receiver outputs.
  • 12 V operating voltage (24 V as option).
  • DC supply on solder terminal or on 2.5 mm barrel DC connector.
  • Coated with black vinyl to prevent corrosion.
  • Available with N, TNC or BNC connector types.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

HPRS2-N(f)

 210000201 OUTPUTS: 2

HPRS2-TNC(f)

 210001958 OUTPUTS: 2

HPRS2-BNC(f)

 210000319 OUTPUTS: 2

HPRS4-N(f)

 210000188 OUTPUTS: 4

HPRS4-TNC(f)

 210001959 OUTPUTS: 4

HPRS4-BNC(f)

 210000321 OUTPUTS: 4

Login required

You need to be logged in into your account to view downloadable documents.

DC Power Supply connection

HPRS U DC connection

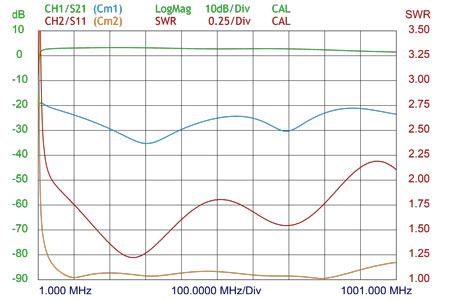

Typical Gain and VSWR Curve

Mounting Details

PRO MARHP4 HPRS4W Mountingholes

All dimensions are given in mm [in.]

Gain adjustment HPRS

The HPRS is provided with gain adjustment option.

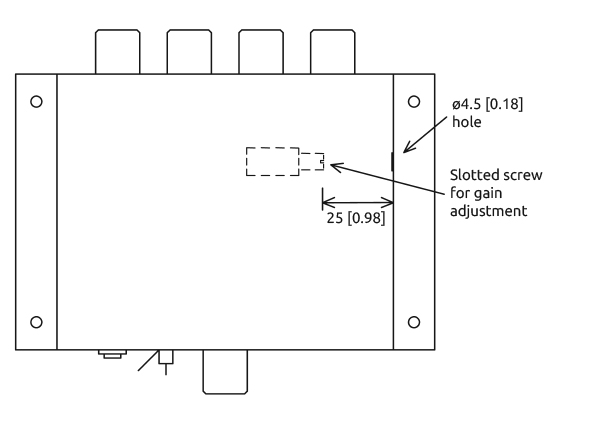

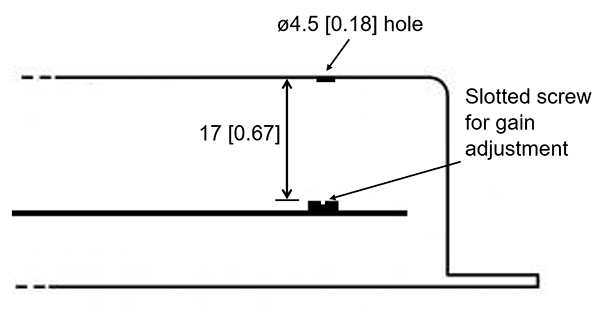

Gain is adjusted by turning a gain adjustment screw located 17 mm behind a ø4.5 mm hole on the top of the HPRS housing. See drawing below.
