HS.EFX-1050-FS

ADS-B omni antenna, 0 dBd 1000-1100MHz

Find Out More
Data Sheet
CE Certification

Other Files

HS.EFX-1050-FS
Electrical
Frequency 1000 – 1100 MHz
Max. Input Power 150W CW
1kW peak with 7% duty cycle
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 to 70 °C
Survival Wind Speed 300 km/h
Ingress Protection IP56
Mechanical
Connection(s) N(f)
Materials Antenna Base: Aluminium
Shroud: GRP tube 40mm dia.
Historic Brand Skymasts
Dimensions 570 (l) x 40 (dia.) mm
Wind Load 34 N (160km/h)
Weight 1.2 kg / 2.65 lb
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe

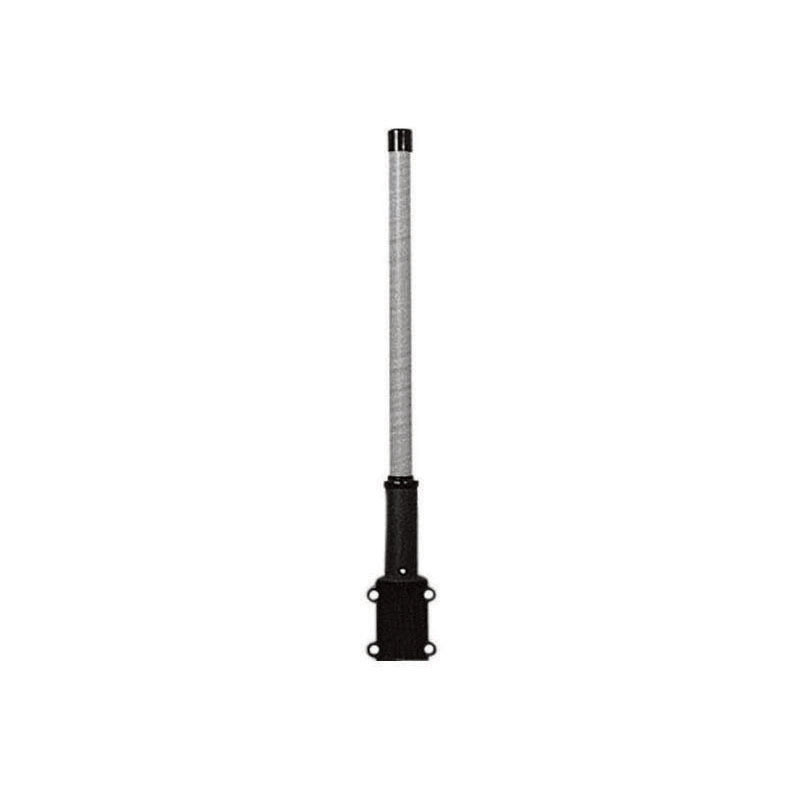

  • The HS.EFX-1050-FS Series colinear antenna is designed for ADS-B applications where a durable and high performance omni antenna is required. The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth without large pattern distortions. High quality materials and manufacturing techniques are employed throughout.
  • • Former Skymasts brand product.

RADIATION PATTERNS

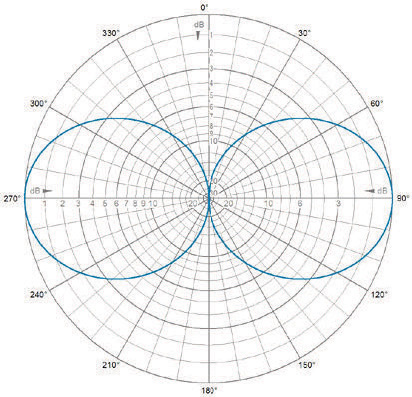

E-Plane | 1050 MHz

E-Plane | 1050 MHz

RADIATION PATTERNS

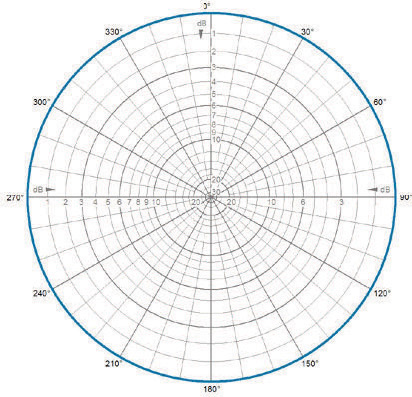

H-Plane | 1050 MHz

H-Plane | 1050 MHz
