HX 70/…-SMA

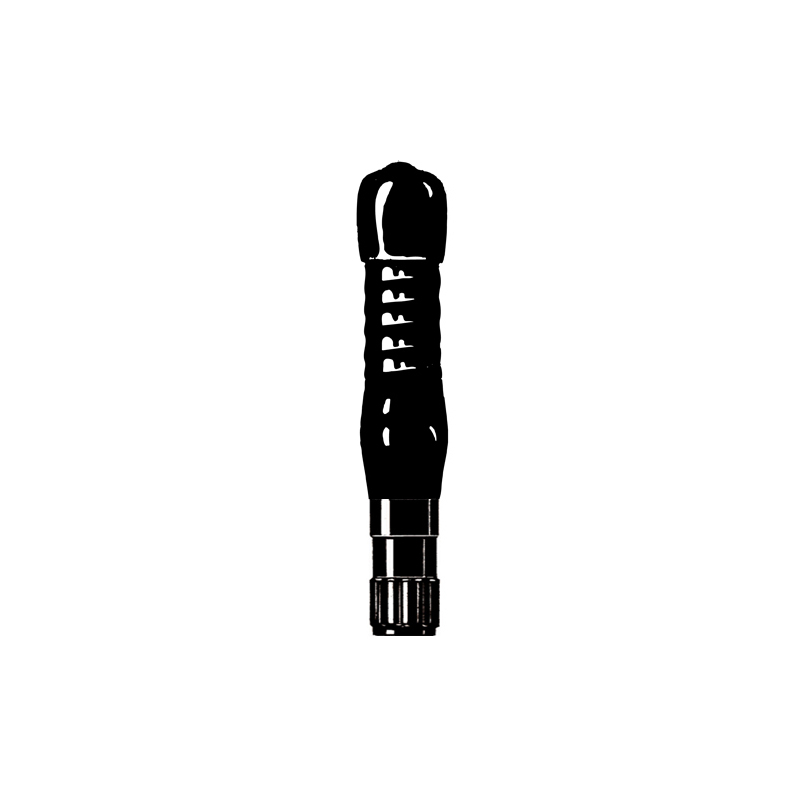

Antenna with Universal SMA-Connection System for Portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

HX 70/...-SMA

Quickly identify the correct ordering code.

HX 70/…-SMA
Electrical
Model HX 70/…-SMA
Frequency 70 cm band covered by four models
Antenna Type Shortened ¼ λ antenna for portable equipment
Max. Input Power 50 W
Polarisation Vertical
Impedance 50 Ω
Gain Approx. -3 dB (compared to a ¼ λ portable antenna)
VSWR < 1.5:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.0:1
Mechanical
Connection(s) SMA(m)
Materials Steel helix moulded in flexible thermoplastic rubber
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 88.5 mm / 3.48 in.
Weight Approx. 0.03 kg / 0.07 lb.
  • Short conical steel helix moulded in flexible thermoplastic rubber.
  • Reduced-size ¼ λ helical antenna whip.
  • Optimum performance compared to physical dimensions.
  • Delivered factory tuned and tested to ensure minimum VSWR.
  • Designed for use with SMA-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

HX 70/s-SMA(m)

 140000308 380 – 410 MHz

HX 70/l-SMA(m)

 140000293 400 – 430 MHz

HX 70/m-SMA(m)

 140000306 420 – 450 MHz

HX 70/h-SMA(m)

 140000307 440 – 470 MHz
