JB0.01-110

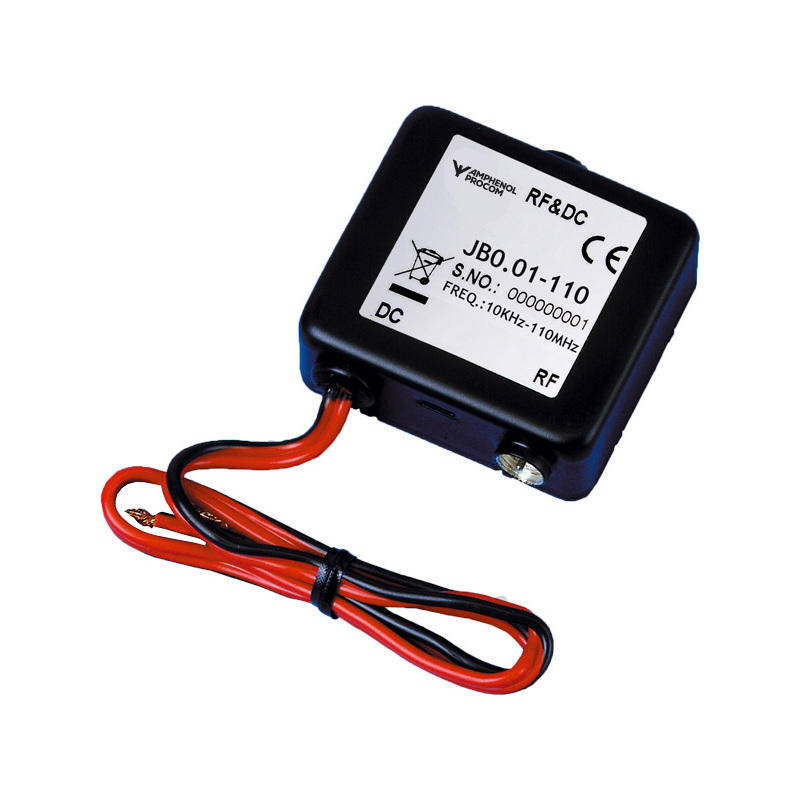

Miniature Junction Box

Find Out More
Data Sheet
CE Certification

Other Files

JB0.01-110
Electrical
Model JB0.01-110
Frequency 10 KHz – 110 MHz
Insertion Loss < 0.6 dB
Max. Voltage 25 V DC
VSWR < 1.4:1
Max. Current 100 mA
Isolation RF-DC Min. 40 dB, typically ≥ 60 dB @ 100 KHz – 30 MHz
Mechanical
Connection(s) FME-male, 2 pcs. + flexible wire
Historic Brand Amphenol Procom
Dimensions 50 x 40 x 20 mm / 1.97 x 1.58 x 0.79 in.
Weight Approx. 0.065 kg / 0.14 lb.
  • Miniature junction box = coupling in or out of DC power supply on the coaxial cable.
  • Large frequency range:10 KHz – 110 MHz.
  • Excellent isolation between RF and supply : > 40 dB.
  • To be used where coupling in or out of DC power supply on the coaxial cable is required:
  • Power supply to a mast amplifier or active antenna.
  • DC supply at duplex filters.
  • Spectrum analyzer with external preamplifier.
  • Provided with FME-male connector on input and output.
  • Quick installation using the dual-adhesive pad provided.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Miniature Junction Box 200002703

Login required

You need to be logged in into your account to view downloadable documents.

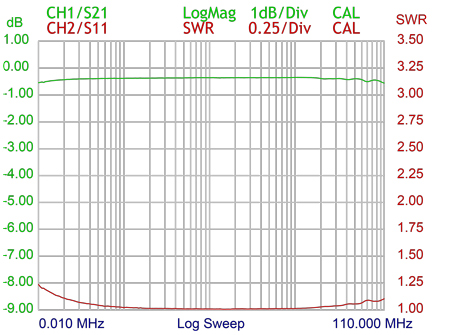

Typical Response VSWR

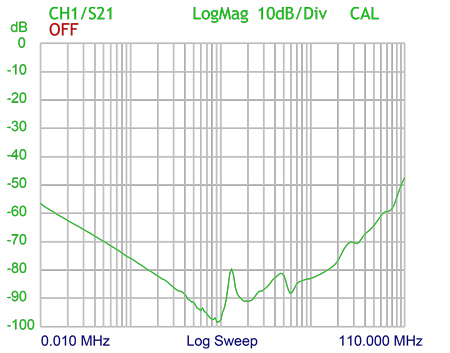

Typical Isolation RF-DC

Mechanical Outline

Functional Diagram

JB functional diagram

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type JB0.01-1G is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-JB.pdf
