JB1-1G-2G

Miniature Junction Box

Find Out More
Data Sheet
CE Certification

Other Files

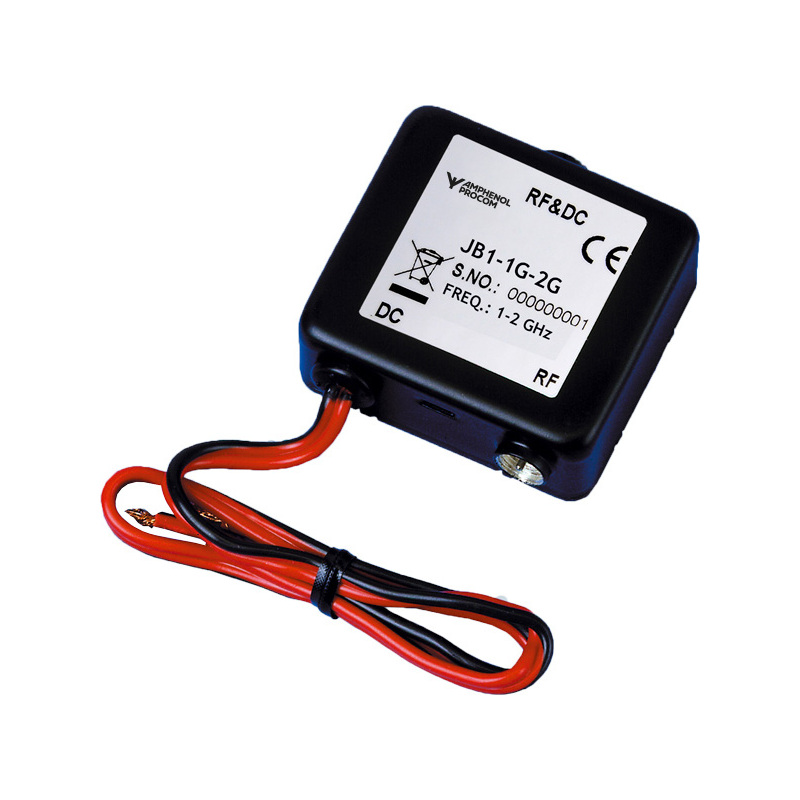

JB1-1G-2G
Electrical
Power Supply Red/black double cable
Model JB1-1G-2G
Frequency 1 – 2 GHz
Insertion Loss 0.6 dB typ. < 0.3 dB @ 1000 MHz
Max. Voltage 50 V
VSWR Max. <1.4:1 typ. < 1.3:1
Max. Current 500 mA
Isolation RF-DC Min. 50 dB
Mechanical
Connection(s) FME(m), 2 pcs. + flexible wire
Historic Brand Amphenol Procom
Dimensions 50 x 50 x 21 mm / 1.97 x 1.97 x 0.83 in.
Weight Approx. 0.065 kg / 0.14 lb.
  • Miniature junction box = coupling in or out of supply on the coaxial cable.
  • Large frequency range: 1 GHz → 2 GHz.
  • Excellent isolation between RF and supply : > 50 dB.
  • To be used where coupling in or out of supply on the coaxial cable is required:
  • Ppower supply to the mast amplifier
  • Supply block at the duplex filters
  • Spectrum analyzer and preamplifier.
  • Provided with FME-male connector on input and output.
  • Quick installation using the dual-adhesive pad provided.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Miniature Junction Box 200001184

Login required

You need to be logged in into your account to view downloadable documents.

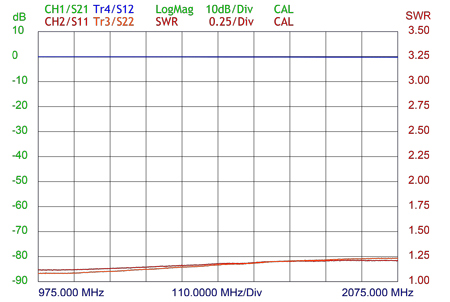

Typical response curve

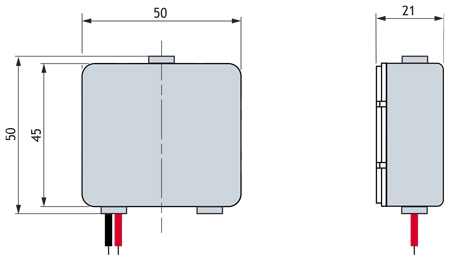

Mechanical Outline

JB0 01 110 mounting

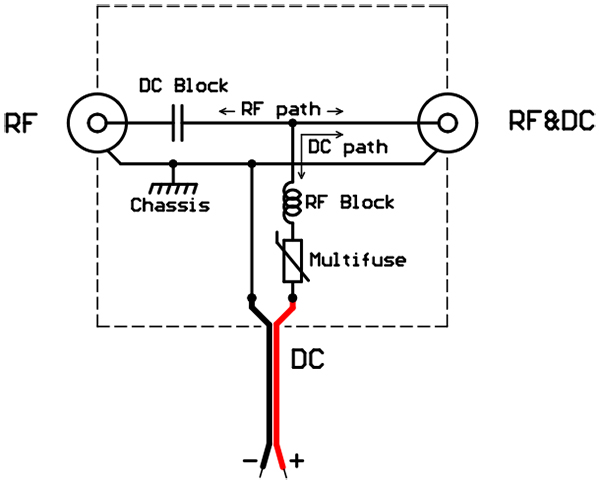

Functional Diagram

JB functional diagram

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type JB1-1G-2G is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-JB.pdf
