Heavy Duty Stainless Steel Parallel Clamps, 60-115 mm
Find Out MoreOther Files
| Electrical | |
| Model | JBL-HD |
|---|---|
| Mechanical | |
| Clamp Type | Cross clamp |
|---|---|
| Wind Area | 0.0396 sq. m / 0.43 sq. ft |
| Materials | Clamp body – stainless steel A2 / 304 Fixing – stainless steel |
| Tube 1 Size | 32 mm / 1.26 in. |
| Historic Brand | Amphenol Procom |

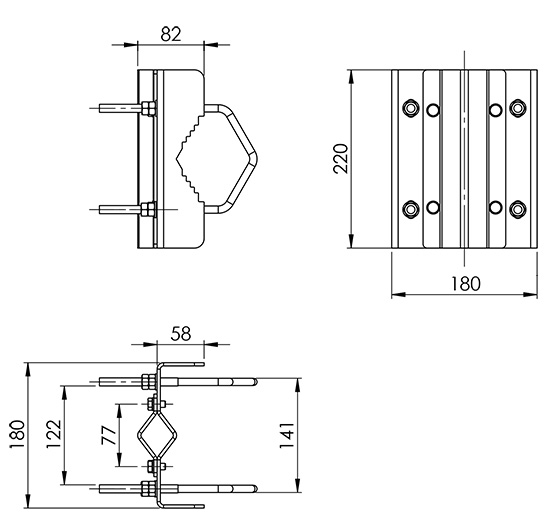

| Dimensions | See dimension details |
| Wind Load | 36 N (160km/h) |
| Tube 2 Size | 60 – 115 mm / 2.36 – 4.53 in. |
| Torque Max. | M8: 25 – 30 Nm M10: 33 – 40 Nm |
| Weight | Approx. 3.7 kg / 8.16 lb. |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Heavy Duty Stainless Steel Parallel Clamps, 60-115 mm | 100000992 |
