LBLAD-600

Lindenblad dipole array, FM broadcast

Find Out More
Data Sheet
CE Certification

Other Files

LBLAD-600
Electrical
Frequency 88 – 108 MHz
Max. Input Power 600 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Mixed
3 dB Beamwidth, E-Plane 65 °
Impedance 50 Ω
Gain 0.5 dBd (2.7 dBi)
VSWR < 1.2:1
Bandwidth Optimised for single transmit frequency
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 200 km/h
Mechanical
Elements 19 dia. x 1.6 mm wall aluminium alloy grade 6063T6
Connection(s) N(f) on 3m RG213/U cable
Dipole Boom 31.7 mm dia. x 2.6 mm wall aluminium alloy grade 6082T6
Fasteners Stainless steel grade A2-70
Element Clamps Diecast Al / Zinc alloy
Historic Brand Skymasts
Wind Load 221 N (160km/h)
Weight 17 kg / 37.48 lb
Mounting Bracket Welded flange bracket to suit 50mm support pole
Balun Encapsulant Polyurethane Resin U-600

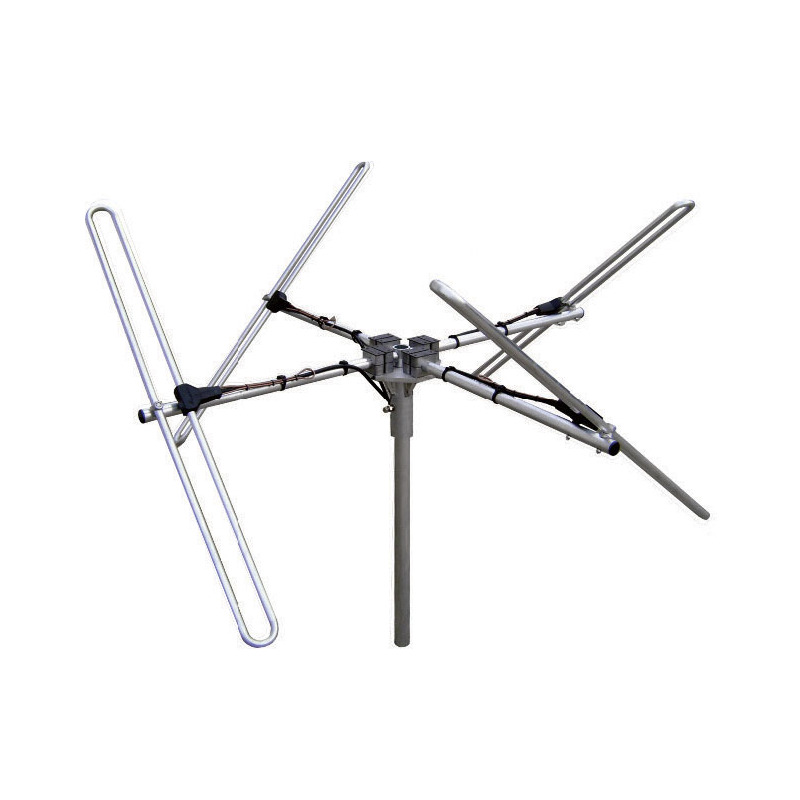

  • The S.LBLAD array is designed for mixed polarisation broadcast on FM radio systems. The array consists of four folded dipoles affixed to a rugged mounting bracket, fed in phase from a machined power splitter, to achieve an omnidirectional mixed polarisation antenna. The arrays give a maximum gain of 0.5dBd. The balun assembly is completely encapsulated in poyurethane resin, totally preventing moisture ingress. The power splitter / array input is terminated standard with an ‘N’ type female.
  • • Former Skymasts brand product.

RADIATION PATTERNS

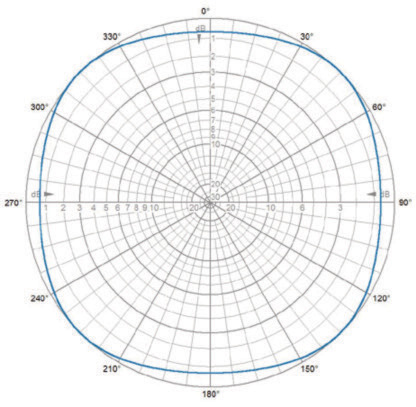

Azimuth | 98 MHz

Azimuth | 98 MHz

RADIATION PATTERNS

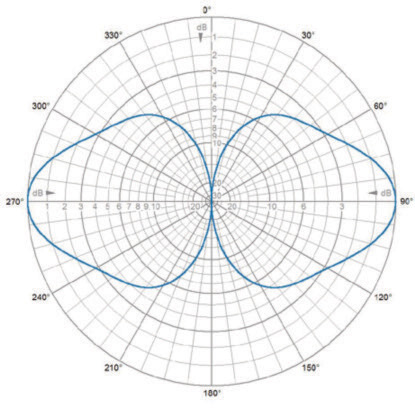

Elevation | 98 MHz

Elevation | 98 MHz
