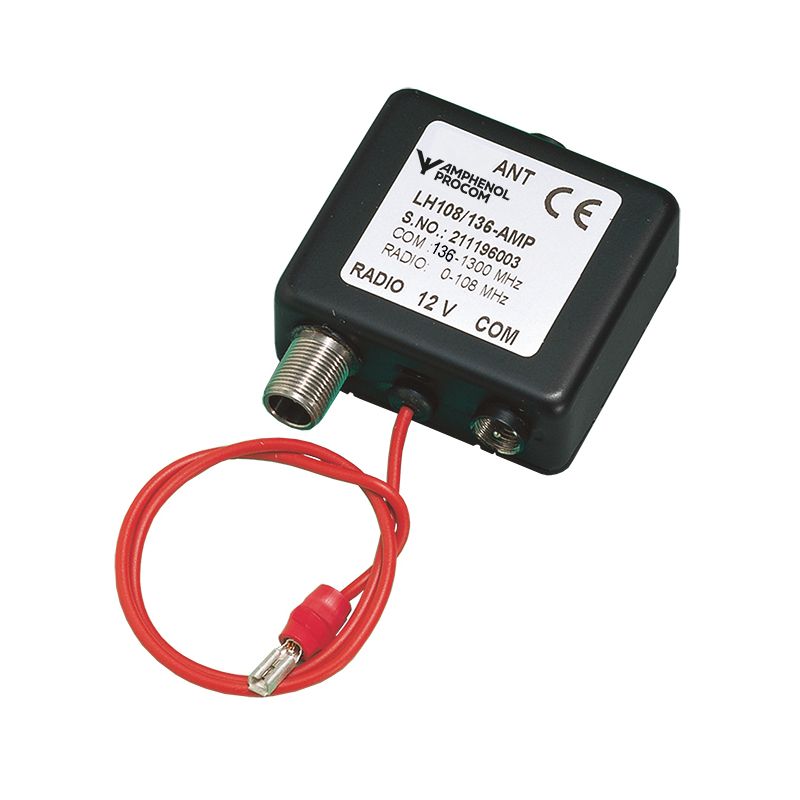

LH 108/136 AMP

Diplexer for Mobile Telephone (136 – 1300 MHz) and Car Radio (0 – 108 MHz) with built-in low noise amplifier

Find Out More
Data Sheet
CE Certification

Other Files

LH 108/136 AMP
Electrical
Power Supply +12 V from the car via CRC-connection or directly
Model LH 108/136 AMP
Frequency Mobile telephone : 136 – 1300 MHz
Car radio : 0 – 108 MHz
Max. Input Power 35 W
Amp. Gain 0 – 108 MHz : 6 dB
Insertion Loss 136 – 1300 MHz : 0.8 dB
Impedance COM : 50 Ω, VSWR < 1.5:1
Radio : 75 Ω
Current Consumption ~ 25 mA
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) Antenna : FME
COM : FME
Radio : CRC-Connector (M10 x 0.75)
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 60 mm / 1.97 x 0.83 x 1.97 in.
Weight Approx. 0.073 kg / 0.16 lb.
Accessories Car radio cable
Type 1 m CRC (length 1 m)
Type 5 m CRC (length 5 m)
  • Diplexer for simultaneous operation of mobile telephone and car radio on a common mobile radio antenna.
  • A single diplexer covers all communication bands 136 – 1300 MHz.
  • Built-in low-noise SMD-equipped amplifier in the car radio section gives freedom of choice of mobile telephone antenna.
  • Better reception of car radio signals due to the built-in low-noise amplifier.
  • Power supply of the low-noise amplifier via the car radio cable or by direct wiring.
  • Extremely compact.
  • Quick installation using dual-adhesive pad provided.
  • FME-connections on antenna and mobile telephone terminals
  • CRC connection (M10 x 0.75) on the car radio terminal.
  • Power supply 12 V to the low-noise amplifier via CRC-connection.
  • Procom 75 Ohm car radio cable available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Diplexer for Mobile Telephone (136 – 1300 MHz) and Car Radio (0 – 108 MHz) with built-in low noise amplifier 200000768

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curve

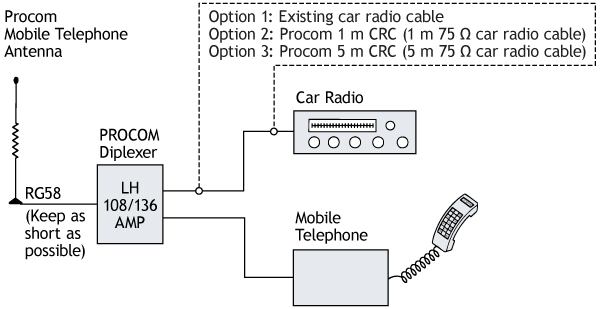

Connection diagram

Installation note
  1. The 50 Ω cable between antenna and diplexer should be kept as short as possible (preferably not over 1 m).
  2. Some communication antennas have insufficient height to ensure satisfactory broadcast reception. Only antenna whips with a height of at least 25 cm are acceptable.
  3. Tuning: The antenna is tuned for best VSWR at the operating frequency as usual. The filter is factory-tuned and ready for installation. The car radio is tuned for optimum reception on the MW-band by means of the antenna tuning screw (if present).
