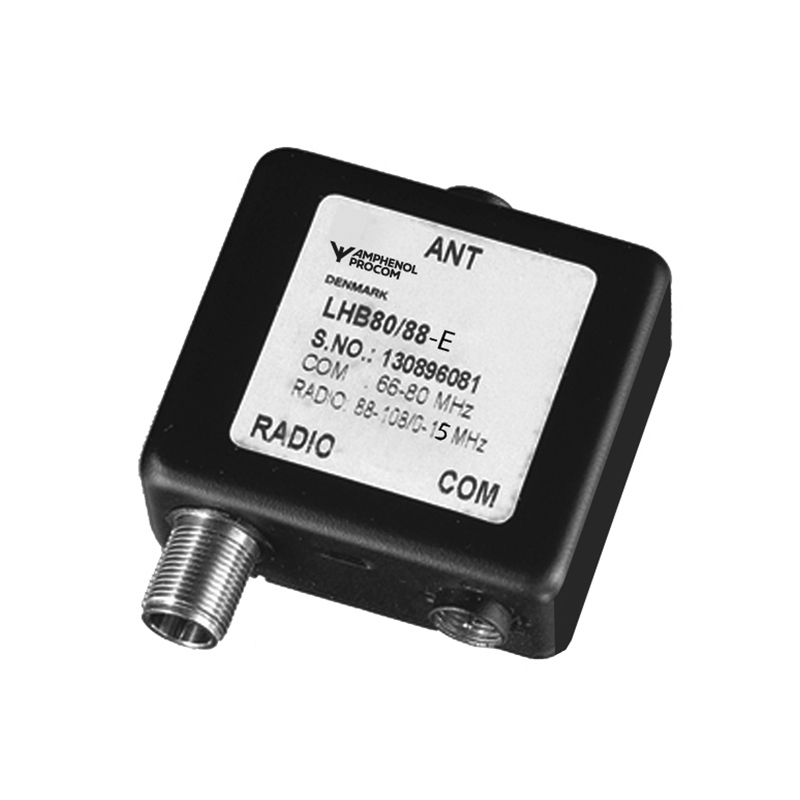

LHB 80/88-E

Diplexer for Mobile Telephone (66 – 86 MHz) and Car Radio (0 – 15 MHz and (88) – 91 – 108 MHz)

Find Out More
Data Sheet
CE Certification

Other Files

LHB 80/88-E
Electrical
Model LHB 80/88-E
Frequency Mobile telephone: 66 – 86 MHz
Car radio: 0 – 15 MHz and
(88) – 91 – 108 MHz
Max. Input Power 35 W
Insertion Loss 0 – 15 and 91 – 108 MHz: < 2.5 dB
(88 MHz: < 5.0 dB)
66 – 80 MHz: < 1.5 dB
80 – 86 MHz: < 2.0 dB
Impedance Transceiver : 50 Ω
Car radio : 75 Ω
Isolation Low to high port:
>20 dB @ 86 MHz
>20 dB @ 91 – 108 MHz
>35 dB @ 66 – 80 MHz
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) TX/RX : FME
Car radio: CRC-Connector (M10 x 0.75)
Antenna : FME
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 60 mm /
1.97 x 0.83 x 2.36 in.
Weight Approx. 0.067 kg / 0.15 lb.
Accessories Car radio cable
Type 1 m CRC (length 1 m)
Type 5 m CRC (length 5 m)
  • Diplexer for simultaneous operation of mobile telephone and car radio on a common mobile telephone antenna.
  • Extremely small dimensions.
  • Quick installation using dual-adhesive pad provided.
  • FME-connections on antenna and transceiver terminals
  • – CRC (M10 x 0.75) connection on the car radio terminal.
  • 1 m or 5 m Procom 75 Ω car radio cable available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Diplexer for Mobile Telephone (66 – 86 MHz) and Car Radio (0 – 15 MHz and (88) – 91 – 108 MHz) 200000787

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curve

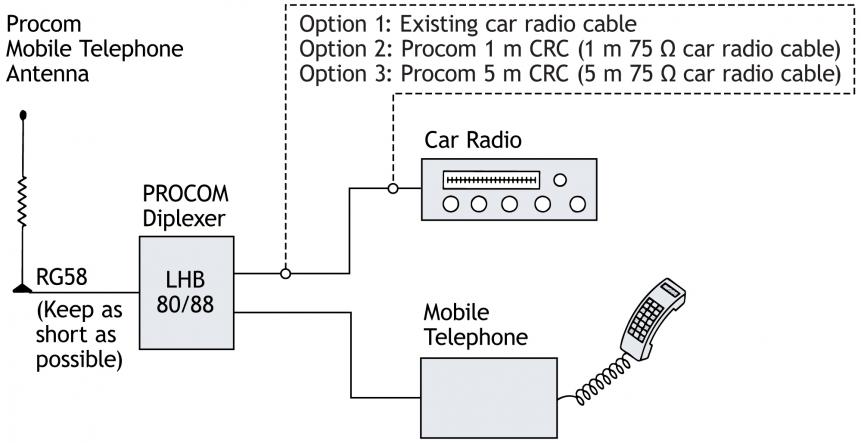

Installation

LHB 80 88 skema

Installation Notes
  1. The 50 Ω cable between antenna and diplexer should be kept as short as possible (preferably not over 1 m).
  2. Some communication antennas have insufficient height to ensure satisfactory broadcast reception. Antenna whips with loading coils or matching networks may affect broadcast reception.
  3. Tuning: The antenna is tuned for best SWR at the operating frequency as usual. The filter is factory-tuned and ready for installation. The car radio is tuned for optimum reception on the MW-band by means of the antenna tuning screw (if present).
