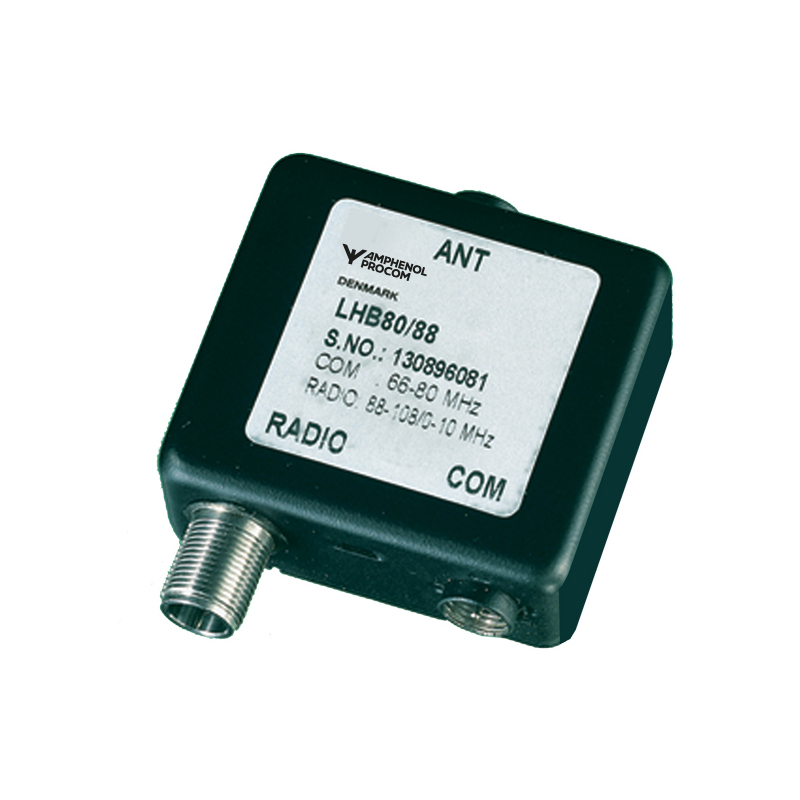

LHB 80/88

Diplexer for Mobile Telephone (66 – 80 MHz) and Car Radio (0 – 10 MHz and 88 – 108 MHz)

Find Out More
Data Sheet
CE Certification

Other Files

LHB 80/88
Electrical
Model LHB 80/88
Frequency Mobile telephone: 66 – 80 MHz
Car radio: 0 – 10 MHz and 88 – 108 MHz
Max. Input Power 35 W
Insertion Loss 0 – 10 and 88 – 108 MHz: 2.0 dB
66 – 80 MHz: 1.5 dB
Impedance See ordering section
Isolation Car radio port to COM port: >35 dB
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) Standard:
COM port: FME
ANT port: FME
Car radio port: CRC-connector (M10 x 0.75)
Aternative:
FME or SMA on all ports
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 60 mm /
1.97 x 0.83 x 2.36 in.
Weight Approx. 0.067 kg / 0.15 lb.
Accessories Car radio cable
Type 1 m CRC (length 1 m)
Type 5 m CRC (length 5 m)
  • Diplexer for simultaneous operation of mobile telephone and car radio on a common mobile telephone antenna.
  • Extremely small dimensions.
  • Quick installation using dual-adhesive pad provided.
  • FME-connections on ANT and COM PORTS
  • – CRC (M10 x 0.75) connection on the car radio port.
  • Also available with FME or SMA connector (50 ohm) on all ports.
  • 1 m or 5 m Procom 75 Ω car radio cable available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Diplexer for Mobile Telephone (66 – 80 MHz) and Car Radio (0 – 10 MHz and 88 – 108 MHz) LHB 80/88

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curve

Installation

Installation Notes
  1. The 50 Ω cable between antenna and diplexer should be kept as short as possible (preferably not over 1 m).
  2. Some communication antennas have insufficient height to ensure satisfactory broadcast reception. Antenna whips with loading coils or matching networks may affect broadcast reception.
  3. Tuning: The antenna is tuned for best VSWR at the operating frequency as usual. The filter is factory-tuned and ready for installation. The car radio is tuned for optimum reception on the
    MW-band by means of the antenna tuning screw (if present).
Ordering
 ModelProduct No.

Impedance

ANT / COM / Car radio port
LHB 80/88 200000770 50 ohm / 50 ohm / 75 ohm
LHB 80/88-3FME 200000772 50 ohm / 50 ohm / 75 ohm
LHB 80/88-3SMA 50 ohm 200000785 50 ohm / 50 ohm / 50 ohm
