LPU/R

UHF TV log periodic 468 – 860MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

LPU/R

Quickly identify the correct ordering code.

LPU/R
Electrical
Frequency 468 – 860 MHz
Max. Input Power 250 W
3 dB Beamwidth, H-Plane 70 °
Polarisation Linear (Vertical or Horizontal)
Impedance 50 Ω
Gain 7.9 dBd (10.1 dBi)
VSWR < 1.3:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
In iBwave Yes
Mechanical
Connection(s) N(f)
Materials Aluminium Alloy
Historic Brand Jaybeam
Dimensions 1210 x 320 mm / 47.64 x 12.60 in.
Weight 3.5 kg / 7.72 lb
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe

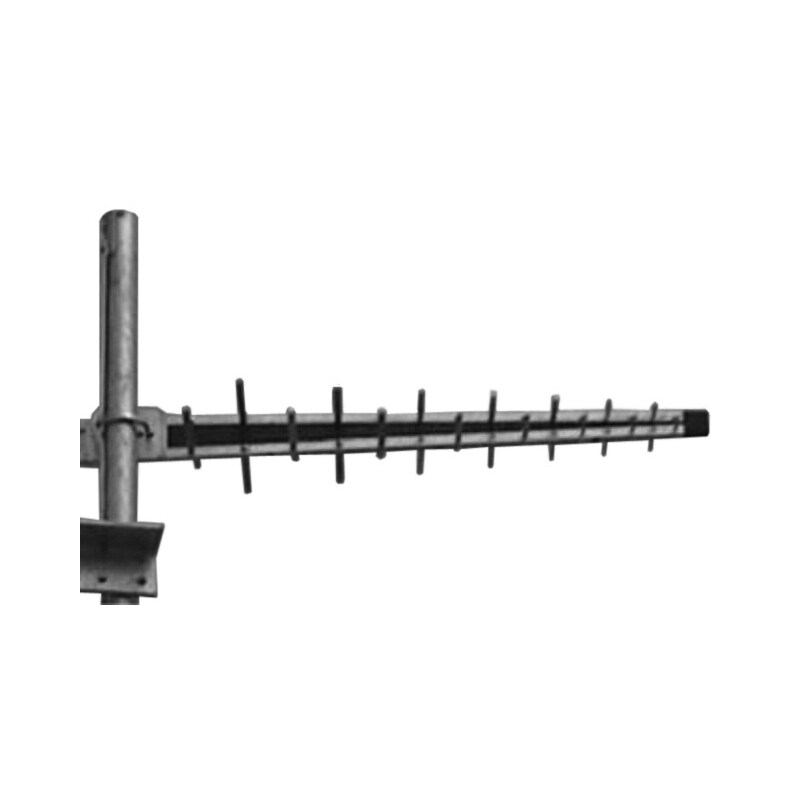

  • A rugged, high power directional antenna for UHF TV radio broadcast and relay. Using a log-periodic dipole array design, the antenna offers a stable pattern over the full UHF analogue / digital TV band.
  • • Former Jaybeam brand product.

RADIATION PATTERNS

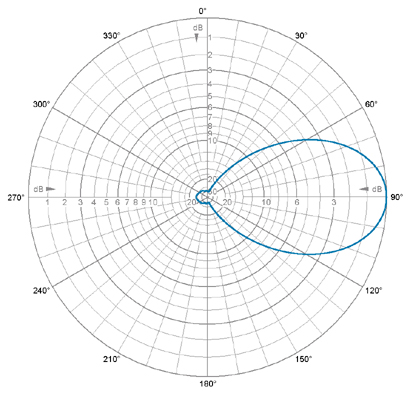

E-Plane | 664 MHz

E-Plane | 664 MHz

RADIATION PATTERNS

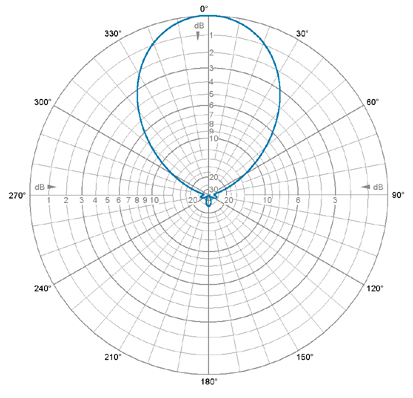

H-Plane | 664 MHz

H-Plane | 664 MHz

Model Product No. FrequencyAdditional Information Add To Quote

UHF TV log periodic 468 – 860MHz

 LPU/R-7/16 468 – 860 MHz 7/16(f) termination

UHF TV log periodic 468 – 860MHz

 LPU/R-N 468 – 860 MHz N(f) termination
