LW-SS-1″

Universal Stainless Steel Mast Mounting Clamp for Antennas Based on Mounting on 1” Threaded Tube

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

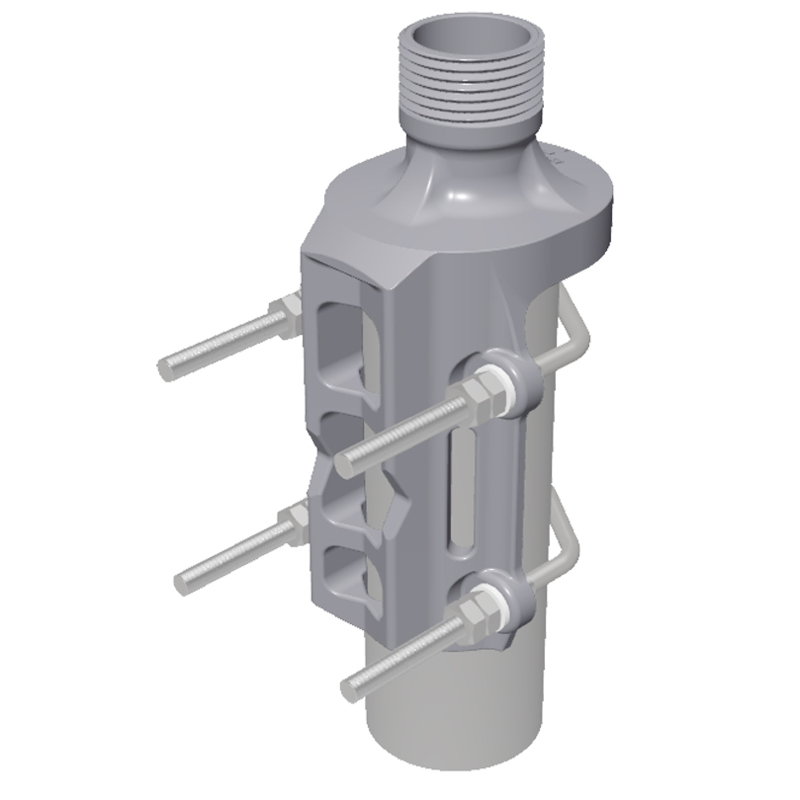

LW-SS-1"

Quickly identify the correct ordering code.

LW-SS-1″
Electrical
Model LW-SS-1″
Application Universal clamp for mounting antennas for 1″ water pipe fixation on other kinds of vertical or horizontal mast tubes
Mechanical
Materials Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolts and fittings : Stainless steel (AiSi 316L)
Historic Brand Amphenol Procom
Dimensions See drawing
Weight Approx. 0.52 kg / 1.15 lb.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
  • Using the LW-SS-1” universal mast mounting clamp all antennas specifically designed for mounting on 1” water pipe can be mounted on any kind of horizontal or vertical supporting mast tube, as long as the outer diameter of the tube is within 16 to 54 mm.
  • The mounting bracket is made of stainless steel which makes it ideal for marine environments.
  • Inside the marine sector the 1” water pipe mounting system for antennas has gained worldwide acceptance.The antennas are equipped with a revolving nut, which fits 1” RG (G1” – 11) threaded water pipe.
  • The construction of the clamp makes it possible to run the downlead cable either along the inside or on the outside of the mast tube.
  • Available as ATEX version, when equipotential bonding is not obtained through the mounting bracket and the need for a grounding kit is present.
  • Using the GP adaptor (to be ordered separately) the LW-SS-1″ can be used for GP antennas with GP heads.
  • The LW-SS-1” mounting clamp is a member of a complete family of different mounting clamps for 1”-pipe-mount antennas. Below the complete programme is shown. Using the LW-SS-1” or one of these accessory items, a vast majority of all installations can be undertaken.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

LW-SS-1″

 110000394 n/a

LW-SS-1″

 115000102 ATEX Grounding kit included

Login required

You need to be logged in into your account to view downloadable documents.

Installation Details

LW-SS-1tom-installation

Mounting Details

LW-SS-1tom-mounting-M6

ATEX Grounding Kit

ATEX-Grounding-kit 600x

GP Adaptor

LW-SS-1tom-GP-adaptor-450x

The GP Adaptor needs to be ordered separately.

LW-SS-1″ with GP Adaptor

LW-SS-1tom-GP-mounting-450x
