LW-SS-GP

Universal Mast Mounting Clamp for Ground-plane Antennas with 38 mm GP head

Find Out More
Data Sheet
CE Certification

Other Files

LW-SS-GP
Electrical
Model LW-SS-1″ with GP Adaptor
Application Universal clamp for mounting GP- antennas with GP heads for 38 mm mast tubes on vertical or horizontal mast tubes with 16 – 54 mm diameter
Mechanical
Materials Mounting bracket: Stainless steel (AiSi 316L)
Historic Brand Amphenol Procom
Dimensions See drawing
Weight Approx. 0.75 kg / 1.65 lb.
Mounting On 16 to 54 mm dia. mast tube
  • Using the combination of the LW-SS-1″ mast mounting clamp and the GP adaptor (to be ordered separately), all ground-plane antennas with a 38 mm GP-Head (specified under mounting) can be mounted on any kind of horizontal or vertical supporting mast tube, as long as the tube’s outer diameter is between 16 and 54 mm.
  • The accompanying U-bolts and nuts are made of stainless steel.
  • The construction of the clamp makes it possible to run the downlead cable either along the inside or on the outside of the mast tube.
  • Please note that an antenna should always be mounted as high and as unobstructed as possible. Objects in the vicinity of the antenna, especially parallel metallic parts (other antennas, wires etc.) may have considerable degrading influence on the VSWR and the radiation pattern of the antenna.
  • The GP Adaptor is to be tightened with approx 35 – 40 Nm before installation.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Universal Mast Mounting Clamp for Ground-plane Antennas with 38 mm GP head 110000394A

Login required

You need to be logged in into your account to view downloadable documents.

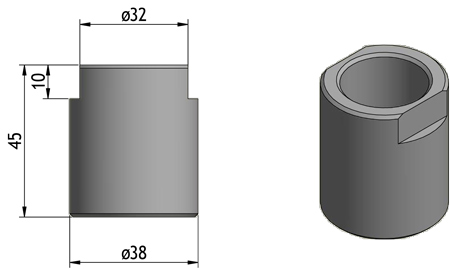

Dimensions
 LW-SS-1tom-GP-adaptor-450x

The GP Adaptor need to be ordered separately

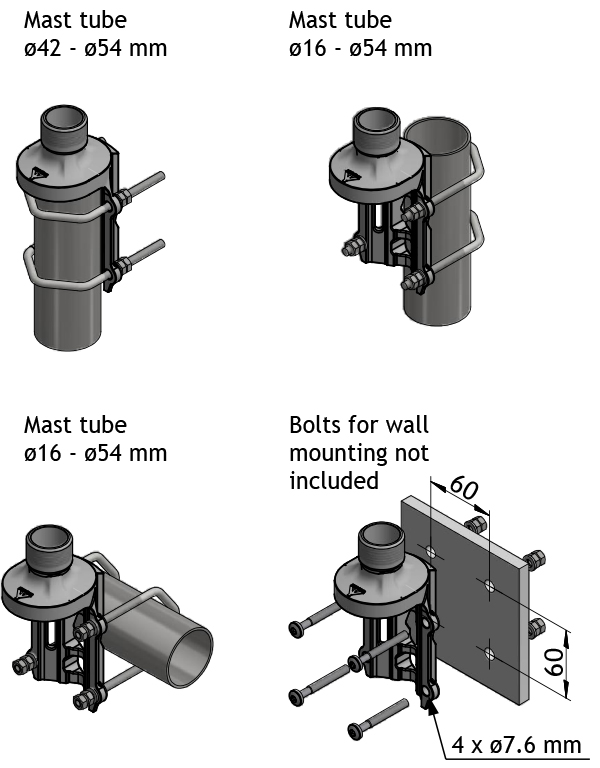

Installation Details

LW-SS-1tom-installation

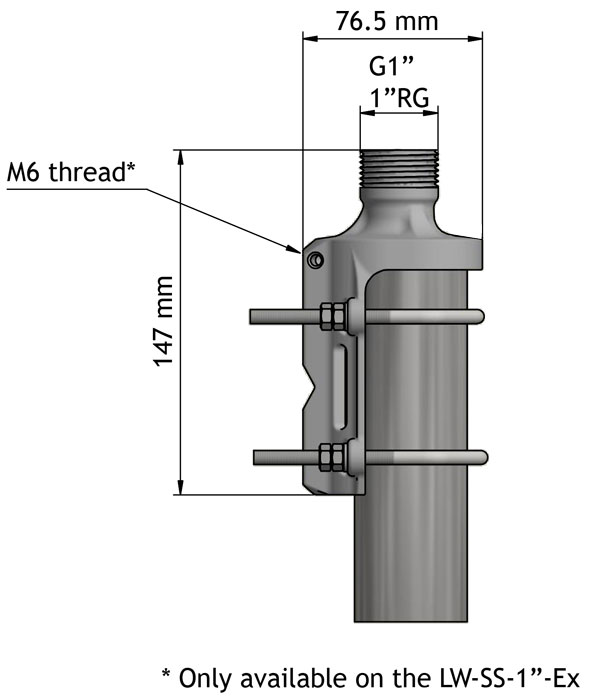

Mounting Details

LW-SS-1tom-mounting-M6

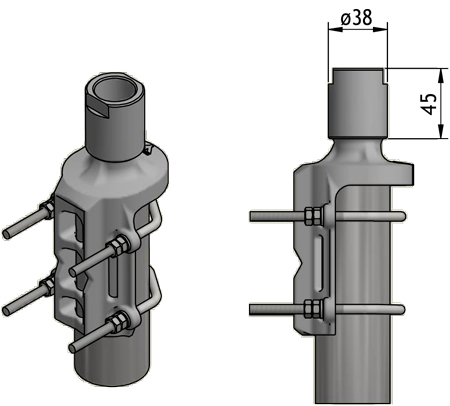

LW-SS-GP (LW-SS-1″ with Adaptor)

LW-SS-1tom-GP-mounting-450x
