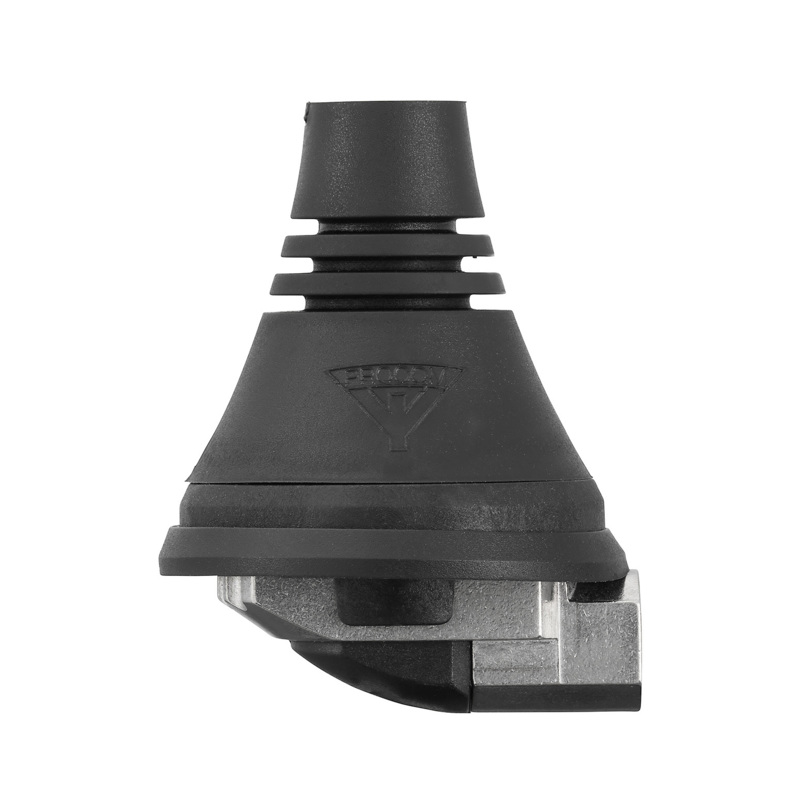

LX-Mount
Electrical
Frequency 150 – 2400 MHz
Application Mount for mobile antennas
Mechanical
Installation Diameter 31.5 mm / 1.24 in.
Build-In Depth Active : 25 mm
Passive : 11 mm
Connection(s) FME-connection system (supplied without cable)
Materials Stainless steel
Cu-nite brass
Environment-proof plastics
Installation Torque 3.5 Nm max.
Colour Black
Historic Brand Amphenol Procom
Height Approx. 30 mm / 1.18 in.
Whip Connection M5 internal thread
Weight Approx. 0.022 kg / 0.05 lb.
Mounting 18 mm dia. hole
Mounting Plate Thickness Max. 2 mm
  • Professional quality in an elegant and smooth design.
  • Wind tunnel optimized pyramidical shape.
  • Especially suited for roof-mounting.
  • Low installation depth.
  • Built-in bendable section for adjustment of the whip (tiltable 15° by hand).
  • Internal M5 thread whip-fastening system.
  • Total height of only 30 mm – satisfies the EC-directive 79/488/EEC.
  • Stainless steel mounting body.
  • Provided with FME-connection system – cable to be ordered separately.
  • Designed for the future – works up to and beyond 2400 MHz.
  • Whips available for communications systems in the frequency range 150 – 2400 MHz.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Mini Mobile Mount for Antennas up to 2400 MHz 130000371

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof toensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in directcontact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.When cleaning the car in car-washing machines, the whip should be removed. After wash, the whip is refitted and tightenedlightly.The mount is equipped with a bendable section (±15˚;) to make it possible to adjust the antenna to an upright position.

1. Installation Dimension

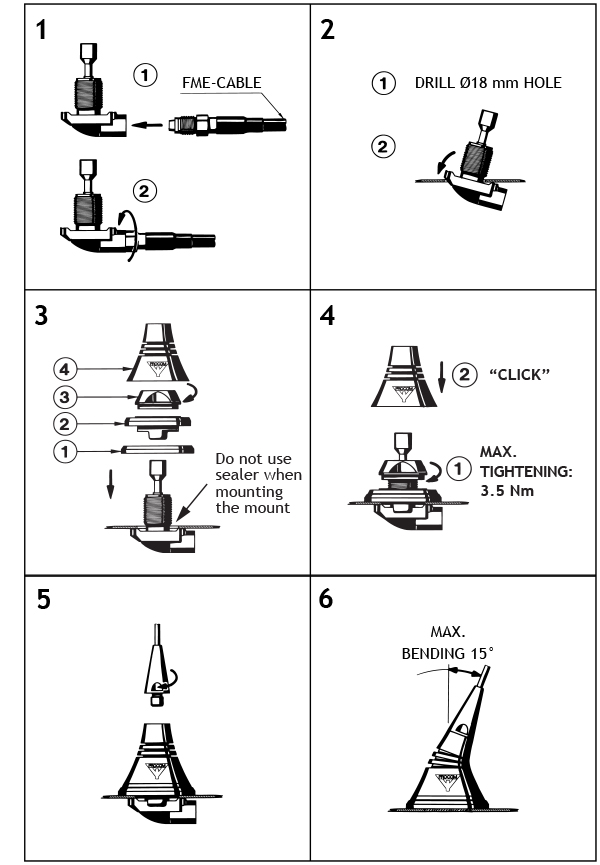

2. Installation Steps

LX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

Please Note

When tightening the revolving nut (see picture 4), special care must betaken to keep the spanner in the correct position.

Ordering Designation

Order this mount by simply asking for the LX (or LX-mount). Cable is to be ordered separately.
