MA 160/…

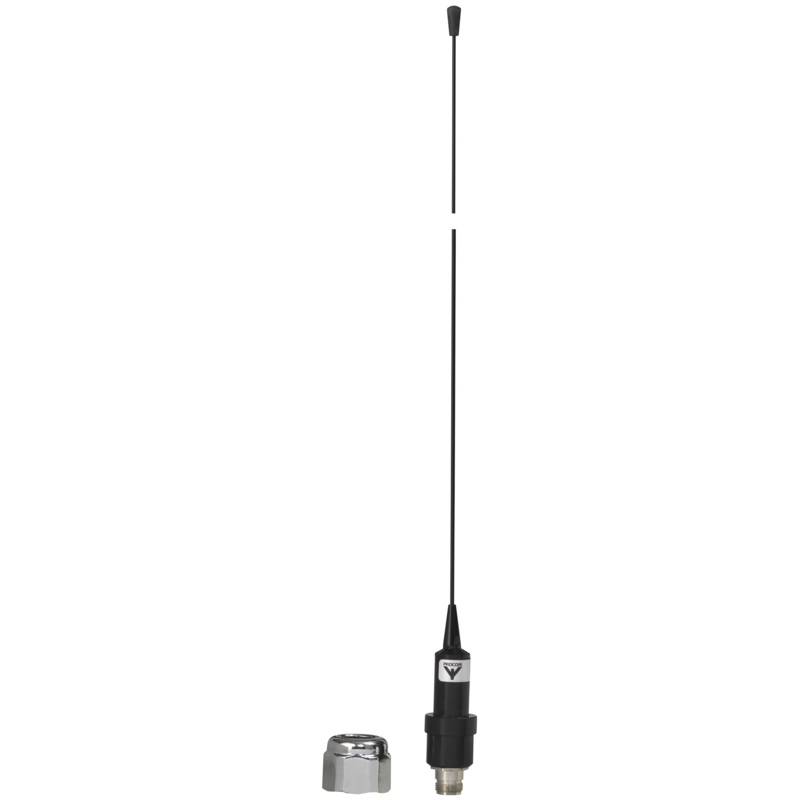

End-fed ½ λ dipole marine and base station antenna.

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MA 160/...

Quickly identify the correct ordering code.

MA 160/…
Electrical
Model MA 160/…
Frequency Models within 149 – 175 MHz
Antenna Type ½ λ antenna
Max. Input Power 25 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR ≤ 2.0:1 typ. ≤ 1.5:1
Bandwidth Up to 15 MHz
Mechanical
Connection(s) N(f)
Materials Black-chromed stainless steel
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 800 mm / 31.50 in.
Weight Approx. 0.22 kg / 0.49 lb.
  • Black-chromed stainless steel whip.
  • Full-size, end-fed ½ λ antenna whip.
  • This base station and maritime VHF antenna is developed for use on board ships as well as on masts and thanks to the 1” revolving nut mounting system it can be mounted in the mast, in the auxilliary mast as well as on the cross-beam. By means of Procom’s flange mount it can also be mounted on deck or rooftop.
  • Bear in mind that the higher the antenna is mounted the better the coverage.
  • Avoid mounting the antenna parallel with and in the neighbourhood of other metal parts, such as mast, supporting wires etc. Free mounting and as high as possible is most preferable, otherwise the VSWR and the radiation diagram will be influenced.
  • The antenna is a ½ λ design and this means that it needs neither loading coils, ground-plane, radials nor other auxiliary arrangements.

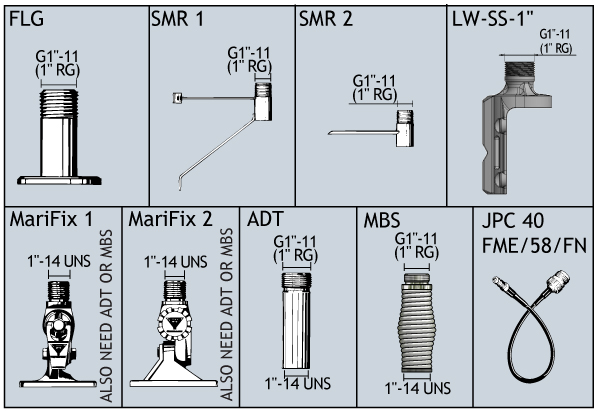

ACCESSORIES (to be ordered separately)

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL SWR CURVE

Model Product No. Frequency Add To Quote

MA 160/149-164 MHz

 110000340 149 – 164 MHz

MA 160/156-162.5 MHz

 110000350 156 – 162.5 MHz

MA 160/164-170 MHz

 110000351 164 – 170 MHz

MA 160/165-173 MHz

 110000477 165 – 173 MHz

MA 160/167-175 MHz

 110000358 167 – 175MHz

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Note

Other frequencies on request.
