MA100PQ01

TETRA low profile antenna 380..430MHz

Find Out More
Data Sheet
CE Certification

Other Files

MA100PQ01
Electrical
Model MA100PQ01
Frequency 380..430 MHz (Adjust tuning screw for centre frequency)
Max. Input Power 20 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0dBd / 2.2dBi
VSWR < 1.5:1
In iBwave Yes
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP65
Mechanical
Connection(s) No connector** + 5m of RG58 cable
Materials Radome, black polypropylene
Base, aluminium
Historic Brand Jaybeam
Dimensions 178 x 35 mm / 7.0 x 1.4 in.
Weight Approx. 0.45 kg / 0.99 lb.
Mounting 8 x 3.3 mm dia. holes in base plate provided for mounting.

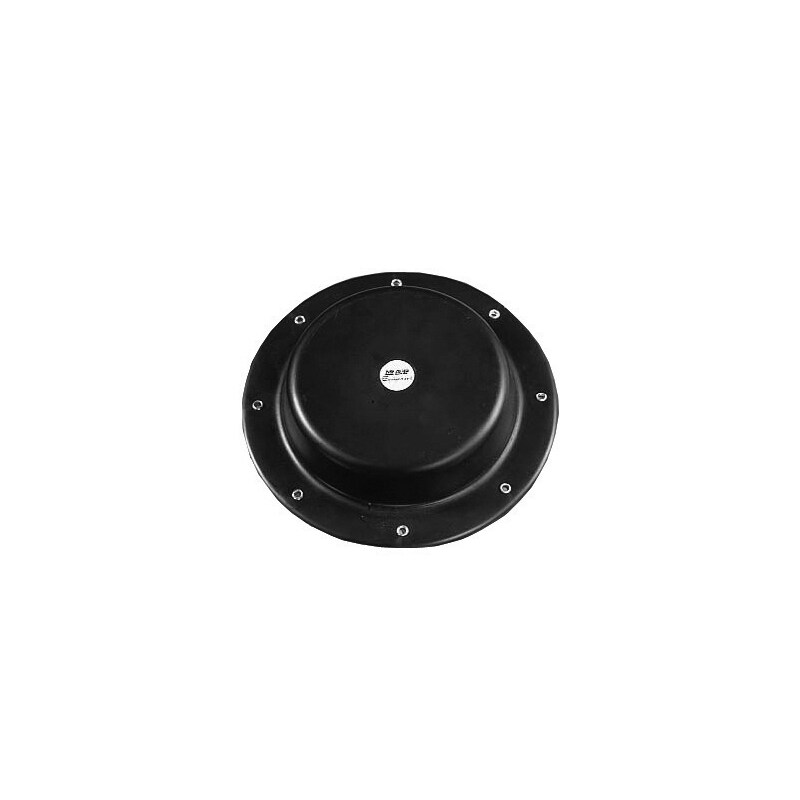

  • An omnidirectional, low profile, fully shrouded UHF antenna for indoor or vehicle roof applications.
  • Although designed to be installed on a metal surface, good performance can also be achieved on non-metallic surfaces.
  • The antenna is usertuned by adjusting a screw under the base to achieve best performance at the operating frequency.
  • This antenna is supplied with 5m coaxial cable with no connector on the end. Please order the desired connector style separately.
  • Former Jaybeam brand product.

RADIATION PATTERNS

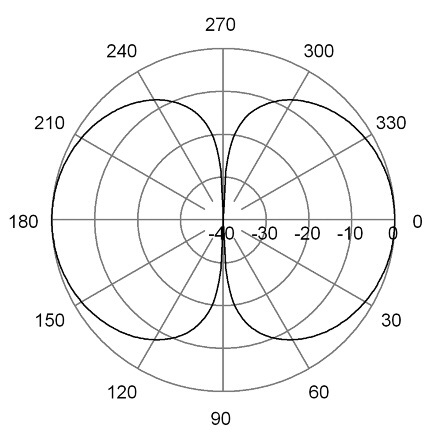

E-Plane | 405 MHz

E-Plane | 405 MHz

RADIATION PATTERNS

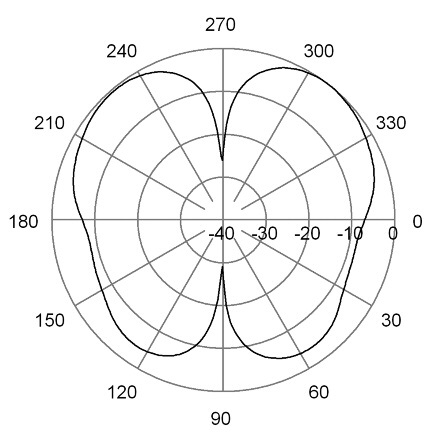

E-Plane | 405 MHz | Metallic Surface

E-Plane | 405 MHz | Metallic Surface

RADIATION PATTERNS

H-Plane | 405 MHz

H-Plane | 405 MHz

Model Product No. Add To Quote
TETRA low profile antenna 380..430MHz MA100PQ01
