MA100RS00

UHF low profile antenna, 430..480MHz

Find Out More
Data Sheet
CE Certification

Other Files

MA100RS00
Electrical
Model MA100RS00
Frequency 430..480MHz (Adjust tuning screw for centre frequency)
Max. Input Power 20 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0dBd / 2.2dBi
VSWR < 1.5:1
In iBwave Yes
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP65
Mechanical
Connection(s) No connector** + 5m of RG58 cable
Materials Radome, black polypropylene
Base, aluminium
Historic Brand Jaybeam
Dimensions 178 x 35 mm / 7.0 x 1.4 in.
Weight Approx. 0.45 kg / 0.99 lb.
Mounting 8 x 3.3 mm dia. holes in base plate provided for mounting.

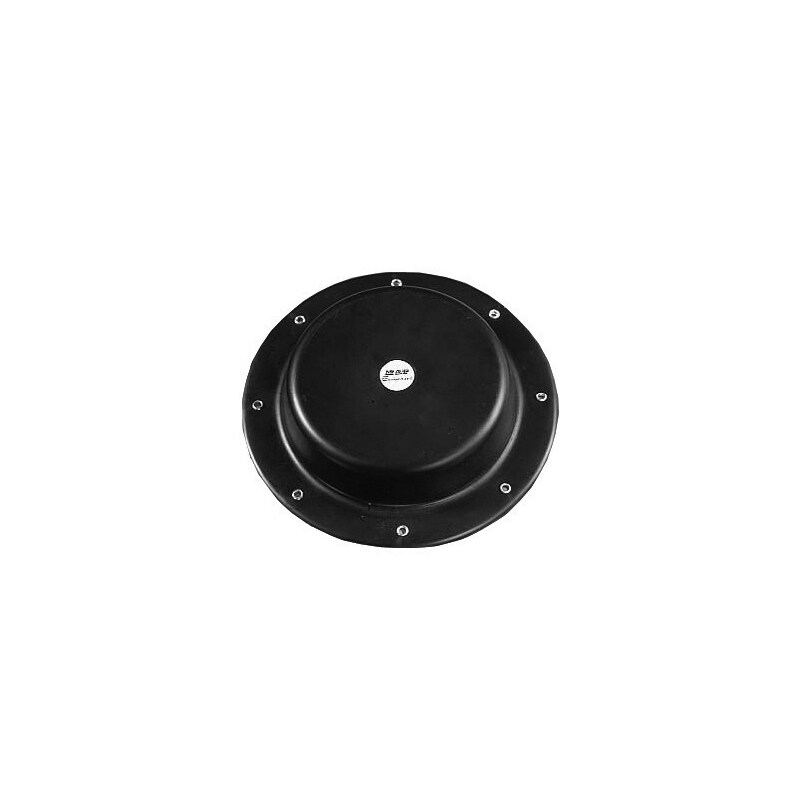

  • An omnidirectional, low profile, fully shrouded UHF antenna for indoor or vehicle roof applications.
  • Although designed to be installed on a metal surface, good performance can also be achieved on non-metallic surfaces.
  • The antenna is usertuned by adjusting a screw under the base to achieve best performance at the operating frequency.
  • This antenna is supplied with 5m coaxial cable with no connector on the end. Please order the desired connector style separately.
  • Former Jaybeam brand product.

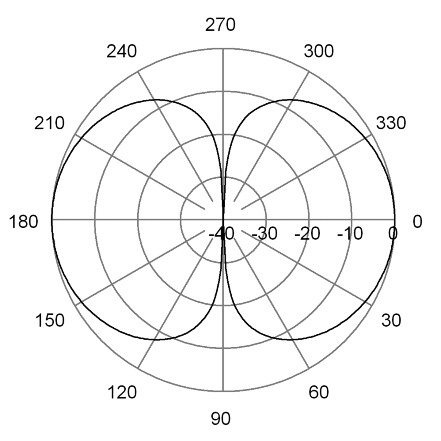

RADIATION PATTERNS

E-Plane | 455 MHz

E-Plane | 455 MHz

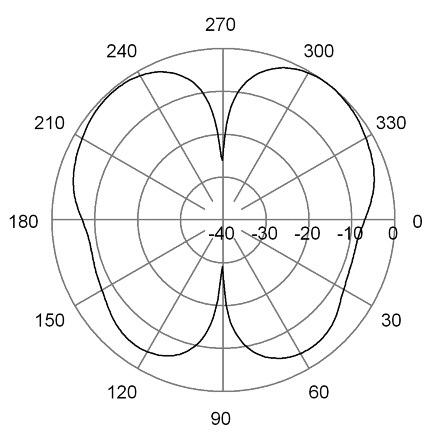

RADIATION PATTERNS

E-Plane | 455 MHz | Metallic Surface

E-Plane | 455 MHz | Metallic Surface

RADIATION PATTERNS

H-Plane | 455 MHz

H-Plane | 455 MHz

Model Product No. Add To Quote
UHF low profile antenna, 430..480MHz MA100RS00
