MARCELL 3+

3-Band Marine Antenna System Covering FM-Radio, Maritime VHF and 900 MHz Cellular (EGSM/NMT-900)

Find Out More
Data Sheet
CE Certification

Other Files

MARCELL 3+
Electrical
Model MARCELL 3+
Frequency FM Radio : 87.5 – 108 MHz
Maritime VHF Marítima : 155 – 162 MHz
EGSM : 890 – 960 MHz
Antenna Type Triple-band marine antenna
Max. Input Power 35 W on each filter port
10 W on 880 – 2200 MHz filter port
(100 W for the antenna)
Filter Frequency VHF Radio : 144 – 175 MHz (COM1)
Mobile telephone : 880 – 2200 MHz (COM2)
Car radio : 0 – 108 MHz (RADIO)
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Antenna Gain 2 dBi 0 dBd on both VHF and EGSM
Antenna VSWR Tx : 1.5:1
Rx : 2.5:1
Filter Insertion Loss 0 – 108 MHz : 1.0 dB
144 – 175 MHz : 0.8 dB
880 MHz – 2.2 GHz : 0.7 dB
Filter Isolation COM1 to COM2 : 40 dB
COM1 to car radio : 5 dB
COM2 to car radio : 45 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Adaptor Cable 40 cm RG 58
Wind Area 0.013 sq. m / 0.14 sq. ft
Connection(s) Antenna : N(f)
Filter : COM1, COM2,
Antenna : FME
Car radio : CRC-connector (M10 x 0.75)
Jumper cable : FME(f) and N(f)
Cable Not supplied. Min. RG 213 recommended.
Colour Marine white
Historic Brand Amphenol Procom
Antenna Materials Shroud : Polyurethane coated glass fibre
Mounting bracket : Chromed brass
Wind Load 15 N (160 km/h)
Antenna Height Approx. 1.1 m / 43.31 in.
Dia. At Top End 8 mm / 0.31 in.
Dia. At Bottom End 16 mm / 0.63 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
Filter Dimensions (W X H X D) 50 x 21 x 50 mm / 1.97 x 0.83 x 1.97 in.
Antenna Weight Approx. 0.4 kg / 0.88 lb.
  • Complete package for FM-Radio, maritime VHF and 900 MHz cellular
  • all you need extra is a downlead cable.
  • The antenna is mounted using the 1” revolving nut system and easily replaces the existing antenna – the downlead cable may be reused.
  • The system comprises:
  • CXL-VHF/GSM dual-frequency antenna,
  • TRI 2/900-1800-UMTS/FM splitting filter to connect the FM-Radio marine VHF radio and a mobile telephone to one antenna,
  • JPC 40 FME/58/FN jumper cable.
  • One antenna – three bands:
  • Covers FM-Radio (87.5 – 108 MHz), maritime VHF (155 – 162 MHz) and 900 MHz cellular (890 – 960 MHz),
  • 0 dBd on maritime VHF (155 – 162 MHz) and EGSM (880 – 960 MHz), Exploits the mast head space optimally.
  • Eliminates interference problems between two closely mounted antennas.
  • Only one downlead cable necessary.
  • Mount the antenna as high as possible and unobstructed by metal objects.
  • Wide range of accessory mounting brackets available (see next page).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
3-Band Marine Antenna System Covering FM-Radio, Maritime VHF and 900 MHz Cellular (EGSM/NMT-900) 110000129

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data
sheets under accessories in our catalogue.

FME-CABLES
TYPE PRODUCT NO.
1 m FME 130000437
2 m FME 130000447
3 m FME 130000457
4 m FME 130000466
5 m FME 130000474
6 m FME 130000483
4 m FME-white 110000064
6 m FME-white 110000066
12 m FME-white 110000068
18 m FME-white 110000069
FME-CONNECTORS
TYPE PRODUCT NO.
FME-FME 130000583
FME-P
(Prolongation)		 130000565
FME-N 130000571
FME-FSMA
(Female-SMA)		 130000578
FME-BNC 130000566
FME-TNC 130000569
FME-UHF 130000572
FME-MUHF
(Mini-UHF)		 130000573
FME-EMUHF
(Elbow-MUHF)		 130000582
FME-EBNC
(Elbow-BNC)		 130000580
FME-ETNC
(Elbow-TNC)		 130000581
FME-SMA 130000577
Typical response curve

Typical Radiation Pattern (H-Plane)

Typical Radiation Pattern (E-Plane)

Accessories (to be ordered separately)

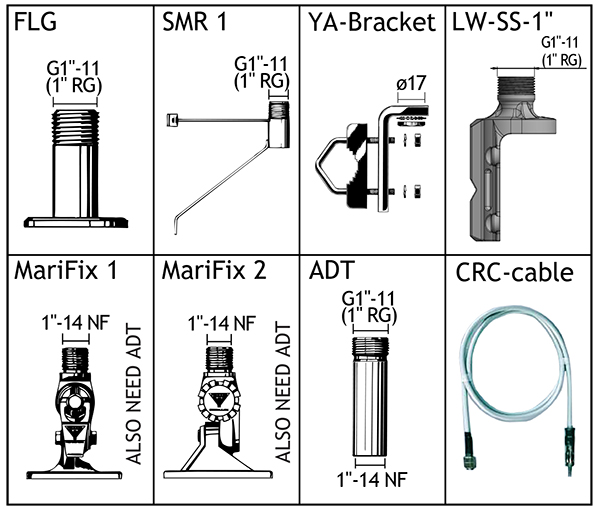

marcell 3 bjaelke acc samlet
