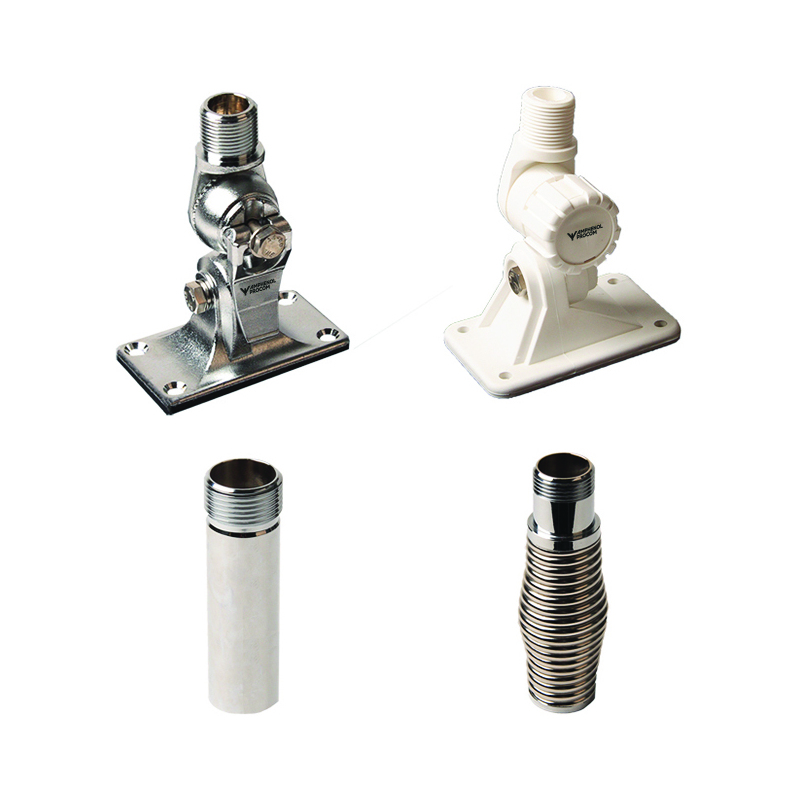

Marifix 1 / Marifix 2 / ADT / MBS

Marine 4-Way Swivel Ratchet Mounts, Adapter Tube, Marifix Barrel Spring

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

Marifix 1 / Marifix 2 / ADT / MBS

Quickly identify the correct ordering code.

Marifix 1 / Marifix 2 / ADT / MBS
Electrical
Model
MariFix 1MariFix 2ADTMBS
Application
Deck or bulkhead mount for marine antennasDeck or bulkhead mount for marine antennasAdapting tubeAdapting spring
Mechanical
Materials
Chromed brassPolycarbonateChromed brassChromed brass
Colour
Bright chromeMarine whiteBright chromeBright chrome
Historic Brand Procom
Dimensions
96 x 56 x 129 mm /
3.78 x 2.20 x 5.08 in.104 x 66 x 130 mm /
4.10 x 2.60 x 5.12 in.33 x 110 mm dia. /
1.30 x 4.33 in. dia.51 x 131 mm dia. /
2.01 x 5.16 in. dia.
Antenna Height
Max. 4.5 mMax. 2.0 m––
Weight
Approx. 0.81 kg / 1.80 lb.Approx. 0.22 kg / 0.50 lb.Approx. 0.19 kg / 0.42 lb.Approx. 0.7 kg / 1.54 lb.
Thread Type
1”-14 NF1”-14 NFTop (ext.): G1”-11 (1” RG)
Bottom (int.): 1”-14 NFTop (ext.): G1”-11 (1” RG)
Bottom (int.): 1”-14 NF
  • MariFix1 / MariFix 2
  • The 4-way swivel ratchet mounts permit mounting of marine antennas on slanted decks, cabin roofs or bulkheads mounting.
  • Fast-release locking mechanisms allows antenna to fold down.
  • Vibration secure and fast-release locking mechanisms make tilting and complete lay-down of the antenna quick and easy.
  • The MariFix 1 is made of chromed brass.
  • The MariFix 2 is made of UV resistant polycarbonate.
  • Max. antenna height with the MariFix 1 and MariFix 2 mounts
  • MariFix 1: Max. 4.5 m
  • MariFix 2: Max. 2.0 m
  • To prevent damage it is recommended to lay down long antenna elements when the vessel is operated at high speed.
  • The Marifix mounts are delivered with stainless steel screws/bolts, spring washers, and bolts along with a gasket.
  • ADT
  • Use the ADT adapting tube or MBS to fix antennas (based on mounting with revolving nut on 1” threaded water pipe) on the MariFix 1 / MariFix 2.
  • MBS
  • The MBS (MariFix Barrel Spring) is designed to move and flex with the antenna to prevent damage from strong winds or low hanging objects.
  • The MBS is designed to move and flex with the antenna to prevent damage from strong winds or low hanging objects.
  • The barrel spring is made from stainless steel for long lasting finish.
  • Max. antenna height: 1.2 m.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

MariFix 1

 110000050 Heavy-duty, chromed brass ratchet mount for deck or bulkhead mounting.

MariFix 2

 110000048 Medium-duty, polycarbonate ratchet mount for deck or bulkhead mounting.

ADT

 110000049 Adapting tube.

MBS

 110000323 MariFix Barrel Spring

Login required

You need to be logged in into your account to view downloadable documents.

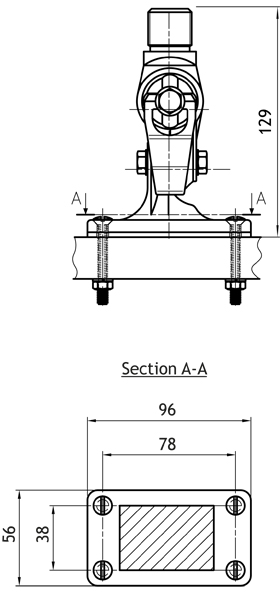

MariFix 1

Marifix1-montering-280x

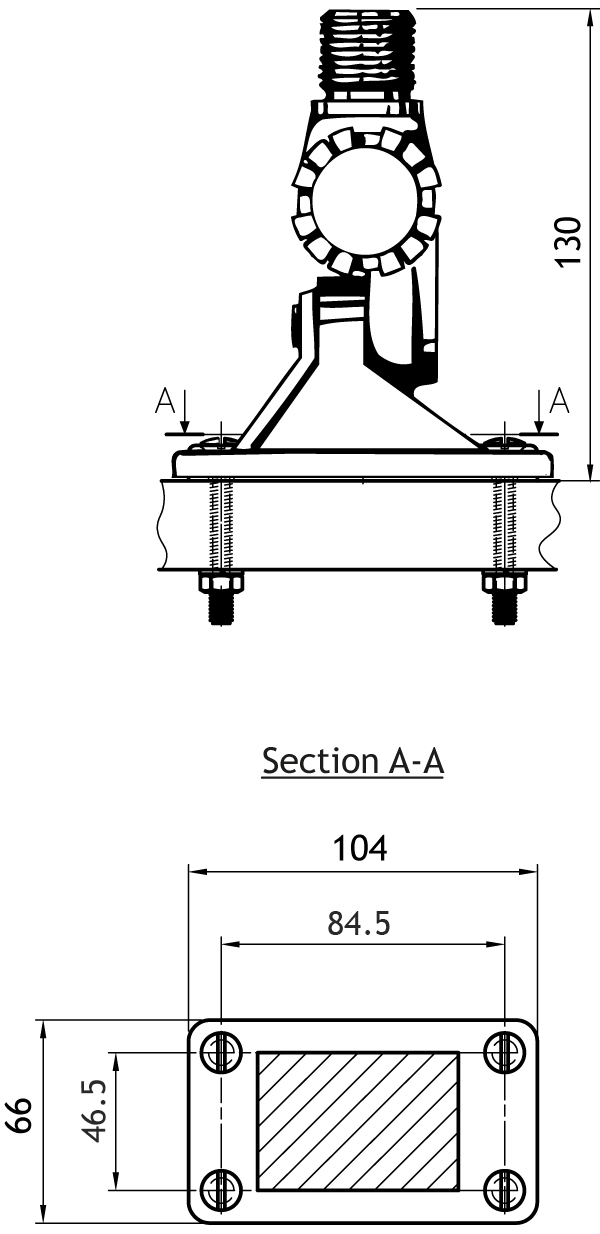

MariFix 2

Marifix2 montering

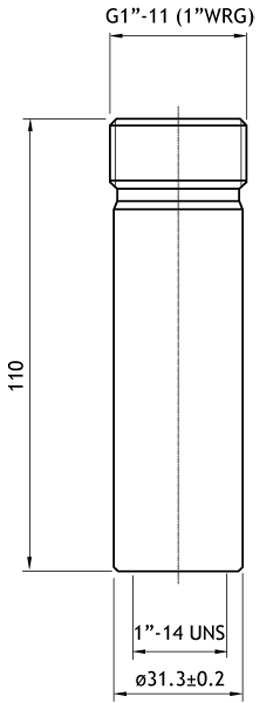

ADT

ADT-montering-280x

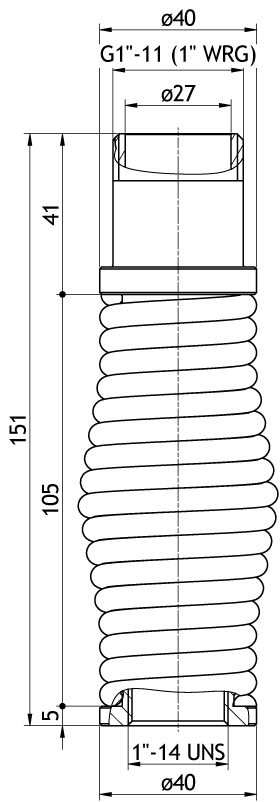

MBS

MBS-montering-280x
