MB 2000

Stainless Steel Angle Bracket for Fixation of GPS 2000 Antennas

Find Out More
Data Sheet
CE Certification

Other Files

MB 2000
Electrical
Model MB 2000
Application Angle bracket for antenna fixation
Mechanical
Materials Acid-proof, polished stainless-steel
Historic Brand Procom

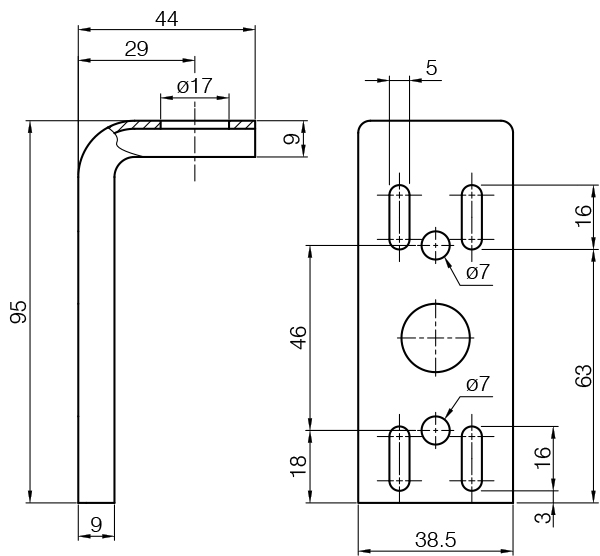

Dimensions See below
Weight Approx. 0.2 kg / 0.44 lb.
Mounting On vertical surfaces with rivets, bolts or screws.
On vertical tubing (10 – 40 mm dia.) with steel binders. On horizontal tubing (20 – 40 mm dia.) with U-bolt.

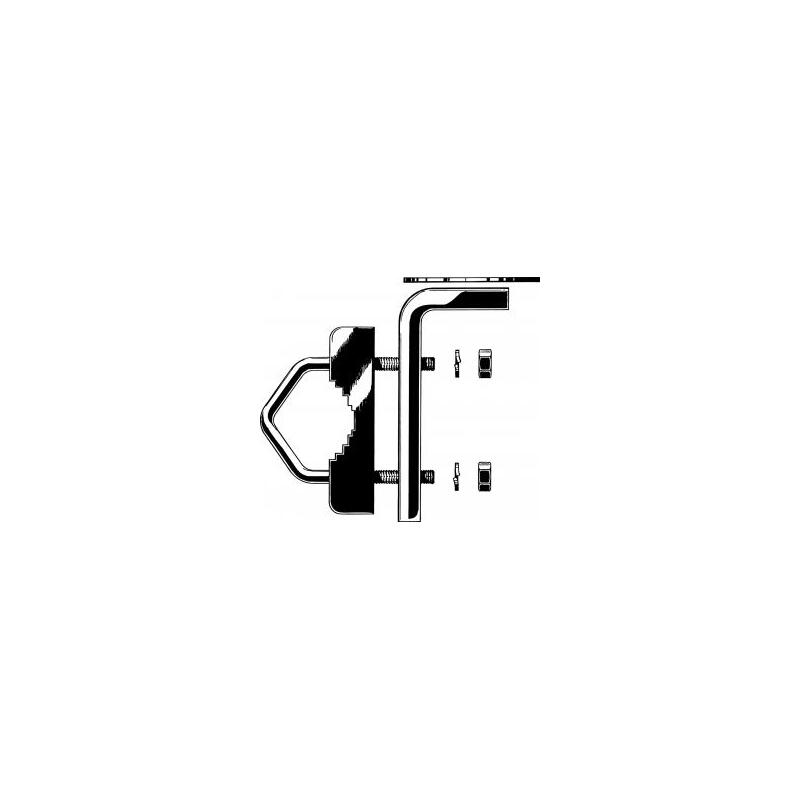

  • Angle bracket for fixation of GPS 2000 antennas.
  • The antenna is fixed to the mounting bracket by means of the supplied hexagon nut and serrated lock washer which is screwed onto the antenna connector.
  • Application 1: Fixation on vertical structures such as:
  • – ship’s masts, cabins and rails
  • – house roof ends.
  • (Fixation by means of screws, bolts or rivets (not supplied)).
  • Application 2: Fixation on vertical tubes (10 – 40 mm dia.)
  • (Fixation by means of steel binders (through the oblong holes)). (Not supplied).
  • Application 3: Fixation on horizontal tubes (20 – 40 mm dia.) such as:
  • – push and pulpit, rails and mast yards.
  • (Fixation by means of the supplied U-bolt fittings).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Stainless Steel Angle Bracket for Fixation of GPS 2000 Antennas 110000016

Login required

You need to be logged in into your account to view downloadable documents.

Please note

That an antenna should always be mounted as high and as unobstructed as possible.
Objects in the vicinity of the antenna, especially parallel metallic parts (other antennas, wires etc.) may have considerable degrading influence on the VSWR and the radiation pattern of the antenna.

Mounting Details
