MCA 1-Z/…

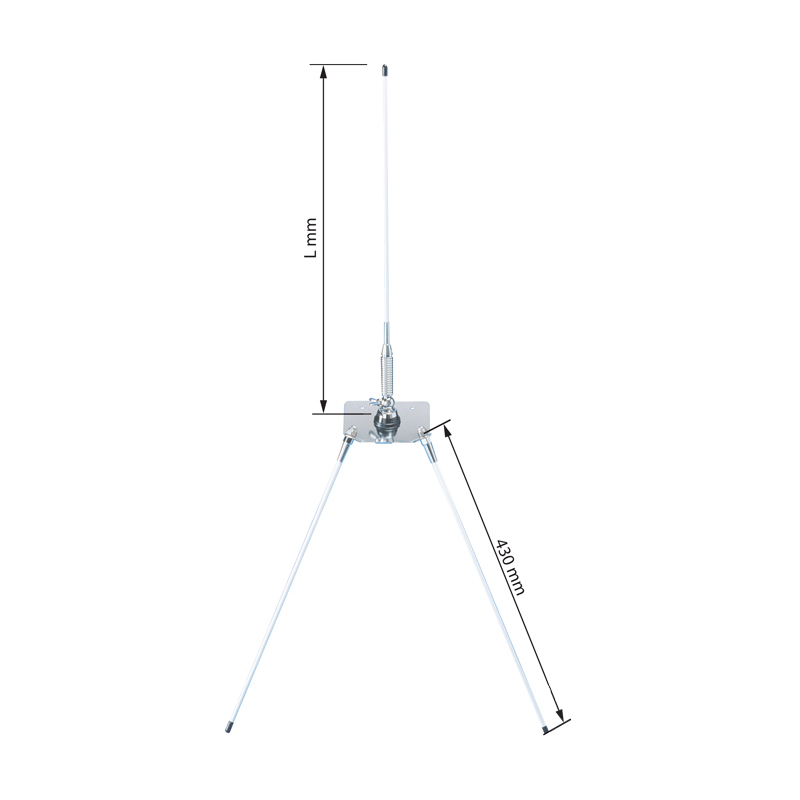

¼ λ Glass fiber Motor Cycle Antenna with Shock Spring for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MCA 1-Z/...

Quickly identify the correct ordering code.

MCA 1-Z/…
Electrical
Model MCA 1-Z/…
Frequency 136 – 174 MHz in two models
Antenna Type Ground-plane
Max. Input Power 150 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3:1 @ f.res.
Bandwidth ≥ 24 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Conical glass fiber
Chromed brass
Spring : Stainless steel
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Colour White / bright chrome
Historic Brand Amphenol Procom
Height Approx. 900 mm / 35.43 in.
Weight Approx. 0.5 kg / 1.10 lb.
Mounting On the back of a motor cycle
  • MCA 1-Z/… is a glass fiber ground-plane antenna type with 2 radials, ideal for a motor cycle.
  • Sturdy, general-purpose ¼ λ ground-plane antenna in professional quality.
  • Stainless steel Z-mount with ball-joint and hat screw whip-fastening system.
  • Simple mounting by the Z-mount with FME-connection (supplied without cable).

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MCA 1-Z/l

 130000674 136 – 160 MHz LENGTH: 470 mm

MCA 1-Z/h

 130000680 150 – 174 MHz LENGTH: 430 mm

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories
FME-CABLES
TYPE LENGTH
1 m FME 1 m
2 m FME 2 m
3 m FME 3 m
4 m FME 4 m
5 m FME 5 m
6 m FME 6 m
4 m FME-white 4 m white
6 m FME-white 6 m white
12 m FME-white 12 m white
18 m FME-white 18 m white
 FME-CONNECTORS
TYPE CONNECTOR
FME-FME FME-FME
FMEP Prolongation
FME-N N
FME-FSMA FSMA
FME-BNC BNC
FME-TNC TNC
FME-UHF UHF
FME-MUHF Mini-UHF
FME-EMUHF Elbow-MUHF
FME-EBNC Elbow-BNC
FME-ETNC Elbow-TNC
FME-SMA SMA

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.
