MCA 4-Z

¼ λ Glass fiber Motor Cycle Antenna with Shock Spring for the 80 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

MCA 4-Z
Electrical
Model MCA 4-Z
Frequency Tunable by cutting within : 66 – 88 MHz
(Factory tuned)
Antenna Type Ground-plane
Max. Input Power 150 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 1.3 @ f. res.
Bandwidth > 4 MHz @ VSWR < 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Conical glass fiber
Chromed brass
Spring : Stainless steel
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Colour White / bright chrome
Historic Brand Amphenol Procom
Height Approx. 1200 mm / 47.24 in.
Weight Approx. 0.5 kg / 1.10 lb.
Mounting On the rear side of a motor cycle

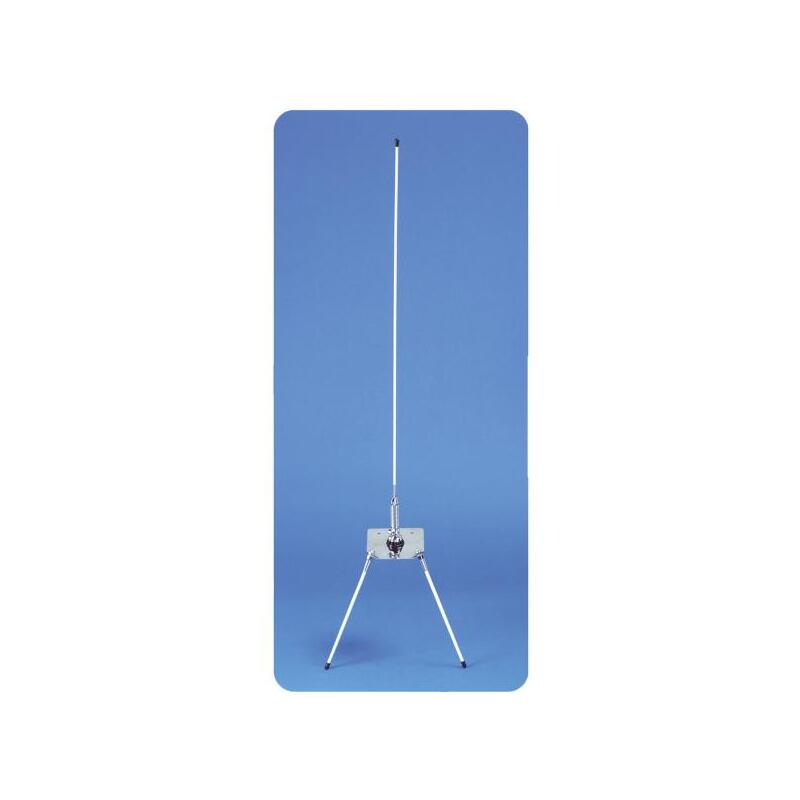

  • MCA 4-Z is a glass fiber ground-plane antenna type with 2 radials, ideal for a motor cycle.
  • Sturdy, general-purpose ¼ λ ground-plane antenna in professional quality.
  • Stainless steel Z-mount with ball-joint and hat screw whip-fastening system.
  • Simple mounting by the Z-mount with FME-connection (supplied without cable).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
¼ λ Glass fiber Motor Cycle Antenna with Shock Spring for the 80 MHz Band 130000676

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories
FME-CABLES
LENGTH TYPE NO.
1 m 1 m FME
2 m 2 m FME
3 m 3 m FME
4 m 4 m FME
5 m 5 m FME
6 m 6 m FME
4 m white 4 m FME-white
6 m white 6 m FME-white
12 m white 12 m FME-white
18 m white 18 m FME-white
FME-CONNECTORS
CONNECTOR ORDER NO.
FME-FME FME-FME
Prolongation FMEP
N FME-N
FSMA FME-FSMA
BNC FME-BNC
TNC FME.TNC
UHF FME-UHF
Mini-UHF FME-MUHF
Elbow-MUHF FME-EMUHF
Elbow-BNC FME-EBNC
Elbow-TNC FME-ETNC
SMA FME-SMA

For further information about other types of FME-cables please compare the cable data sheets under accessories in our catalogue.

Ordering Designations

When ordering, please state the required frequency (66-88 MHz).
