MCA 70/TETRA/…

¼ λ Motor Cycle Antenna for the TETRA Band

Find Out More
Data Sheet
CE Certification

Other Files

MCA 70/TETRA/...
Electrical
Model MCA 70/TETRA
Frequency 380 – 430 MHz
Antenna Type ¼ λ ground-plane
Max. Input Power 150 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3 @ f.res.
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip :
Sturdy, flexible rubber with cast-in multicore steel wire radiating element
Chromed brass
Mount :
Chromed brass
Weather- and shockproof plastics
Stainless steel AISI 316
Mounting plate : Stainless steel AISI 316
Colour Black / bright chrome
Historic Brand Amphenol Procom
Height Approx. 340 mm / 13.39 in.
Weight Approx. 0.38 kg / 0.84 lb.
Mounting On the rear side of a motor cycle

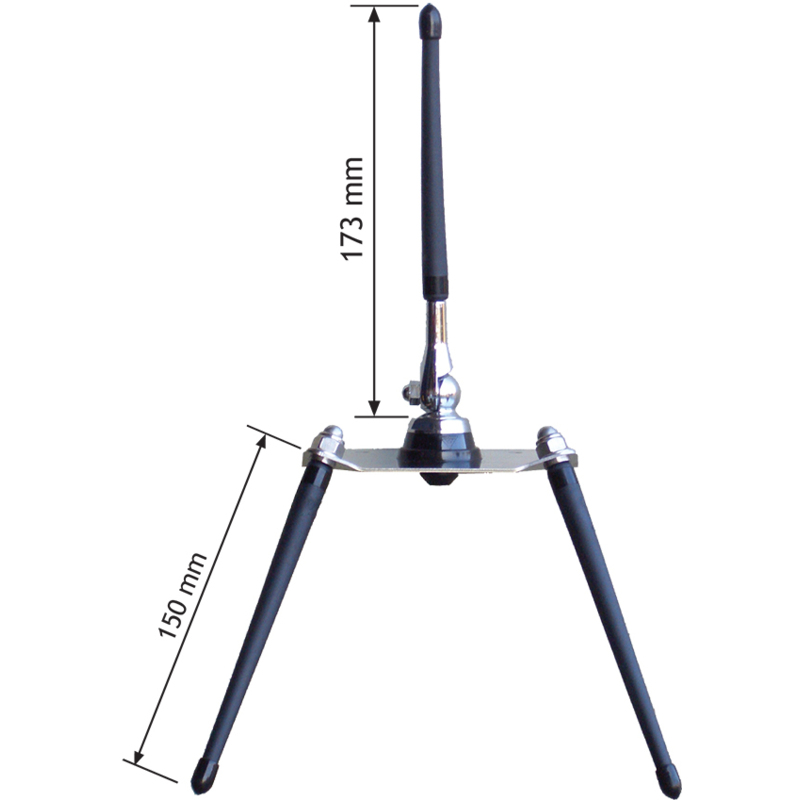

  • MCA 70/TETRA is a rubber ground-plane antenna type with 2 radials, ideal for a motor cycle.
  • Sturdy, general-purpose ¼ λ ground-plane antenna in professional quality.
  • Stainless steel Z-mount with ball-joint and hat screw whip-fastening system.
  • Simple mounting by the Z-mount with FME-connection (supplied without cable).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
¼ λ Motor Cycle Antenna for the TETRA Band 130000679

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories
FME-CABLES
TYPE PRODUCT NO.
1 m FME(f) 130000437
2 m FME(f) 130000447
3 m FME(f) 130000457
4 m FME(f) 130000466
5 m FME(f) 130000474
6 m FME(f) 130000483
4 m FME-white(f) 110000064
6 m FME-white(f) 110000066
12 m FME-white(f) 110000068
18 m FME-white(f) 110000069
FME-CONNECTORS
TYPE PRODUCT NO.
FME(f)-FME(f) 130000583
FME(m)-P(m)
(Prolongation)		 130000565
FME(m)-N(m) 130000571
FME(m)-FSMA
(Female-SMA)		 130000578
FME(m)-BNC(m) 130000566
FME(m)-TNC(m) 130000569
FME(m)-UHF(m) 130000572
FME(m)-MUHF(m)
(Mini-UHF)		 130000573
FME(m)-EMUHF(m)
(Elbow-MUHF)		 130000582
FME(m)-EBNC(m)
(Elbow-BNC)		 130000580
FME(m)-ETNC(m)
(Elbow-TNC)		 130000581
FME(m)-SMA(m) 130000577

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.

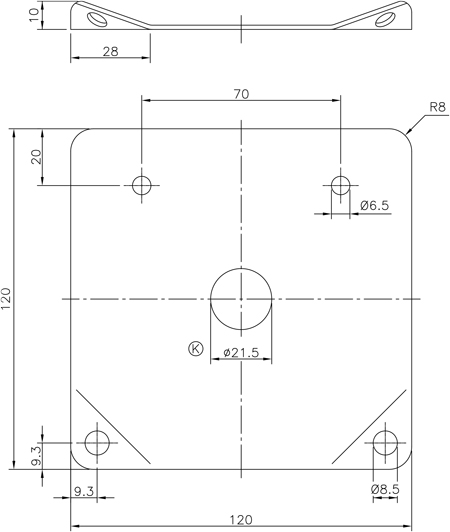

Mounting Details

All dimensions are given in mm.
