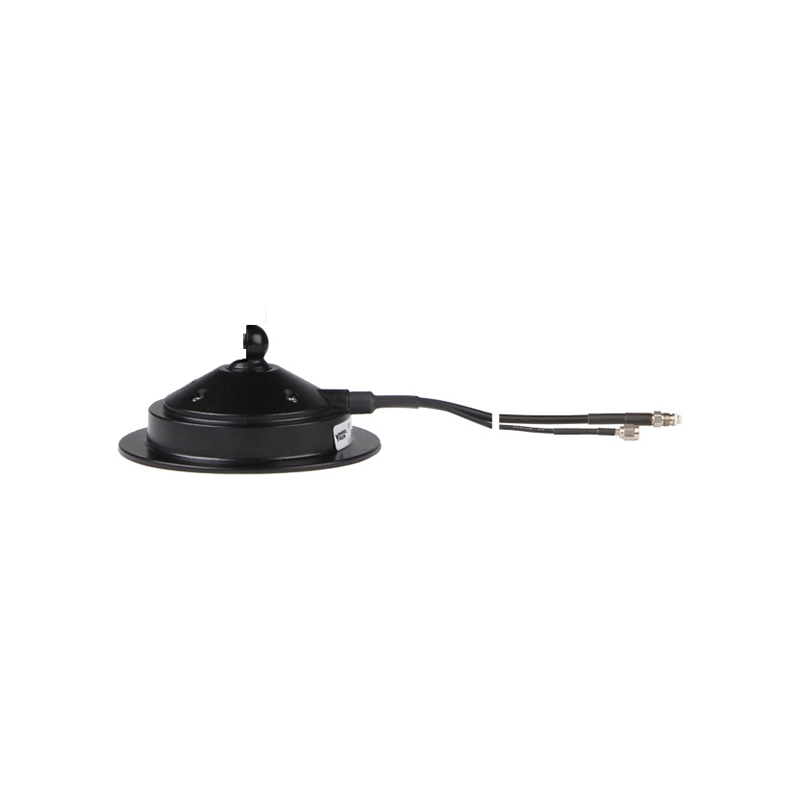

MG/GPS-Mount

Magnet Mount GPS Antenna with connection for external whips in VHF & UHF Bands

Find Out More
Data Sheet
CE Certification

Other Files

MG/GPS-Mount
Electrical
Model MG/GPS-Mount
Polarisation Vertical
Impedance 50 Ω
Environmental
Operating temperature range -35 °C to +75 °C
Mechanical
Compliance ECE R118.02 approved cables
Connection(s) FME(f) with 5 m RG 58 cable for VHF & UHF (other connectors like BNC(m) or TNC(m) can be made upon request)
SMA(m) with 5 m RG 174 cable for GPS
Materials Stainless steel
Black-chromed brass
Weather- and shockproof plastics
Colour Black
Historic Brand Amphenol Procom
Dimensions Total height : Approx. 63 mm / 2.52 in.
Diameter : 130 mm / 5.12 in.
Whip Connection Toggle joint (Hat screw with key)
Weight Approx. 0.9 kg / 1.98 lb.
Mounting Centre of vehicle roof for best omnidirectional coverage
Max. Car Speed 170 km/h
  • Heavy-duty magnetic mount with toggle joint for temporary use.
  • External antenna whip (not included) mounted on the magnetic base (MG) which includes antenna for Global Positioning System (GPS).
  • Provided with two 5m cables attached:
  • 5 m RG 58 cable with FME(f) connector for VHF & UHF Bands.
  • 5 m RG 174 cable with SMA(m) connector for GPS.
  • The whip is fixed on the mount using a “hat”-screw which is supplied with the mount and a special fastening key.
  • Built-in high-gain, low-noise amplifier.
  • 3 – 15 VDC supply.
  • DC supply via SMA(m)-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Magnet Mount GPS Antenna with connection for external whips in VHF & UHF Bands 132000158

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curves



Vertical Radiation Pattern

Installation

MG mount maal GB 600xl

The magnetic mount should be mounted in the middle of the vehicle roof or rear locker for the best omnidirectional coverage.
