MH 1-XR, MH 1-XGR, MH 1-CXR, MH 1-MMR

¼ λ Mobile Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MH 1-XR, MH 1-XGR, MH 1-CXR, MH 1-MMR

Quickly identify the correct ordering code.

MH 1-XR, MH 1-XGR, MH 1-CXR, MH 1-MMR
Electrical
Model MH 1-XR, MH 1-XGR, MH 1-CXR, MH 1-MMR
Frequency Tunable by cutting within : 144…175 MHz
(Also applicable : 175…480 MHz)
Antenna Type Mobile whip antenna
Max. Input Power 150 W
Max. Power for models incl. GPS, is reduced to 30 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3 @ f. res.
Bandwidth ≥ 15 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed Conical stainless steel
Black-chromed brass
Mount : Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type
Hole MountMagnetic Mount
Height Approx. 550 mm / 21.65 in.
Weight X-version : Approx. 70 g
XP4-version : Approx. 210 g
CX-version : Approx. 70 g
CXP4-version : Approx. 210 g
XG-version : Approx. 90 g
XGP4-version : Approx. 230 g
MM-version : Approx. 310 g
  • Black-chromed, conical stainless steel whip.
  • Elegant transition between whip and mounting surface due to slim-line mount.
  • 30° tiltable whip.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong), XG-mount (oblong with GPS), CX-mount (circular) and MM-mount (magnetic).
  • Choose between four connection possibilities:
  • X-mount, CX-mount, MM-mount: FME-connection (supplied without cable).
  • XP4-mount, CXP4-mount: Permanently attached 4 m cable terminated with FME-connector.
  • XG-Combi mount: FME-connection and GPS (supplied without cable).
  • XGP4-Combi mount: Permanently attached 4 m cable terminated with FME-connector for whip and 0.15 m RG 178 with MFME for GPS.
  • Easily removable whip for car wash.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular Polarization (RHCP).
  • 2.85 V – 5 V supply voltage (typical 3 V).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

MH 1-XR

 130000708 X-mount (oblong) with FME-system

MH 1-XP4R

 130000710 XP4-mount with 4 m cable and FME-connector (oblong)

MH 1-XGR

 130002059 XG-Combi mount (oblong) with FME-system and GPS

MH 1-XGP4R

 130002063 XGP4-Combi mount with 4 m cable and FME-connector (oblong) and GPS

MH 1-CXR

 130000709 CX-mount with FME-system (circular)

MH 1-CXP4R

 130000711 CXP4-mount with 4 m cable and FME-connector (circular)

MH 1-MMR

 130000707 MM-mount with FME-system (magnetic)

Login required

You need to be logged in into your account to view downloadable documents.

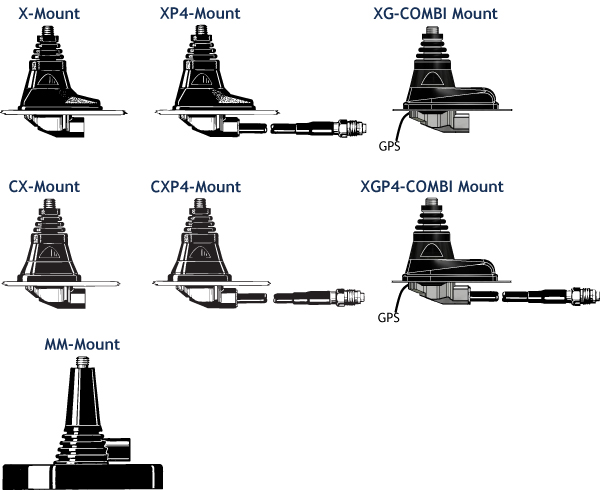

The whip is compatible with all below mounts

X-XP4-CX-CXP4-XG-MM-Mount-GB

Installation and Assembly Instructions

Please refer to the data sheet of each individual mount to find the installation and assembly instructions.

PLEASE NOTE

For safety reasons: Do not operate the MiniMag with antenna whips longer than 60 cm. Please respect the maximum car speed limit corresponding to a particular whip length as appears from the above curve.

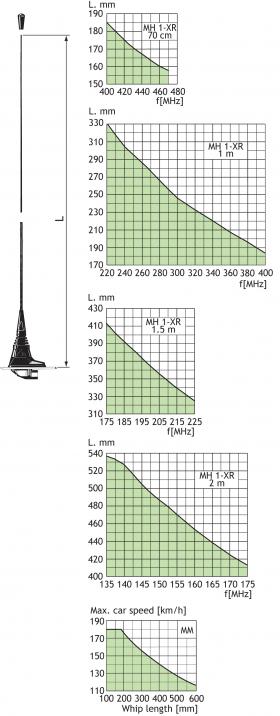

Tuning

The antenna should always be tuned using an VSWR-meter.
The cutting diagrams below serve as a guide for this procedure.
